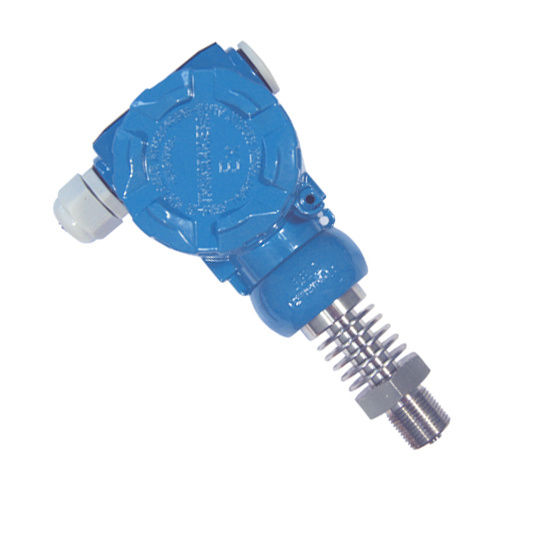

Anti High Temperature Resistant Pressure Transmitter (PCM400T)

Name: Anti High Temperature Resistant Pressure Transmitter (PCM400T)
Brand: all-electronics-online.com
SKU: 732918832
Availability: InStock
Rating: 4.3 (69 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM400T
Pressure Reference:	Gauge Absolute Sealed Gauge
Overpressure:	200%F.S.
Output:	4-20mA 1-5V 0-5V 0.5-4.5V 0-10V
Supply:	24VDC 12VDC 5VDC
Operating Temp.:	-20ºC - 85ºC
Storage Temp.:	-40ºC - 300ºC
Temp. Drift:	±1.5%F.S.Max.(@-20ºC - 85ºC)
Mechanical Vibration:	20g(20 to 5000Hz)
Housing Material:	Low Copper Aluminum Alloy
Diaphragm Material:	316L
Accuracy Grade:	±0.5%F.S. ±0.3%F.S.
Pressure Range:	-100kpa...0~10kpa...100MPa

Product Description

High temperature resistant pressure chip employed

Designed with heat exchange plate, high temperature resistant, applicable medium temperature up to 300 ºC

Solid well sealed aluminum alloy junction box employed, convenient for outdoor installation and use

Low, medium and high pressure ranges provided

LCD option

Full welded structure for the sensor and pressure interface, shock resistant and vibration resistant

Intrinsically safe explosion-proof option

PCM400T High Temperature Pressure Transmitter uses high temperature resistant pressure sensor as the signal measuring element. The pressure of measured medium is transmitted to the sensor through heat dissipation structure. The high precision signal processing circuit is located inside the stainless steel shell, converting the output signal to standard output signal. The product has passed rigorous tests and aging screening. The performance is stable and reliable. The product is widely applied in industrial field, food and medical equipment, power generation, machinery manufacturing, automobile manufacturing, shipbuilding, petrochemical, metallurgy, steam and heat exchange field.

Pressure range
Pressure range	-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Overpressure	200%F.S.
Output signal
Output	4 to 20mA \| 1 to 5V \| 0 to 5V \| 0.5 to 4.5V \| 0 to 10V
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.5%F.S. \| ±0.3%F.S.
Supply	24VDC \| 12VDC \| 5VDC
Operating temp.	-20ºC - 85ºC
Storage temp.	-40ºC - 300ºC
Zero temp. coefficient	±1.5%F.S.max.(@-20ºC - 85ºC)
Span temp. coefficient	±1.5%F.S.max.(@-20ºC - 85ºC)
Pressure connection	see last page "how to order"
Mechanical vibration	20g(20 to 5000HZ)
Shock	100g(11ms)
Insulation	100MΩ/250VDC
Response time	≤1ms(up to 90%FS)
Long term stability	≤0.2%F.S.S/year
Protection	IP65
Material	Low copper aluminum alloy for shell, 316L for isolation diaphragm
Medium compatibility	All kinds of media compatible with 316L stainless steel

Electrical connection

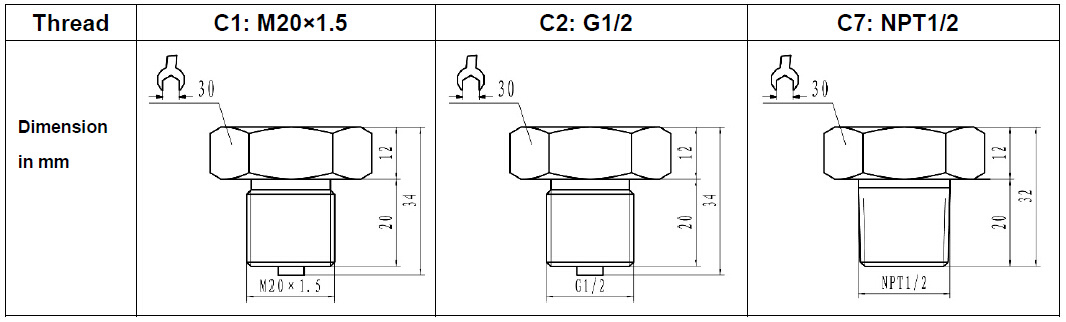

Pressure port

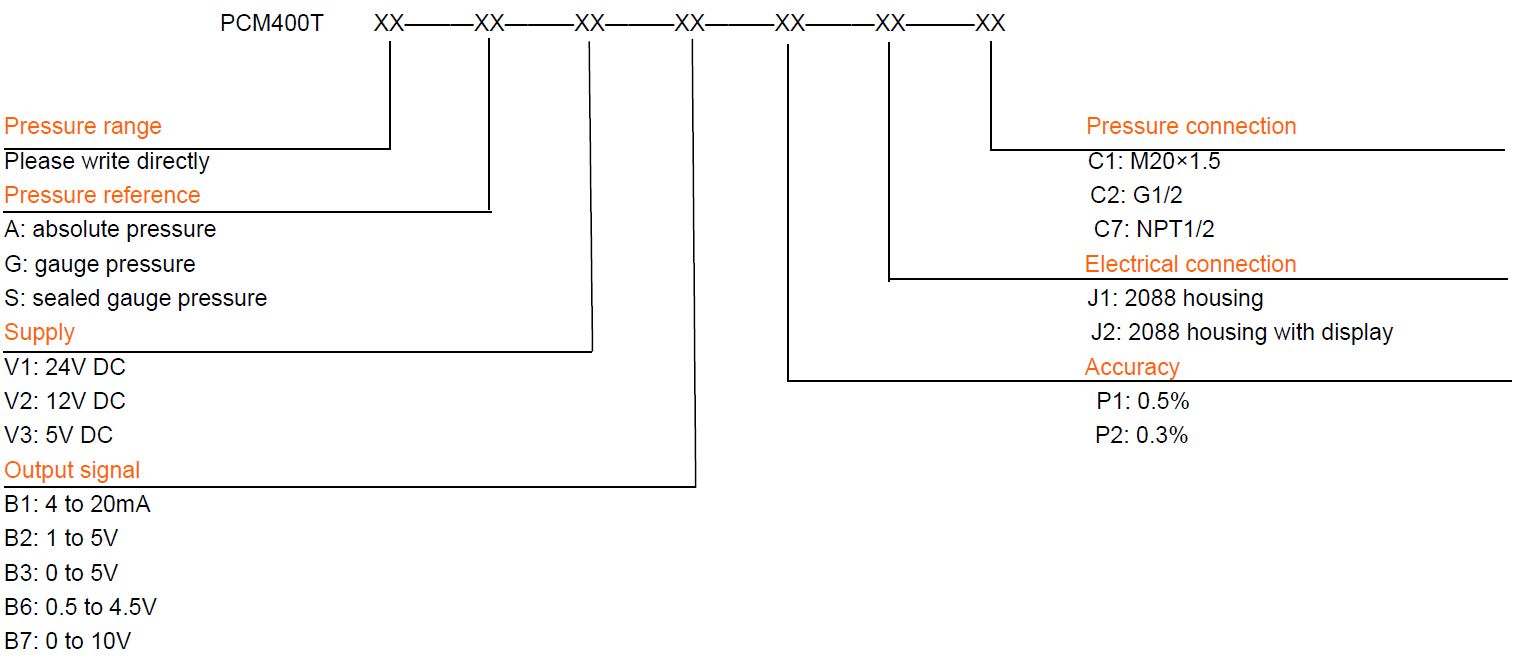

How to order
