Anti-Pollution Suspension Insulator (Double-Shed)

Anti-Pollution Suspension Insulator (Double-Shed)
Price: Negotiable
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clicks: 19 Times
Material: Porcelain
Type: Suspension Insulator
Application: Insulators

Product Description

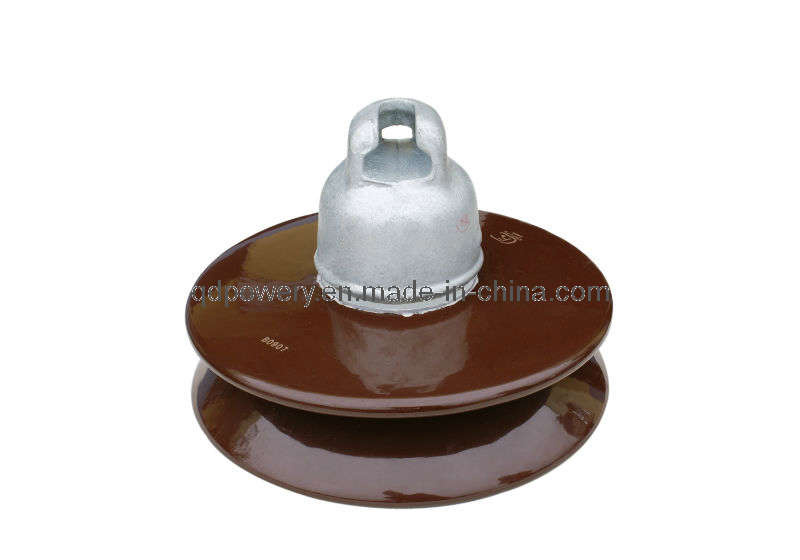

Anti-Pollution Suspension Insulator(Double-Shed)

IEC type: U70BEL, U70BLP, U70BL/ELP, U70BL, U100BL, U100BLP, U120BP, U160BM, U160BM/LP, U160BMP, U160BLP, U210BP, U240BP. U300BP

Electronical Mechanical Failing Load: 70KN, 100KN, 120KN, 160KN, 210KN, 240KN, 300KN.

Connected fitting type: Ball & socket type; Clevis & tongue type

Glaze: Grown/White/Grey/Blue
Type XWP-160
  Main Dimensions(mm) D 300
H 155
Creepage Distance 400
Power-frequency Puncture Voltage(kv) 120
Power frequency withstand voltage Power-frequency Dry(kv) 80
Wet(kv) 45
Radio-Influence-voltage Data Test Voltage to ground(kv) 10
Maximum RIV at 1000kHz(uV) 50
Mass per 100 pcs  (kg) 880
Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
