Anti-Pollution Suspension Insulator

Name: Anti-Pollution Suspension Insulator
Brand: all-electronics-online.com
SKU: 673766932
Availability: InStock
Rating: 4.3 (121 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Brown/White
Model Number:	U100blp
Material:	Porcelain
Type:	Suspension Insulator
Application:	Insulators

Product Description

Competitive Price, Good Quality, Delivery In Time, Satisfactory Service

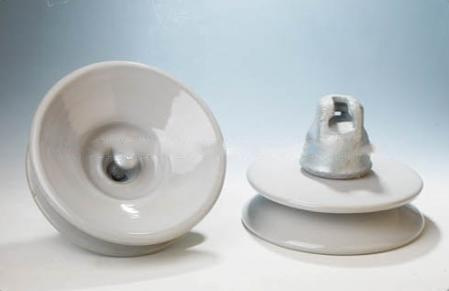

Anti-Pollution Suspension Porcelain Insulator

The structure of disc suspension insulators enables them form the insulator string by fitting into themselves one another as per voltage requirement and connecting with the conductors and cable. It is considered as an conductor insulator type.
Connected fitting type: Ball & socket type; Clevis & tongue type
Strength can be 40 KN, 45KN, 60KN, 70KN, 80KN, 100KN, 110KN, 120 KN, 125KN, 160KN, 210KN, 300KN
Main type:
Standard suspension insulator:
ANSI type: 52-1, 52-2, 52-3, 52-4, 52-5, 52-6, 52-8, 52-9 according to ANSI C29.2
IEC type: U70BL, U70BS, U100B, U120B, U160B, U210B, U300B according to IEC383, BS137
Fog Type Anti-pollution suspension Insulators
Double Shed Anti-pollution Insulators

Type		XHP-100
Class		U100BLP
Unit spacing (H) mm		146
Nominal diameter (D) mm		255/280
Nominal creepage distance mm		432/450
Rated E& M failing load KN		100
Routine tensile load KN		50
Coupling size		16A/16B
Impact strength N. m		7
Power frequency withstand voltage	Wet KV	45
	Dry KV	80
Dry lightning impulse withstand voltage KV		120
Power frequency puncture voltage KV		120
Radio interference voltage	Test voltage to groud KV	10
	Max. RIV at 1MHZ uv	50
Mass per 100pcs kg		760/790
Applicable standard: GB IEC AS BS

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
