| Prod Model: |

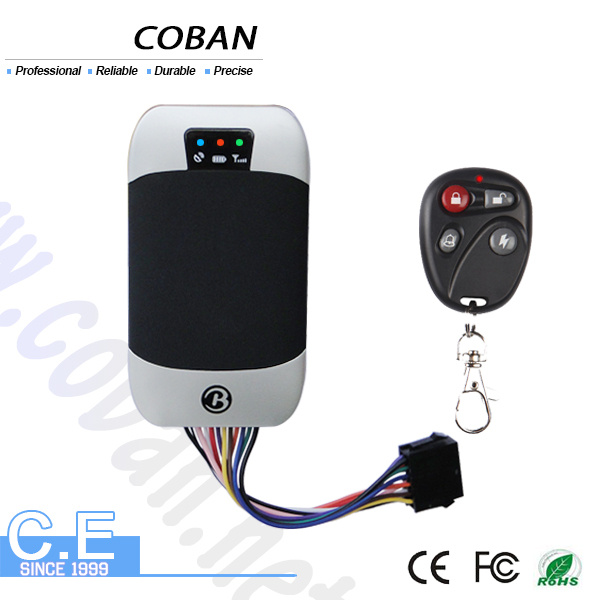

Anti Theft Car GPS Tracker GPS303F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
50g |
| Car Security: |
Cut off Engine, Acc Working Alarm |
| Back Up Battery: |
Chargeable 3.7V 800mAh Li-ion Battery |
| Easy To Install: |
Internal GPS&GSM Antenna |
| Frequency: |
850/900/1800/1900MHz |
| Dual Tracking: |
GSM Lbs(Location Based Service) |
| Size: |
75*50*24mm |
| Shipment Terms: |
by Express/Air |
| Delivery Time: |
Within 3 Working Days |
| Hight GPS Sensitivity: |
-159dBm |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Position and GSM Transmit |
| Port Number: |
20 |
| Model: |
Anti Theft Car GPS Tracker GPS303f |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description
Wholesale cheaper 850/900/1800/1900Mhz gps motorcycle tracking device ACC, cut off oil and power function
Model: GPS 303
1. Summary
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
2. Features
1. Handheld and Vehicle purpose.
2. Built-in GSM, GPS antenna, compact, elegant appearance.
3. Support GPS and LBS (Location based service) double tracking solutions.
4. Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
5. Support configure the settings remotely
6. Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
This device is divided into the following four types according to the function parts:
Type A: Handheld, simple function, tracking, monitoring, with home charger, no external hardness.
Type B: Simple car solution with 3 PIN harness for 12/24V power supply & ACC detection, tracking and monitor.
Type C: Fully functional vehicle with 12 PIN harness for ACC, door, cut off oil and power, Support fuel measurement
Type D: Add remote controller to ARM & DISARM on the basis of type C.
3. Fuctions
-Auto track continuously
-Automatic update positions of vehicle turns
-Location based service (LBS)
-Voice Monitor
-Low battery alarm
-External Power off alarm (Suitable for B, C and D model)
-GPS blind Spot alert
-SOS
-Geo-fence
-Multi-area management
-Movement alarm
-Over speed alarm
-ACC working alarm (Option, for model B, C, D)
- Fuel level measurement, fuel theft and leak alert (Option, for model C, D)
-Remote cut off the Oil and Power System (Option, for model C, D)
-Function of Remote Controller (Option, for model D ONLY)
-Check the Vehicle State
-Reset Hardware
-Sleep Mode(save battery mode)
-TCP / UDP Switch
-Configure parameters by USB
-GPRS setting/tracking
5. Multiple Tracking Ways:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: Simple & useful real time tracking via our website, demo ID: Demo, password: 8888
It is ok to track 10, 000PCS units in platform at one time!
*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link
| Content | specifications |
| DIM. | 75*50*24mm |
| Weight | 75g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| | |
| Operating Current | Sleep Current | 4mA± 1mA |
| GSM operating Current | 54mA± 3mA |
| GPRS Current(data transfer) | 60mA± 5mA |
| Battery | Chargeable 3.7V 1000mAh Li-ion battery |
| Charge current | 1.2A± 0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
