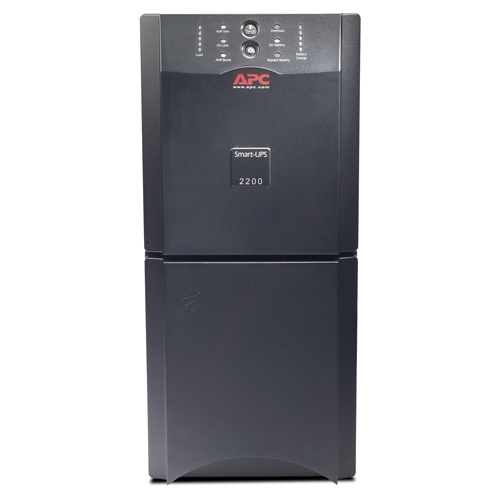

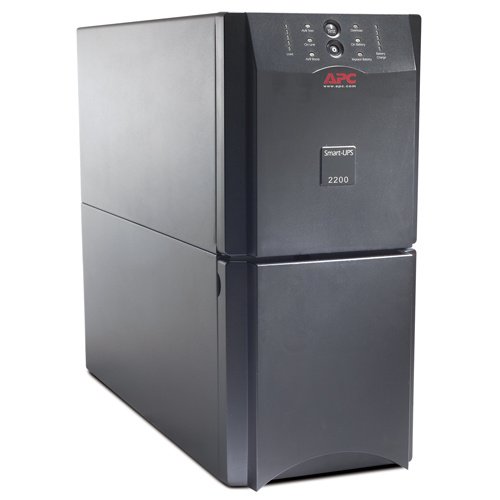

Name: APC 2200va Smart UPS Powe Supply Sua2200ich
Brand: all-electronics-online.com
SKU: 816282975
Availability: InStock
Rating: 4.5 (88 reviews)

Price:	US $ 642-695/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	sua2200ich
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Brand:	APC

Product Description

APC Smart-UPS 2200VA USB & Serial 230V

Output

Output power capacity
1.98 KWatts / 2.2 kVA
Max Configurable Power (Watts)
1.98 KWatts / 2.2 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
96.0 %
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Other Output Voltages
220, 240
Topology
Line Interactive
Waveform type
Sine wave

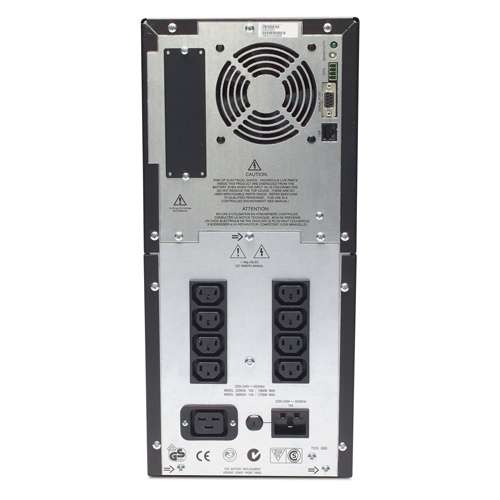

Output Connections
(8) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Transfer Time
2ms

Input

Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Input voltage range for main operations
160 - 285V
Input voltage adjustable range for mains operation
151 - 302V
Number of Power Cords
1

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement battery RBC 55
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
816

Physical

Maximum height
432mm , 43.2cm
Maximum width
196mm , 19.6cm
Maximun depth
544mm , 54.4cm
Net weight
50.91kg
Shipping weight
60.91kg
Shipping height
559mm , 55.9cm
Shipping width
381mm , 38.1cm
Shipping depth
762mm , 76.2cm
Color
Black
Units per pallet
3.0

We supply UPS power supplier and batteries of APC, Emerson, Santak, Panosonic, CSB, YUASA, LEOCH and etc. With high quality, favorable price, thinkful service, we are trying utmost to give you a pleasant and satisfactory experience of contacting with us.

Our products has been shipped to Russian, USA, Malaysia, Arab, India and etc, and also got good positive feedback from customers.

We sincerely wish to work business with the customers all over the world. And we make sure that will offer the satisfactory products with reasonal price and give nice service for you.
