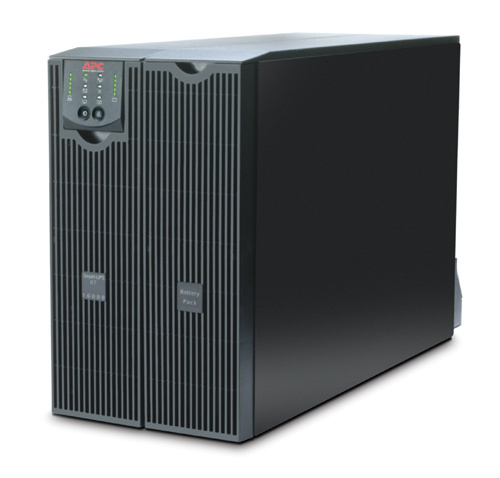

APC 230V 10kVA UPS Power Supply Surt10000uxich

Name: APC 230V 10kVA UPS Power Supply Surt10000uxich
Brand: all-electronics-online.com
SKU: 817156495
Availability: InStock
Rating: 5 (98 reviews)

Price:	US $ 3350-3650/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SURT10000UXICH
Weight:	60.0kg
Voltage:	230V
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Brand:	APC

Product Description

APC Smart-UPS RT 10KVA 230V,6U,no battery

SURT10000UXICH

Output

Output power capacity
8 KWatts / 10 kVA
Max Configurable Power (Watts)
8 KWatts /10 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
96.0 %
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Other Output Voltages
220, 240
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(8) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Transfer Time
2ms

Input

Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Input voltage range for main operations
160 - 285V
Input voltage adjustable range for mains operation
151 - 302V
Number of Power Cord
1

Physical

Maximum height
432mm , 43.2cm
Maximum width
263196mm , 26.3cm
Maximun depth
723mm , 72.3cm
Net weight
41.82kg
Shipping weight
60.0kg
Shipping height
552mm , 55.2cm
Shipping width
597mm , 59.7cm
Shipping depth
991mm , 99.1cm
Color
Black
Units per pallet
2.0
