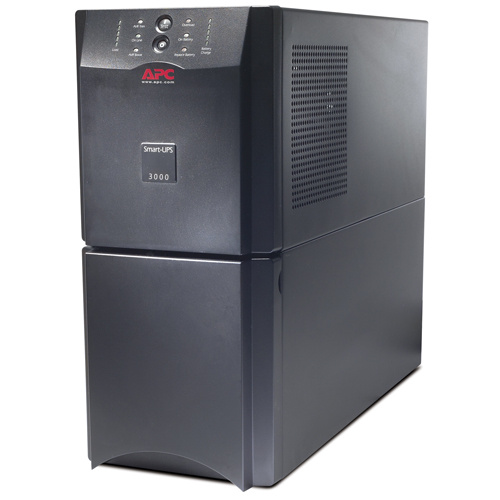

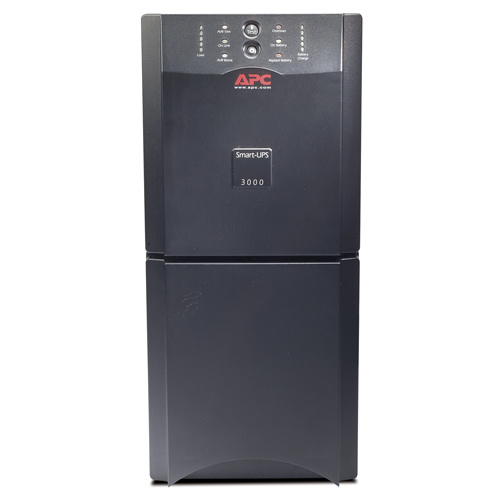

APC 3kVA 2.7kw UPS Power Supply Sua3000ich

Name: APC 3kVA 2.7kw UPS Power Supply Sua3000ich
Brand: all-electronics-online.com
SKU: 816307655
Availability: InStock
Rating: 4.3 (70 reviews)

Price:	US $ 686-716/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SUA3000ICH
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Brand:	APC

Product Description

APC Smart-UPS 3000VA 2700 W 230V UPS Power supply

SUA3000ICH

Output

Output power capacity
2.7kWatts / 3.0 kVA
Max Configurable Power (Watts)
2.7kWatts / 3.0 kVA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform type
Sine wave

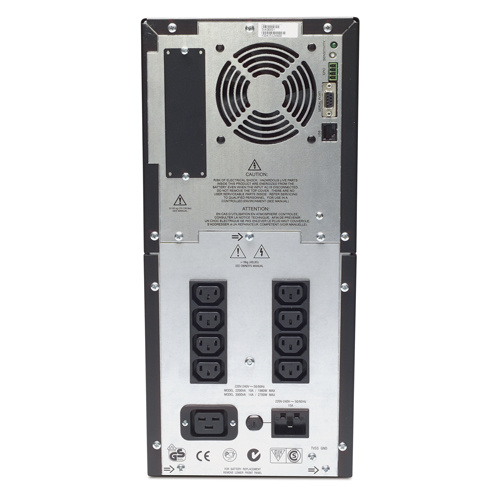

Output Connections
(1) IEC 320 C19
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Transfer Time
2ms typical
Bypass
Optional External Bypass

Input

Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
160 - 286V
Input voltage adjustable range for mains operation
151 - 302V

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
RBC55
Expected Battery Life (years)
3 - 5
RBC Quantity
1

Physical

Maximum height
432mm , 43.2cm
Maximum width
196mm , 19.6cm
Maximun depth
544mm , 54.4cm
Net weight
55.91kg
Shipping weight
64.551kg
Shipping height
559mm , 55.9cm
Shipping width
381mm , 38.1cm
Shipping depth
762mm , 76.2cm
Color
Black
Units per pallet
3.0
