Product Description

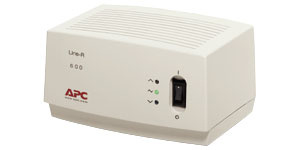

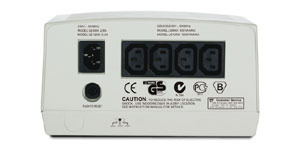

Line-R 600VA Automatic Voltage Regulator

Automatic voltage regulation for protection against brownouts and overvoltages.

LE600I



Output

• Output power capacity
  600Watts / 600VA
• Max Configurable Power (Watts)
  600Watts / 600VA
• Nominal Output Voltage
  230V

Input

• Nominal Input Voltage
  230V
• Input frequency
  47 - 63 Hz
• Input Connections
  IEC-320 C14
• Input voltage range for main operations
  160 - 290VV

Surge Protection and Filtering

• Surge energy rating
  300Joules

Physical

• Maximum Height
  116mm , 11.6cm
• Maximum Width
  214mm , 21.4cm
• Maximum Depth
  141mm , 14.1cm
• Net Weight
  3.1kg
• Shipping weight
  3.4kg
• Shipping Height
  175mm , 17.5cm
• Shipping Width
  273mm , 27.3cm
• Shipping Depth
  207mm , 20.7cm
• Color
  Beige
• Master Carton Units
  4.0
• Units per Pallet
  64.0
• SCC Codes
  1073130419789 5

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  5 - 95 %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -25 - 65 °C
• Storage Relative Humidity
  5 - 95 %
• Storage Elevation
  0-15000meters
