| Prod Model: |
APC 1000W/2000W/3000W/4000W/5000W/6000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
12VDC/24VDC/48VDC |
| Output Voltage: |
120VAC/230VAC |
| Output Frequency: |
50HZ/60HZ |
| Output Current: |
15A-100A |
| Size: |
598*218*179mm |
| Weight: |
45KG |
Product Description

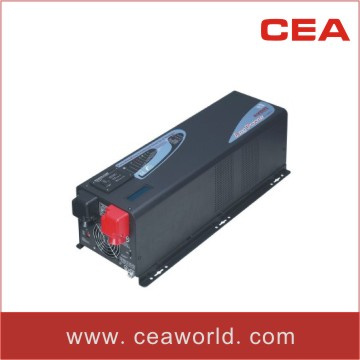

APC Series Pure Sine Wave Power Inverter with Charger
APC Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a conversion efficiency of 88%.
It is one of the most advanced inverter with chargers in the market today.
Advantages:
1. Corrected power factor
2. Sophisticated multi-stage charging
3. Pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment.
APC Inverter with Solar Changer Features
On Inverter
1. High overload ability up to 300% rated power(20 sec)
2. Low voltage trip selectable(9.5V/10V or 10V/10.5V), extracting max power from various batteries with
Different protections
3. Low quiescent current, power saver mode to reduce power consumption to 10W(3s sensing cycle)/3W
(30s sensing cycle)*
On Battery charger
1.3-step intelligent battery charging
2.8 pre set battery type selector plus de-sulphation for totally flat batteries
3. Powerful charge rate up to 90Amp**, selectable from 0%-100%
4. PFC(Power Factor Correction) for charger, less power consumption than conventional units
On Transfer
1.10 ms typical transfer time between battery and AC, guarantees power continuity
2.15s delay before transfer when AC resumes, extra protection for loads when used with generator
3. Input AC voltage range selectable(184-253V or 154-253V), for different kinds of loads
4.30A/40A through current ability
5. Allows start up and through power with depleted batteries
6. Output voltage regulation optional(230V/120V± 10%)***
On Remote control & other features
1. Ability to switch the unit on/off, select/deselect power saver mode
2.17 alarms/warnings, informative for easier operation and trouble-shooting
3. LCD status display available
4. Battery/AC priority switch available for off grid solar/wind system
5. USB communication port available
6. Solar charger controller available****
7. CE Certificated
*For 1KW one **For some models ***For APS Series ****For APV Series
