Apdm IEC Standard 630A LV Cut out Fuse Holder

Name: Apdm IEC Standard 630A LV Cut out Fuse Holder
Brand: all-electronics-online.com
SKU: 833434335
Availability: InStock
Rating: 4.5 (71 reviews)

Price:	US $ 20-22/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	APDM 630
Voltage:	500V
Frequency:	50Hz
Operational Current With Fuse:	100-630A
Insulation Level:	1000V
Installation:	Pole Mounted
Size Of Fuse:	Nh1,Nh2,Nh3
Fusing Speed:	Nh1,Nh2,Nh3
Brand:	Smico

Product Description

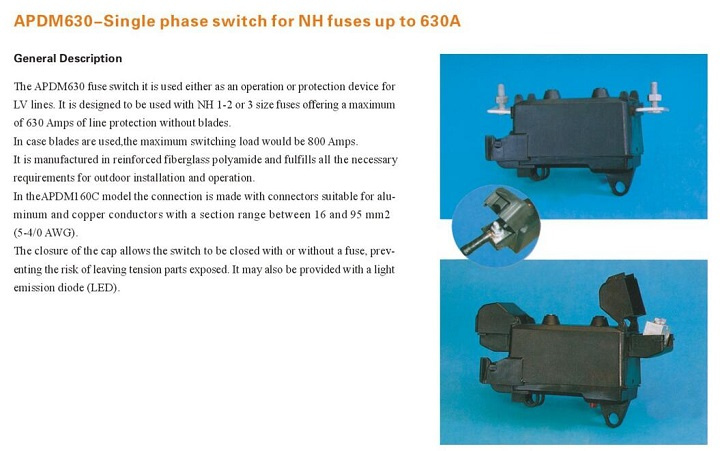

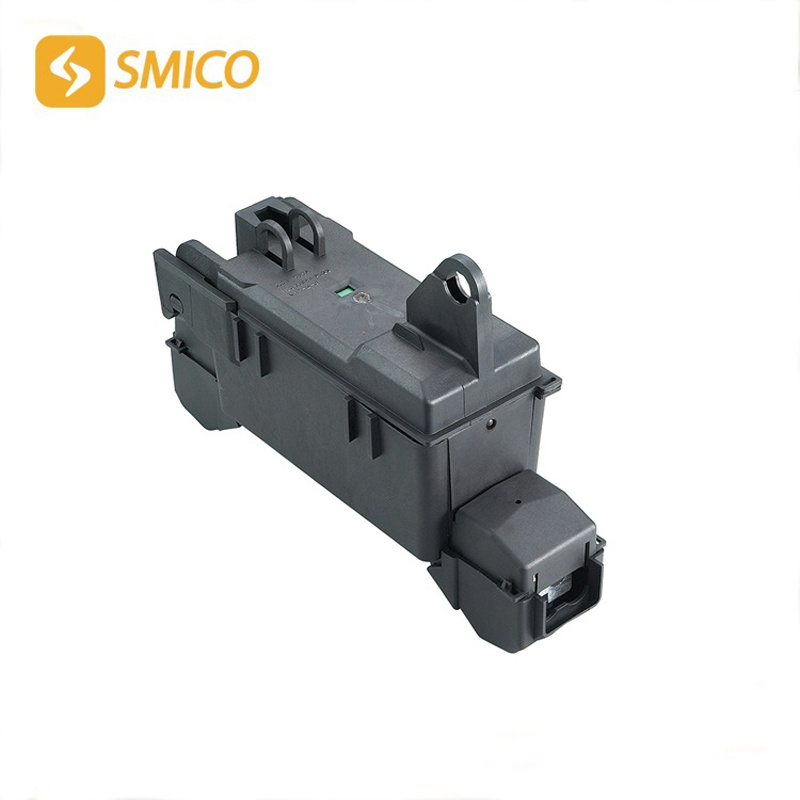

APDM IEC Standard 630A LV Cut Out Fuse Holder

The basic function of 630A Fuse Switch Disconnector is suitable for NH1,NH2 or NH3 fuse link, to protect and disconnector a network during faults and is specially designed for on-load switch. The switch offers a reliable medium for disconnector & protection of fully insulated open wire network. The fuse switch is versatile and is ideally suited for mountion directly to poles, transformer & cross arms.

voltage	500V
insulation level	1000V
frequency	50/60HZ
Operational current with fuse	630A
Operational current with blades	800A
Installation category	AC22
Interruption capacity	100KA
Minimum mechanical life	1000
Weight	1.8kg
Protection range	IP23

Features:
1. Designed for full load switching with fuse links of disconnector blades upto a rated current.

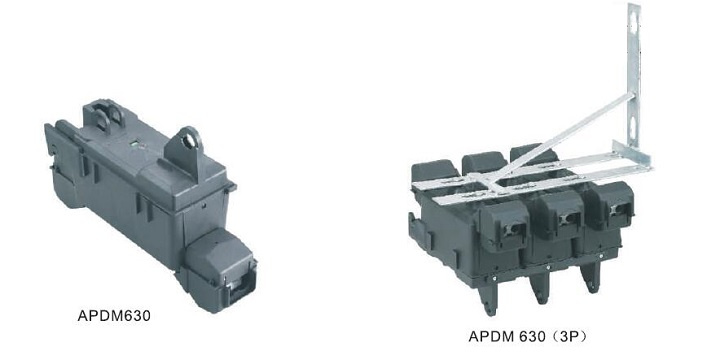

2. Mounting facility and unique modular design allowing one, two, three or more switches to be installed together to meet SP. TP or TPN system requirements.
3. Fully insulated made from corrosion proof, impact resistant, weather & UV resistant glass fiber reinforced polymide compound with high gladd content suitable for consistent performance under adverse climatic conditions.
4. The upper housing of the switch is hinged to the lower body and can be withdrawn by the insulated operation rod thereby enabling changing of fuse from ground level
5. Flexibility of linking a series of flaps for simultaneous operation.
6. The contacts, made up of ETP grade copper -duy plated are rigidly mounted in the housing independentof the terminal bolts. Single incoming & Double outgoing termination is provided in standard version.
7. Electrical & Mechanical fuse indicators are provided to show status of blown fuse.

Zhejiang Smico Electric Power Equipment Co., Ltd. Located in Liushi Town, Yueqing City, the China Electrical City. Have conveniently traffic 25km respectively from Wenzhou airport and railway station, and 5km from 104 national road freeway.

SMICO CONNECTOR is a leading professional manufacturer specialized in heavy duty connector, electric power fittings, switches and so on. SMICO connectors are suited for the hardest requirements in industrial environmenont. SMICO connector has been widely used in Automatic, machine made, power and equipment industries. SMICO connector is in conformance with the standard DIN 5510-2 and EN 61984.

As we strive to hold on our promise of "Human Oriented, Technology Advanced", we make hard effort to increase our global market presence. We strictly produce the goods accordance with the ISO9001, and most of for our products have the CE and CB certificate.

We will improve ourselves all the time and sincerely invite you who interested in our products to develop the business together. We are always your electrical friends.
