| Prod Model: |

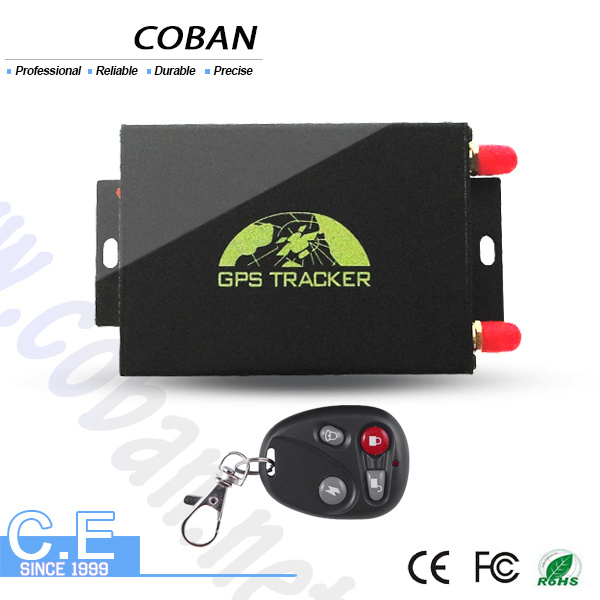

Vehicle GPS Tracker TK105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year GPS Tracker |
| Certificate: |
Ce FCC Coban GPS Tracker |
| Weight: |
170g |
| Delivery Time: |
1-3 Working Days |
| New Features: |
Speed Limiter, Engine Cut, RFID Camera |
| Anti Theft Car Tracking: |
Shut Engine off, Lock/Unlock Car Door |
| Applying Directions: |
Vehicle Fleet/Logistics/Vehicle Rental (12 to 24V) |
| Alarms Under Arm State: |
Door Alarm, Acc Alarm, Shock Sensor Alarm, Photogr |
| Speed Limiter: |
Yes |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
GPS105A |
| Brand: |
Coban |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description
apps Vehicle GPS Tracker with Speed Governor and Kilometrage Tk105-Location memory
-cut engine
-camera
-fuel check sensor alarm
Description:
It is based on GSM/GPRS (850/900/1, 800/1, 900MHz) wireless telecommunication internet and GPS satellite global position system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms, photograph, fuel&temperature detection and tracking in its entirety.
1.Track by multiple tracking 4 ways: 1. SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2. Get absolute street address by SMS
3. Optional web server www. Gpstrackerxy. COM
( user ID demo, password 8888)4. Android IOS APP Tracking
2.Basic functions: * Location based service (LBS) if the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the location via GSM network.
* Get location in absolute street address
*Show location directly on mobile phone with HTTP Google map link
* Single tracking/ Auto track continuously
*Five authorized phone number to protect tracker information and assets
* View photos on cell phone
* Storage& Data Load (optional)
*Engine-cut and restore alarm by SMS/GPRS*Fuel alarm (optional) If the tracker device detects the fuel decrease by 8% in three minutes, then it will send oil leak or theft alarm "oil: Xx%+latitude/longitude" to authorized numbers
*
Photograph*SD card (optional)
* Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*SOS button alarm
*Geo fencing alarm
*Over-speed alarm
*
Alarms under Arm State: Door alarm, ACC alarm, Shock Sensor alarm, Photograph
*Movement alert
*Compatible with car original anti-theft system
It also support Speed detection ,speed recording , kilometrage report , speed Governor !
You can set up the max speed that you want , such as 80km/h etc .
When speed approach max speed, siren beeps 5 times to warn the driver; when speed reaches or exceed the max speed, relay will be activated to limit the speed.
*Vehicle fleet/logistics/vehicle rental (12 to 24V)
4.specification
Content |
Specifications |
DIM. |
92*71*26mm |
Weight |
120g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900MHz |
GPS Sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Voltage of car power system |
12 V -24V |
Backup battery |
Chargeable 3.7V 500mAh Polymer Li-Battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing |
Packaging & Delivery
| Packaging Details: | Model:GPS105-A/ GPS105B
GPS Unit
16 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual
Package

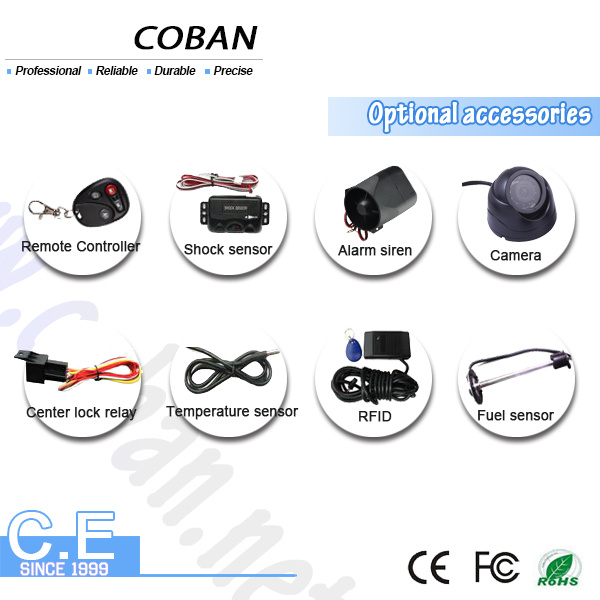

Optional accessories
Shock sensor
alarm siren
Microsd memory card
Fuel sensor
Central locking relay(2 in 1 set)
Accident sensor
RFID reader
Camera
Box size: 13cm*19cm* 5.7cm
Gross weight 0.68kg
Carton size 54cm*40cm*31cm
Quatities(pcs) 40pcs/ctn
NW 27.20kg/ctn
GW 28.7kg/ctn |
|---|
| Delivery Detail: | Shipped in 2 days after payment |
|---|

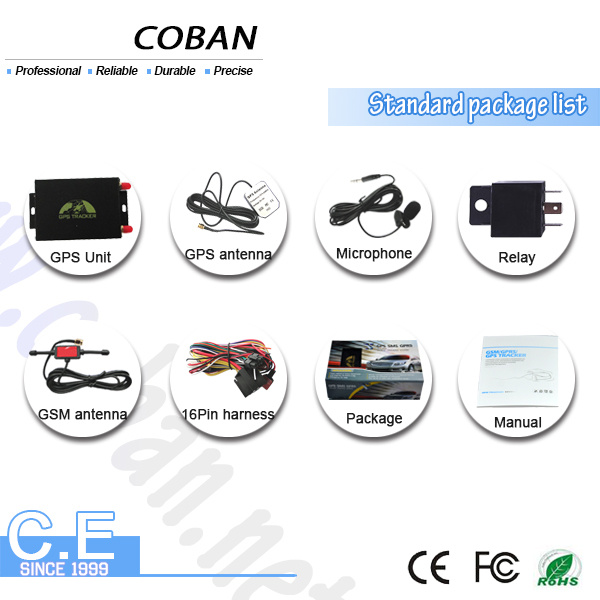

GPS Tracker 105 Standard and optional accessories
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order
FAQ
Q:What is the MOQ?
A:500pcs for our own available designs
Q:Can i mix different designs
A:NO
Q:Can i get a lower price if I order large quantities?
A:YES,cheaper prices with more bigger size orders
Q:Can i get the pre-production sample ?
A:yes ,for OEM order,it is ok to send samples for confirmation before mass
production
Q:When you ship my order ?
A:Normally 3-5days after receiving deposit,but it can be negotiated based on order
qty and production schedule
More details including E-user manual,photos will be sent after receive your inquiry
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
