Arb Daystar Carling Style Rocker Switch 4X4 Auto Rocker Switch

Name: Arb Daystar Carling Style Rocker Switch 4X4 Auto Rocker Switch
Brand: all-electronics-online.com
SKU: 764672715
Availability: InStock
Rating: 4.5 (90 reviews)

Price:	US $ 2.8-3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Arb Daystar Carling Style Rocker Switch
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DC:	12V/20A, 24V/10A
Pin:	3 Pins
Panel Cutout Dimesions:	36.8*21mm
Feature:	Waterproof Switch
Hxwxd:	42X24X40mm
Rating Ampere:	20A
Max. Voltage:	24V
Certifications:	CE RoHS
Waterproof:	IP66
Usage:	Digital Products
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

Packaging & Delivery

Packaging Details:	20 plate * 25pcs = 500pcs (each box) , the box size of carton is 34.5cm * 36 cm* 55 cm , the total weight is 18 kg (gross weight / each box)
Delivery Detail:	7-10 days after payment

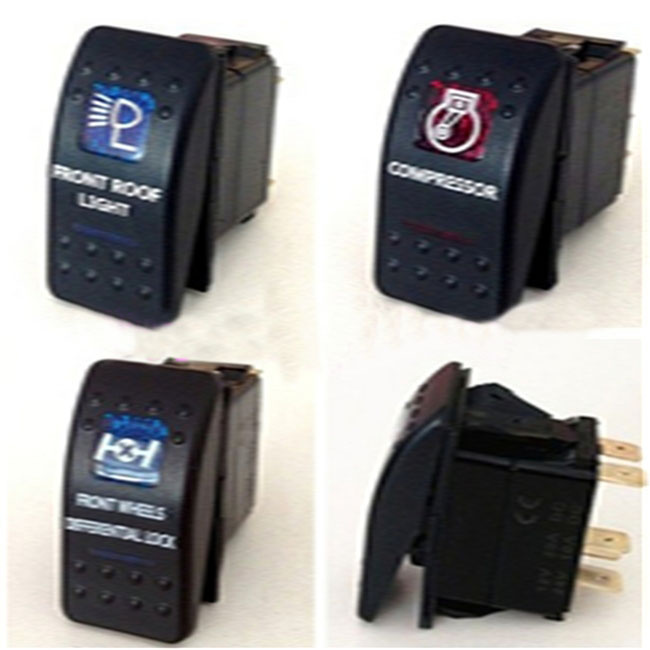

ARB Daystar Carling Style Rocker Switch RED LED Zombie Offroad Lights 4x4

1. Description:

These high quality 12/24 volt Rocker switch is a single throw ON - OFF switch designed to operate your 12 volt accessories. They have a face surface size of 2'' (50mm) x 1'' (25mm) and uses a standard din size mounting hole of 1.41'' (36mm) x .86'' (22mm) this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.

Single Pole Single Throw ON-OFF switch.
Black hard surface rocker.
Two LEDs in the switch.
Upper LED is ON only when the switch is turned ON.
Lower LED is independent.
Both LEDs have separate grounds.
Same size as the Carling and ARB switches.
Rated 16A 12V.10A 24V
No rear barriers between terminals.
Wiring diagram supplied with switch.
All symbols are laser etched directly onto the switch face to ensure long image life. We do not use stickers or ink which will wear off in a very short time.
