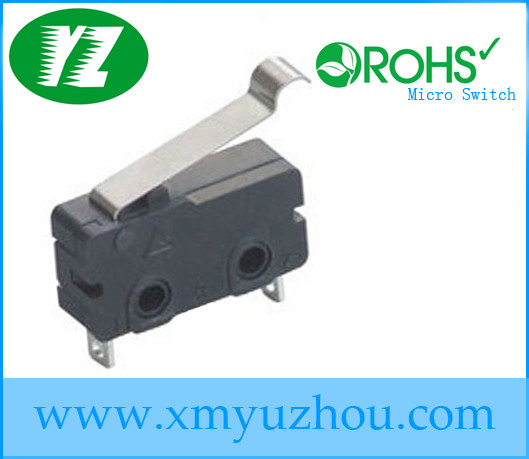

Arc Lever Micro Switch (MS2-D6BF)
| Price: |
US $ 0.23/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T |
| Prod Model: |
MS2-D6BF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Force: |
0.5n~3n |
| Rated Voltage: |
125VAC/250VAC |
| Rated Current: |
5A/10A |
| Connect Forms: |
D: Spst-Nc |
| Actuator Forms: |
6: Arc Lever |
Product Description
Arc Lever Micro Switch characteristics and usage:*Safe reliable miniature switch.
*Nice appearance, tight configuration, characteristic, small contact gap, quick action, high sensitivity and small operating travel.
*Long life, high reliability.
*Variety of contact terminals.
*Variety of levers.
*A variety of models with low operating force to high force are sensitivity.
They are mainly used in telephone, air conditioner, computer, humidifier, alarm, time recorder, sloder gun, fax machine. Joystick, juice maker, mixer, toy cat, light, electric pot, ect.Detail Information about Switch:
Why Choose Us?Xiamen Universal Electronic Co., Ltd, is a professional company of switch control device and semiconductor component separator, shutter motors etc electrical appliance company. After years of efforts of all colleagues, the support of customers and suppliers, we now have the business department of the electronics switch and Integrated Department of Market Operation. The business department of the electronics switch is engaged in R & D and manufacturing of the medium and small electronic switches; The Integrated Department of Market Operation is responsible for the Integration Services of information gathering, selling, trading and so on. Our products cover a wide range, including micro switch, push switch, metal dome switch, relay, low-voltage devices, rectifier bridge, ect. Those products are widely exported to more than 40 countries all over the world.Xiamen Universal Electronic Co., Ltd
No. 318. South Tongji Road, Jimei District, Xiamen City, Fujian, China
Mobile: 86-15606003688
Tel: 86-592-5782488
Fax: 86-592-5664223
|

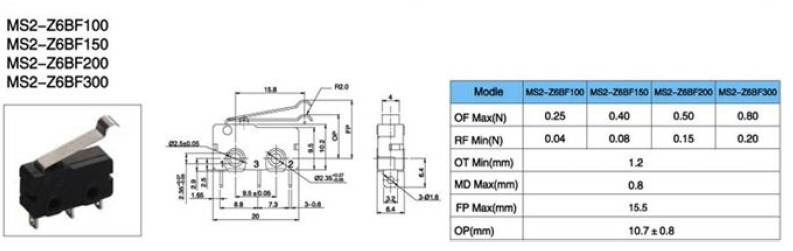

Item |
Value |
|
Operating Speed |
0.1mm~1m/s(Related with actuator forms) |
|
Operating Frequency |
Mechanical 60 cycles/min; Electrical 30 cycles/min |
|
Insulation Resistance |
≥ 100 MΩ (500VDC) |
|
Contact resistance |
OF> 0.5N: ≤ 30mΩ (see note)
OF≤ 0.5N: ≤ 50 mΩ (see note) |
Test Voltage |
Between terminals of the same polarirty |
AC1000V, 50/60Hz, 1min |
Between current-carrying metal
And ground(case), and between
Each terminal and non-carrying
metal parts |
AC1500V, 50/60Hz, 1min |
|
Vibration resistance |
10-55Hz, 1.5mm Double amplitude |
Shork Resistance |
Destruction: OF> 0.5N: 1000m/s ² (approx. 100G)max
OF< =0.5N: 500m/s ² (approx. 50G)max
Malfunction: OF> 0.5N: 300m/s ² (approx. 30G)max
OF< =0.5N: 200m/s ² (approx. 20G)max |
|
Life Expectancy |
Mechnical> =1000000 cycles
Electrical> =50000 cycles |
|
Degree of protection |
IEC IP40 |
|
Degree of protection against electric shock |
Class I |
|
PTI(Tracking Resistance) |
175 |
|
Ambient air temperature |
-25~+85Degree60%RH below(No ice and dew) |
|
Ambient air humidity |
85% RHbelow(about +5~+35 Degree) |
|
Weight |
Approx. 1.6g(No lever) |
|
Degree of temperature |
No mark: 25T85 |
6. Operating Force
(max)
|
050: 0.5N
100: 1N
150: 1.5N
200: 2N
300: 3N |
|
3.
Connect Forms |
Z: SPDT
T: SPST-NO
D: SPST-NC

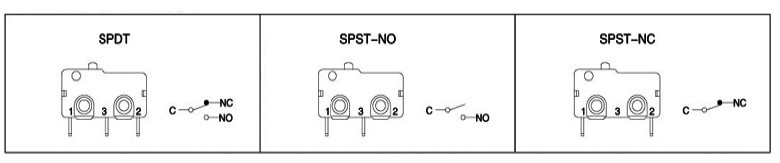

(See Diagram) |
|
7. Plunger specs |
No mark: Standard Plunger
A: Short Plunger
B: Long Plunger
C: Abnormality Plunger
( see dirgram )
Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company) |
|
4.
Acuator Forms |
0: No lever
1: Short lever
2: Long lever
3: Middle lever
4: Short Roller
5: Long Roller
6: Arc lever
Note:
Indicate not standard lever |
|
8. Additional Specis Numbers
Apply to:
|
1)When used not standard parts such as not standard terminals;
2)When Customer has particular Operating value or other requirement
3) When the case is mot black, for example, grey shows as G.
Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant |
|
5.

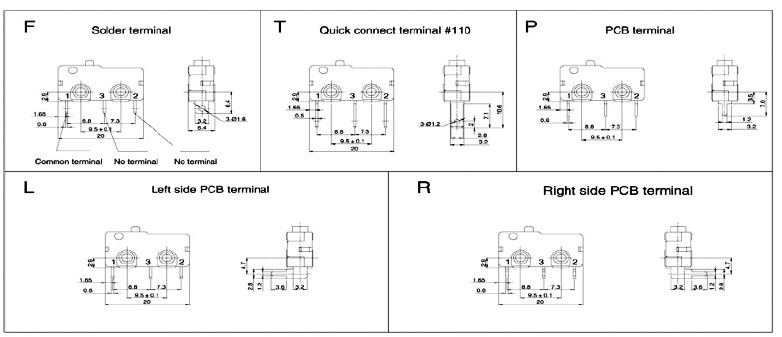

Terminal Type |
F: Solder terminal
P: PCB terminal
L: Left side PCB terminal
R: Right side PCB terminal
T: Quick-connect terminal
Y: Not standard terminal |
|
Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
