Area Sensor, Picking Sensor, Safety Light Curtain

Name: Area Sensor, Picking Sensor, Safety Light Curtain
Brand: all-electronics-online.com
SKU: 620955272
Availability: InStock
Rating: 4.9 (93 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BW Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sensing Type:	Through Beam
Sensing Distance:	0.1~7m
Optical Axis Pitch:	20mm,40mm
Sensing Height:	140-940mm,120-920mm
Power Supply:	DC24V

Product Description

Area Sensors (Picking Sensors)
General Purpose Area Sensors
The BW series general purpose area sensors feature long sensing distance up to 7 m and are available in 22 different configurations based on optical pitch and detection area size. With ambient illuminance limit of 100,000 lux, the sensors can operate error-free even under direct sunlight. Bright LED indicators are present in both the emitter and the receiver, making it easy to identify the operation status. Mutual interference prevention is possible with master/slave connection method, allowing multiple units to be installed in a row.

Features

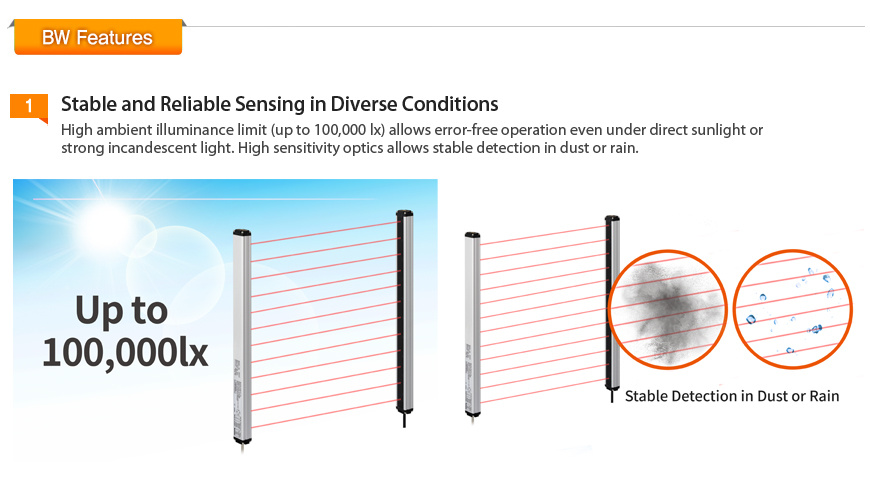

* Ambient illuminance: 100,000 lux (upgraded feature)

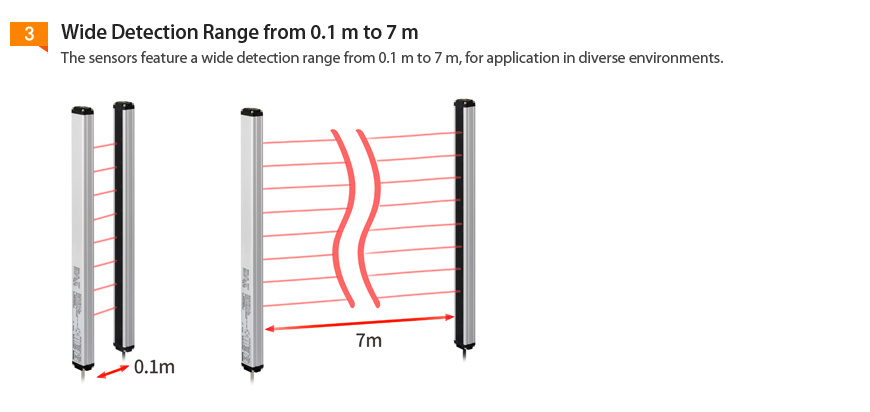

* Long sensing distance up to 7 m
* 22 configurations (number of optics: 4 to 48 / optical pitch: 20, 40 mm / detection area: 120 to 940 mm)

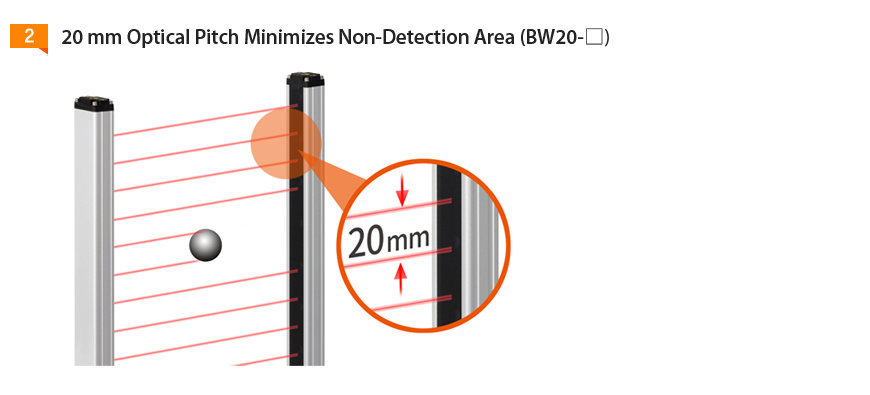

* 20 mm optical pitch minimizes non-detection area (BW20-Δ)

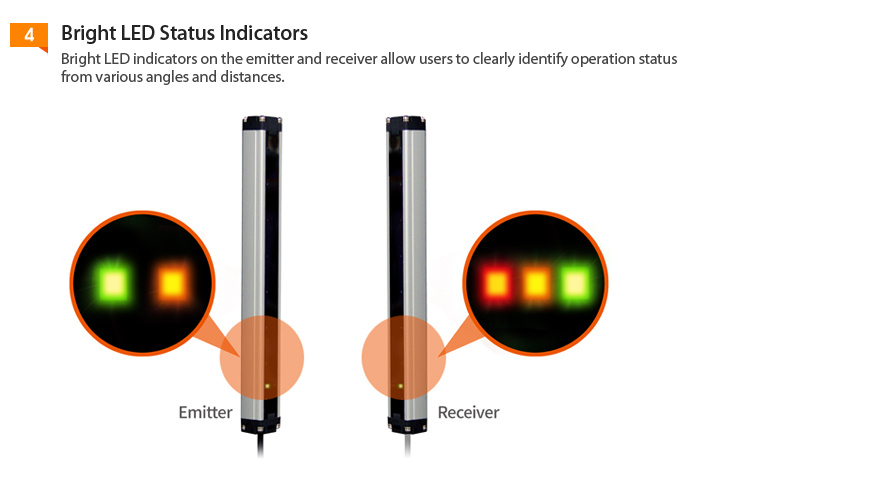

* Bright LED indicators on emitter and receiver
* Mutual interference prevention function, self-diagnosis function, stable operation test
* IP65 protection structure (IEC standard)

Please contact us for further details.
