Areal Bundled Conductors Service Drop Overhead Cable

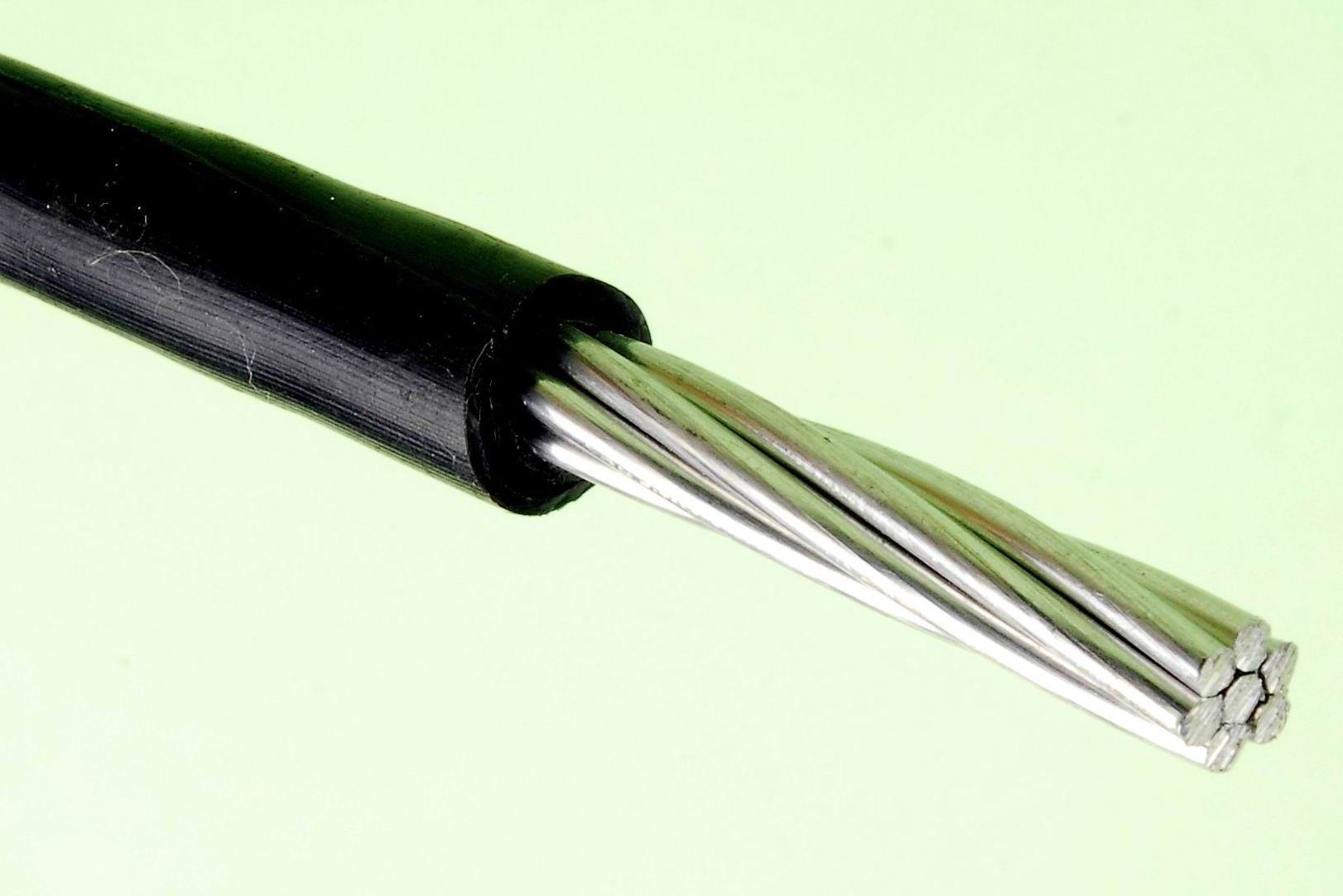

Name: Areal Bundled Conductors Service Drop Overhead Cable
Brand: all-electronics-online.com
SKU: 682452562
Availability: InStock
Rating: 4.7 (147 reviews)

Price:	US $ 0.2-2.6/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	JKV / JKLV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Section Area:	16mm2~240mm2
Names:	Insulated Overhead Cable
Standard:	ASTM, AS/NZS, BS, CSA, DIN, IEC...
Certificate:	Ce, ISO 9001
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Insulation Material:	XLPE
Certification:	ISO9001
Range Of Application:	Transmission Line
Brand:	Jytop
Conductor Material:	Aluminum or Alloy 8000 Series

Product Description

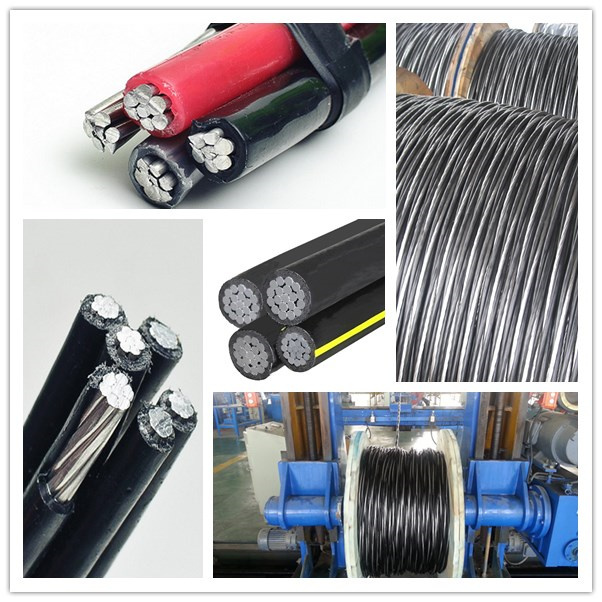

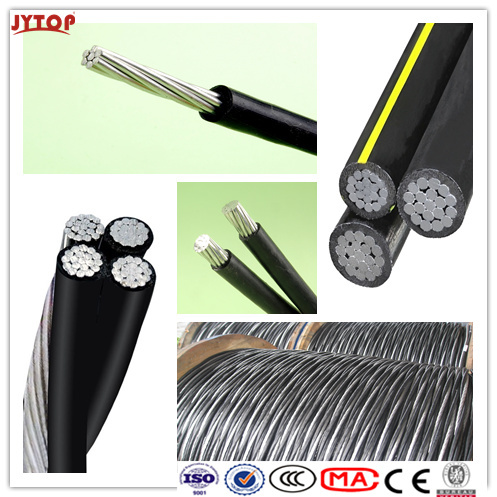

Areal Bundled Conductors Service Drop Overhead Cable

Application:
Aerial Bundled Cable (ABC cable) has characters of power-transmitting and strong mechanical. In comparison with bare wire, aerial bundled cable (ABC cable) boasts many advantages, such as:small span in laying, higher safe reliability, better atmosphere aging resistence property. Aerial bundled cable has the priority to be used in urban and rural power-transmitting construction project.

Insulation: PVC or XLPE

Standards: BS 7870-5

Technical characteristics

Cores	Nominal cross-sectional area	Phase Conductors insulation	Dia. Of cable	R. of conductors at 20ºC		Break strength of conductor
Cores	Nominal cross-sectional area	Phase Conductors insulation	Dia. Of cable	Ω/km		KN
3C+1C	mm2	Thickness (mm)	mm	Phase cores	Neutral cores	Phase cores	Neutral cores
3C+1C	3x25+54.6	1.4	23.57	1.2	0.630	16.6	16.6
3C+1C	3x35+54.6	1.6	26.08	0.868	0.630	16.6	16.6
3C+1C	3x50+54.6	1.6	28.15	0.641	0.630	16.6	16.6
3C+1C	3x70+54.6	1.8	32.15	0.443	0.630	16.6	16.6
3C+1C	3x70+54.6	1.8	32.15	0.443	0.630	16.6	16.6
3C+1C	3x70+70	1.8	32.75	0.443	0.500	20.5	20.5
3C+1C	3x95+70	1.8	35.78	0.32	0.500	20.5	20.5
3C+1C	3x120+70	1.8	37.93	0.253	0.500	20.5	20.5
3C+1C	3x120+70	1.8	37.93	0.253	0.500	20.5	20.5
3C+1C	3x120+95	1.8	39.26	0.253	0.343	27.5	27.5
3C+1C	3x150+95	1.9	41.81	0.206	0.343	27.5	27.5

More about ABC Cable types, Plz contact our team. we'll give reply ASAP.
Duplex Service Drop

Code Word	Phase Conductors				Bare Natural		Nominal Weight			Ampacity	Standard Package
	Size & Number of wires	Insulation Thickness	Nominal Diameter		Size & Number of Wires	Rated Strength	kg / km				Coils	Reels
		Insulation Thickness	Bare	OD		Rated Strength	XLPE	Aluminum	Total		Coils	Reels
		mm	mm	mm		kg	XLPE	Aluminum	Total	A	m	m

AAC
Pekingese	6-Solid	1.14	4.1	6.4	6-7	255	20.8	72.9	94	78	305	1000
Collie	6-7	1.14	4.6	6.9	6-7	255	23.8	72.9	97	78	305	1000
Cocker	6-7	1.52	4.6	7.7	6-7	255	32.7	72.9	106	78	305	1000
Dachshund	4-Solid	1.14	5.2	7.5	6-7	400	26.8	114.6	141	103	305	500
Spaniel	4-7	1.14	5.9	8.2	6-7	400	29.8	116.1	146	103	305	500
Cairn	4-7	1.52	5.9	8.9	6-7	400	40.2	116.1	156	103	305	500
Doberman	2-7	1.14	7.4	9.7	2-7	612	38.7	184.5	223	136	152	500
Airedale	1-19	1.52	8.4	11.5	1-7	---	56.5	233.6	290	158	152	500
Basset	1/0-7	1.52	9.3	12.4	1/0-7	903	64.0	294.7	359	182	152	457
Malemure	1/0-19	1.52	9.4	12.5	1/0-7	903	64.0	294.7	359	182	152	457

AAAC
Chihuahua	6-Solid	1.14	4.1	6.4	6-7	499	20.8	72.9	94	78	305	1000
Vizsla	6-7	1.14	4.6	6.9	6-7	499	23.8	72.9	97	78	305	1000
Harrier	4-Solid	1.14	5.2	7.5	4-7	798	26.8	116.1	143	103	305	500
Whippet	4-7	1.14	5.9	8.2	4-7	798	29.8	116.1	146	103	305	500
Schnauzer	2-7	1.14	7.4	9.7	2-7	1,270	38.7	184.5	223	136	152	500
Afghan	1/0-7	1.52	9.3	12.4	1/0-7	2,023	64.0	296.1	360	182	152	457
heeler	1/0-19	1.52	9.4	12.5	1/0-7	2,023	64.0	296.1	360	182	152	457

ACSR
Setter	6-Solid	1.14	4.1	6.4	6/6/01	540	20.8	72.9	94	78	305	1000
Shepherd	6-7	1.14	4.6	6.9	6/6/01	540	23.8	72.9	97	78	305	1000
Retriever	6-7	1.52	4.6	7.7	6/6/01	540	32.7	72.9	106	78	305	1000
Eskimo	4-Solid	1.14	5.2	7.5	4/6/01	844	26.8	114.6	141	103	305	500
Terrier	4-7	1.14	5.9	8.2	4/6/01	844	29.8	116.1	146	103	305	500
Yorkshire	4-7	1.52	5.9	8.9	4/6/01	844	40.2	116.1	156	103	305	500
Chow	2-7	1.14	7.4	9.7	2/6/01	1,293	38.7	184.5	223	136	152	500
Labrador	1-19	1.52	8.4	11.5	1/6/01	1,610	56.5	233.6	290	158	152	500
Bloodhound	1/0-7	1.52	9.3	12.4	1/0-6/1	1,987	64.0	294.7	359	182	152	457
Bull	1/0-19	1.52	9.4	12.5	1/0-6/1	1,987	64.0	294.7	359	182	152	457

Triplex Service Drop

Code Word	Phase Conductors						Bare Natural			Nominal Weight					Ampacity		Standard Package
	Size & Number of wires	Insulation Thickness		Nominal Diameter			Size & Number of Wires	Rated Strength		kg / km							Coils		Reels
				Bare		OD				XLPE		Al	Total
		mm		mm		mm		kg							A		m		m

AAC
Halotis	6-Solid	1.14	4.115		6.4		6-7	255	42		110			152	78	305		762
Pike	6-7	0.76	4.67		6.2		6-7	255	31		112			143	78	305		762
Patella	6-7	1.14	4.67		7.0		6-7	255	48		112			159	78	305		762
Albus	6-7	1.52	4.67		7.7		6-7	255	64		132			198	78	305		762
Fusus	4-Solid	1.14	5.182		7.5		4-7	400	52		177			229	103	152		518
Oyster	4-7	1.14	5.89		8.2		4-7	400	60		177			237	103	152		457
Argo	4-7	1.52	5.89		8.9		4-7	400	80		177			258	103	152		457
Clam	2-7	1.14	7.42		9.7		2-7	612	76		281			359	136	152		549
Thia	2-7	1.52	7.42		10.5		2-7	612	100		281			383	136	152		549
Mussel	2-7	1.14	7.42		9.7		2-7	612	76		281			359	136	152		549
Pyrula	1-7	1.52	8.33		11.4		1-7	744	113		356			467	158	152		457
Hyas	1-19	1.52	8.43		11.5		1-7	744	115		356			469	158	152		457
Murex	1/0-7	1.52	9.35		12.4		1/0-7	903	128		385			513	182	152		366
Purpura	1/0-19	1.52	9.47		12.5		1/0-7	903	130		385			515	182	152		366
Nasa	2/0-7	1.52	10.52		13.6		2/0-7	1,139	146		566			710	210	-		457
Trophon	2/0-19	1.52	10.64		13.7		2/0-7	1,139	147		566			713	210	-		457
Quahog	3/0-7	2.03	11.79		15.9		3/0-7	1,379	214		713			926	242	-		396
lone	3/0-19	2.03	11.94		16.0		3/0-7	1,379	217		713			929	242	-		396
Melita	3/0-19	1.52	11.94		15.0		3/0-19	1,501	168		713			881	242	-		396
Coquila	4/0-7	1.52	13.26		16.3		4/0-7	1,737	191		899			1,089	279	-		305
Tusk	4/0-7	2.03	13.26		17.3		4/0-7	1,737	243		899			1,141	279	-		305
Apus	4/0-19	2.03	13.41		17.5		4/0-7	1,737	246		899			1,144	279	-		305
Portunus	4/0-19	1.52	13.41		16.5		4/0-19	1,823	194		899			1,091	279	-		305
Chiton	266.8-19	2.03	14.88		18.9		266.8-19	2,254	277		1,133			1,409	310	-		305
Nannynose	336.4-19	2.03	16.92		21.0		336.4-19	2,790	321		1,427			1,749	330	-		305

Code Word	Phase Conductors				Bare Natural		Nominal Weight			Ampacity	Standard Package
	Size & Number of wires	Insulation Thickness	Nominal Diameter		Size & Number of Wires	Rated Strength	kg / km				Coils	Reels
		Insulation Thickness	Bare	OD		Rated Strength	XLPE	Aluminum	Total		Coils	Reels
		mm	mm	mm		kg	XLPE	Aluminum	Total	A	m	m
AAAC
Homarus	6-Solid	1.14	4.115	6.4	6-7	499	42	118	159	78	305	762
Minex	6-Solid	1.14	4.115	13.3	6-7	499	42	118	159	78	305	762
Cabera	6-7	1.14	4.65	6.9	6-7	499	48	118	165	78	305	671
Hippa	6-7	1.14	4.65	6.9	6-7	499	48	118	165	78	305	671
Artemia	4-Solid	1.14	5.182	7.5	6-7	499	52	162	214	103	305	518
Maira	4-7	1.14	5.89	8.2	6-7	499	60	188	247	103	305	518
Crab	4-7	1.14	5.89	8.2	6-7	499	60	162	222	103	305	518
Luidia	4-Solid	1.14	5.182	7.5	6-7	499	52	162	214	103	152	518
Prawn	4-Solid	1.14	5.182	7.5	4-7	798	52	188	240	103	152	518
Metalia	4-7	1.14	5.89	8.2	4-7	798	60	188	247	103	152	457
Barnacles	4-7	1.14	5.89	8.2	4-7	798	60	188	247	103	152	457
Solaster	2-7	1.14	7.42	9.7	4-7	798	76	258	333	136	152	549
Pagarus	2-7	1.52	7.42	10.5	4-7	798	100	258	357	136	152	549
Shrimp	2-7	1.14	7.42	9.7	2-7	1,270	76	298	374	136	152	549
Lobster	2-7	1.52	7.42	10.5	2-7	1,270	100	298	397	136	152	549
Encope	1-19	1.52	8.43	11.5	2-7	1,270	115	347	461	158	152	366
Sanderab	1/0-7	1.52	9.35	12.4	2-7	1,270	128	409	537	182	152	366
Echinus	1/0-19	1.52	9.47	12.5	2-7	1,270	130	409	539	182	152	366
Gammarus	1/0-7	1.52	9.35	12.4	1/0-7	2,023	128	473	601	182	152	366
Leda	1/0-19	1.52	9.47	12.5	1/0-7	2,023	130	473	603	182	152	366
Crayﬁsh	2/0-7	1.52	10.5	13.6	2-7	1,270	146	487	631	210	-	457
Sipho	2/0-19	1.52	10.6	13.7	2-7	1,270	147	487	634	210	-	457
Dungenese	2/0-7	1.52	10.5	13.6	2/0-7	2,445	146	595	740	210	-	457
Cyclops	2/0-7	1.52	10.6	13.7	2/0-7	2,445	147	595	743	210	-	457
Slug	3/0-7	1.52	11.8	14.8	1/0-7	2,023	165	650	816	242	-	366
Fulgur	3/0-19	1.52	11.9	15.0	1/0-7	2,023	168	650	819	242	-	366
Balanus	3/0-19	2.03	11.9	16.0	1/0-7	2,023	216	650	868	242	-	366
Stonecrab	3/0-7	1.52	11.8	14.8	3/0-7	3,080	165	752	917	242	-	366
Flustra	3/0-7	1.52	11.9	15.0	3/0-7	3,080	168	752	920	242	-	366
Crisia	3/0-19	2.03	11.9	16.0	3/0-7	3,080	216	752	969	242	-	305
Squid	4/0-7	1.52	13.3	16.3	2/0-7	2,431	191	820	1,011	279	-	305
Arca	4/0-19	1.52	13.4	16.5	2/0-7	2,431	192	820	1,012	279	-	305
Bugula	4/0-19	2.03	13.4	17.5	2/0-7	2,431	246	820	1,066	279	-	305
Kingerab	4/0-7	1.52	13.3	16.3	4/0-7	3,883	191	948	1,137	279	-	305
Lepas	4/0-19	1.52	13.4	16.5	4/0-7	3,883	192	948	1,140	279	-	305
Cassi	4/0-19	2.03	13.4	17.5	4/0-7	3,883	246	948	1,194	279	-	305

Code Word	Phase Conductors				Bare Natural		Nominal Weight			Ampacity	Standard Package
	Size & Number of wires	Insulation Thickness	Nominal Diameter		Size & Number of Wires	Rated Strength	kg / km				Coils	Reels
		Insulation Thickness	Bare	OD		Rated Strength	XLPE	Al	Total		Coils	Reels
		mm	mm	mm		kg	XLPE	Al	Total	A	m	m
ACSR
Paludina	6-Solid	1.14	4.115	6.401	6-6/1	540	42	112	170	79	305	762
Voluta	6-7	1.14	4.67	6.960	6-6/1	540	48	112	176	79	305	671
Bolma	6-7	1.52	4.67	7.722	6-6/1	540	64	112	194	79	305	671
Scallop	4-Solid	1.14	5.182	7.468	6-6/1	540	52	155	225	138	152	518
Strombus	4-7	1.14	5.89	8.179	6-6/1	540	60	155	232	138	152	457
Carnea	4-7	1.52	5.89	8.941	6-6/1	540	80	155	253	138	152	457
Whelk	4-Solid	1.14	5.182	7.468	4-6/1	844	52	177	258	138	152	518
Periwinkle	4-7	1.14	5.89	8.179	4-6/1	844	60	177	263	138	152	457
Calma	4-7	1.52	5.89	8.941	4-6/1	844	80	177	284	138	152	457
Cockle	2-7	1.14	5.89	8.179	4-6/1	844	60	247	335	183	152	549
Gebia	2-7	1.52	5.89	8.941	4-6/1	844	80	247	354	183	152	549
Conch	2-7	1.14	5.89	8.179	2-6/1	1,293	60	281	384	183	152	549
Uca	2-7	1.52	5.89	8.941	2-6/1	1,293	80	281	405	183	152	549
Vermeths	1-7	1.52	8.33	11.379	1-6/1	1,610	113	354	522	210	152	457
Atya	1-19	1.52	8.33	11.379	1-6/1	1,610	113	430	524	210	152	457
Janthina	1/0-7	1.52	8.33	11.379	2-6/1	1,293	113	393	549	242	152	366
Ranella	1/0-19	1.52	9.47	12.522	2-6/1	1,293	130	393	566	242	152	366
Neritina	1/0-7	1.52	9.35	12.395	1/0-6/1	1,987	128	448	644	242	152	366
Cenia	1/0-19	1.52	9.47	12.522	1/0-6/1	1,987	130	448	646	242	152	366
Cavolinia	2/0-7	1.52	10.5	13.564	1-6/1	1,610	146	496	697	279	-	579
Clio	2/0-19	1.52	10.6	13.691	1-6/1	1,610	147	496	698	279	-	457
Runcina	2/0-7	1.52	10.5	13.564	2/0-6/1	2,404	146	564	796	279	-	457
Triton	2/0-19	1.52	10.6	13.691	2/0-6/1	2,404	147	564	799	279	-	457
Sanddollar	3/0-7	1.52	11.8	14.834	1/0-6/1	1,987	165	625	860	322	-	396
Aega	3/0-19	1.52	11.9	14.986	1/0-6/1	1,987	168	625	862	322	-	396
Pisa	3/0-19	2.03	11.9	16.002	1/0-6/1	1,987	216	625	911	322	-	396
Cherrystone	3/0-7	1.52	11.8	14.834	3/0-6/1	3,003	165	711	987	322	-	396
Mursia	3/0-19	1.52	11.9	14.986	3/0-6/1	3,003	168	711	990	322	-	396
Mysis	3/0-19	2.03	11.9	16.002	3/0-6/1	3,003	216	711	990	322	-	396
Cuttleﬁsh	4/0-7	1.52	13.3	16.307	2/0-6/1	2,404	191	787	1,066	372	-	305
Cerapus	4/0-19	1.52	13.4	16.459	2/0-6/1	2,404	192	787	1,069	372	-	305
Nepatus	4/0-19	2.03	13.4	17.475	2/0-6/1	2,404	246	787	1,121	372	-	305
Razor	4/0-7	1.52	13.3	16.307	4/0-6/1	3,788	191	897	1,226	372	-	305
Zuzara	4/0-19	1.52	13.4	16.459	4/0-6/1	3,788	192	897	1,229	372	-	305
Alima	4/0-19	2.03	13.4	17.475	4/0-6/1	3,788	246	897	1,281	372	-	305
Callista	266.8-19	2.03	15.1	19.126	3/0-6/1	3,003	280	994	1,384	410	-	305
Dosinia	266.8-19	2.03	15.1	19.126	266.8-18/1	3,121	280	1,133	1,472	410	-	305
Cowry	336.4-19	2.03	16.9	20.980	4/0-6/1	3,788	320	1,253	1,713	506	-	305
Limpet	336.4-19	2.03	16.9	20.980	336.4-18/1	3,937	320	1,429	1,823	506	-	305

Quadruplex Service Drop

Code Word	Phase Conductors				Bare Natural		Nominal Weight			Ampacity*	Standard Package
	Size & Number of wires	Insulation Thickness	Nominal Diameter		Size & Number of Wires	Rated Strength	kg / km				Coils	Reels
		Insulation Thickness	Bare	OD		Rated Strength	XLPE	Aluminum	Total		Coils	Reels
		mm	mm	mm		kg	XLPE	Aluminum	Total	A	m	m

AAC
Quarter	6-Solid	1.143	4.115	6.401	6-7	255.371	63	149	211	78	152.4	762.0
Clydesdale	4-Soild	1.143	5.182	7.468	4-7	399.613	79	237	315	103	152.4	518.2
Pinto	4-7	1.143	5.893	8.179	4-7	399.613	89	237	326	136	152.4	518.2
Musang	2-7	1.143	7.417	9.703	2-7	612.347	115	377	491	158		548.6
Shire	1-19	1.524	8.433	11.481	1-19	743.888	171	475	646	158		457.2
Libyan	1/0-7	1.524	9.347	12.395	1/0-7	902.644	192	598	790	182		365.8
Criollo	1/0-19	1.524	9.474	12.522	1/0-19	902.644	193	598	793	182		365.8
Orloff	2/0-7	1.524	10.516	13.564	2/0-7	1138.511	217	754	973	210		457.2
Percheron	2/0-19	1.524	10.643	13.691	2/0-19	1138.511	220	754	976	210		457.2
Mongolian	3/0-7	1.524	11.786	14.834	3/0-7	1378.914	249	951	1199	242		396.2
Hanoverian	3/0-19	1.524	11.938	14.986	3/0-19	1378.914	251	951	1204	242		396.2
Singlefoot	4/0-7	1.524	13.259	16.307	4/0-7	1737.250	286	1199	1485	279		335.3
Oldenburg	4/0-19	1.524	13.411	16.459	4/0-19	1737.250	289	1199	1490	279		335.3

Code Word	Phase Conductors				Bare Natural		Nominal Weight			Ampacity*	Standard Package
	Size & Number of wires	Insulation Thickness	Nominal Diameter		Size & Number of Wires	Rated Strength	kg / km				Coils	Reels
		Insulation Thickness	Bare	OD		Rated Strength	XLPE	Aluminum	Total		Coils	Reels
		mm	mm	mm		kg	XLPE	Aluminum	Total	A	m	m

AAAC
Bay	6-Solid	1.143	4.115	6.401	6-7	503.485	63	155	217	78	152.4	762.0
French-conch	6-7	1.143	4.674	6.960	6-7	503.485	71	155	226	78	152.4	762.0
German-conch	4-solid	1.143	5.182	7.468	4-7	798.318	79	247	324	103	152.4	518.2
Arabian	4-7	1.143	5.893	8.179	4-7	784.711	89	247	336	103		518.2
Belgian	2-7	1.143	7.417	9.703	2-7	1270.052	115	391	506	136		548.6
Saddle	1-19	1.524	8.433	11.481	2-7	1270.052	171	466	637	158		457.2
Plow	1/0-7	1.524	9.347	12.395	1/0-7	2023.011	192	624	814	182		365.8
Sherland	1/0-19	1.524	9.474	12.522	1/0-7	2023.011	193	624	817	182		365.8
Dapple-grey	2/0-7	1.524	10.516	13.564	2/0-7	2444.850	217	786	1005	210		457.2
Thoroughbred	2/0-19	1.524	10.643	13.691	2/0-7	2444.850	220	786	1007	210		457.2
Dobbin	3/0-7	1.524	11.786	14.834	3/0-7	3079.876	249	991	1238	242		396.2
Troter	3/0-19	1.524	11.938	14.986	3/0-7	3079.876	251	991	1243	242		396.2
Pony	4/0-7	1.524	13.259	16.307	4/0-7	3882.730	286	1250	1534	279		335.3
Walking	4/0-19	1.524	13.411	16.459	4/0-7	3882.730	289	1250	1539	279		335.3

Code Word	Phase Conductors				Bare Natural		Nominal Weight			Ampacity*	Standard Package
	Size & Number of wires	Insulation Thickness	Nominal Diameter		Size & Number of Wires	Rated Strength	kg / km				Coils	Reels
		Insulation Thickness	Bare	OD		Rated Strength	XLPE	Aluminum	Total		Coils	Reels
		mm	mm	mm		kg	XLPE	Aluminum	Total	A	m	m

ACSR
Morochuca	6-Solid	1.143	4.115	6.401	6-6/1	539.772	63	149	229	78	152.4	762.0
Chola	6-7	1.143	4.674	6.960	6-6/1	539.772	71	149	237	78	152.4	762.0
Morgan	4-solid	1.143	5.182	7.468	4-6/1	843.667	79	238	344	103	152.4	518.2
Hackney	4-7	1.143	5.893	8.179	4-6/1	843.667	89	238	356	103		518.2
Palomino	2-7	1.143	7.417	9.703	2-6/1	1292.732	115	377	557	136		548.6
Albina	1-19	1.524	8.433	11.481	2-6/1	1610.245	171	473	699	158		457.2
Standardbred	1/0-7	1.524	9.347	12.395	1/0-6/1	1986.724	192	598	859	182		365.8
Costena	1/0-19	1.524	9.474	12.522	1/0-6/1	1986.724	193	598	862	182		365.8
Chicoeagues	2/0-7	1.524	10.516	13.564	2/0-6/1	2404.027	217	753	1060	210		457.2
Grullo	2/0-19	1.524	10.643	13.691	2/0-6/1	2402.027	220	753	1063	210		457.2
Mare	3/0-7	1.524	11.786	14.834	3/0-6/1	3002.766	249	951	1308	242		396.2
Suffolk	3/0-19	1.524	11.938	14.986	3/0-6/1	3002.766	251	951	1313	242		396.2
Stallion	4/0-7	1.524	13.259	16.307	4/0-6/1	3787.477	286	1198	1622	279		335.3
Appaloosa	4/0-19	1.524	13.411	16.459	4/0-6/1	3787.477	289	1198	1627	279		335.3

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
