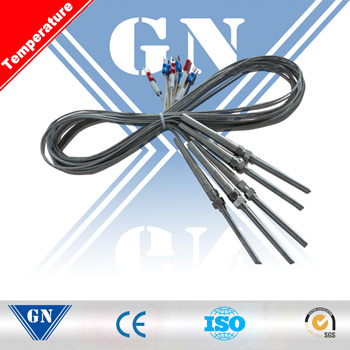

Armored Thermocouple with Compensation Wire (CX-WR)

Prod Model:	CX-WR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-1800c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex

Product Description

Armored Thermocouple with Compensation Wire


Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from 0 to 1300°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: 0-1800 centigrade .
5.Terminal blocks: terminals box

Selection table:

Type	Graduation	Measuring Range C	Length		Mounting & Fixing Device
			L	L1
WRPK-191	S	0-1300	100 200 300 400 500 750 1000 1500 2000 3000 4000 5000 7500 10000 15000 25000	500 750 1000 1500 2000 3000 4000 5000 7500 10000 15000 25000	without fixing device
WRMK-191	N	0-1100
WRNK-191	K
WREK-191	E	0-800
WRCK-191	T	0-350
WRFK-191	J	0-600
WRPK-291	S	0-1300			threaded head with fixed fastener
WRMK-291	N	0-1100
WRNK-291	K
WREK-291	E	0-800
WRCK-291	T	0-350
WRFK-291	J	0-600
WRPK-391	S	0-1300			threaded head with movable fastener
WRMK-391	N	0-1100
WRNK-391	K
WREK-391	E	0-800
WRCK-391	T	0-350
WRFK-391	J	0-600
WRPK-491	S	0-1300			flange with fixed movable fastener
WRMK-491	N	0-1100
WRNK-491	K
WREK-491	E	0-800
WRCK-491	T	0-350
WRFK-491	J	0-600
WRPK-591	S	0-1300			flange with fixed fastener
WRMK-591	N	0-1100
WRNK-591	K
WREK-591	E	0-800
WRCK-591	T	0-350
WRFK-591	J	0-600

Diagram:
It can be suctomized according to your requirements.


After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
