| Markets: |
North America,South America,Southeast Asia,Eastern Asia |
| Voltage: |
High Voltage Cable |
| Insulation Material: |
XLPE |
| Application: |
Power Station |
| Certification: |
CE |
Product Description
This series is mainly for laying indoor, tunnel, channel and under ground, shaft with large differences of level and other conditions. Rated voltage 10-220kV XLPE insulated power cables have been widely used in our country with the advantages of excellent electric properties, high long term working temperature, strong ability to resist short circuit, long service life, light weight and without the limit of fall, easy to install, operate and maintain.
The XLPE insulated cables of our factory are strictly produced according to the standards of GB/T12706 (power cable with extruded insulation and their accessories for rated voltages from 1kV up to 35kV) and GB/T11017 (power cable with cross-linked polyethylene insulation and their accessories for rated voltage of 110kV).
The GB/T12706 is equal to IEC 60502 (1-30kV plastic insulated power cable) and GB/T 11017 is equal to IEC 60840 (the test of 30kV -150kV extruding insulated power cables). We can produce products complying with IEC 60502-0997 (rated voltage 1-30kV extruding insulated power cable and accessories) to meet the requirement of our clients. We can produce XLPE power cables with special requirement and higher properties according to clients' requirements. Characteristics:
1) The highest rated temperature is 90 C
2) The highest temperature of the conductor of cables shall be less than 250 C(max. Duration: 5s)
3) The cables can be laid without the limit of fall with enough mechanical pull, But the single core cable cannot be laid in iron tube or cannot be fixed by circled iron tools around the cables
4) The laying temperature of cables should not be lower than 0 C, When the ambient temperature is below 0 C, the cables should be heated up to 0 C
Or higher with certain methods. This series includes:
* XLPE insulated, PVC or PE sheathed power cables

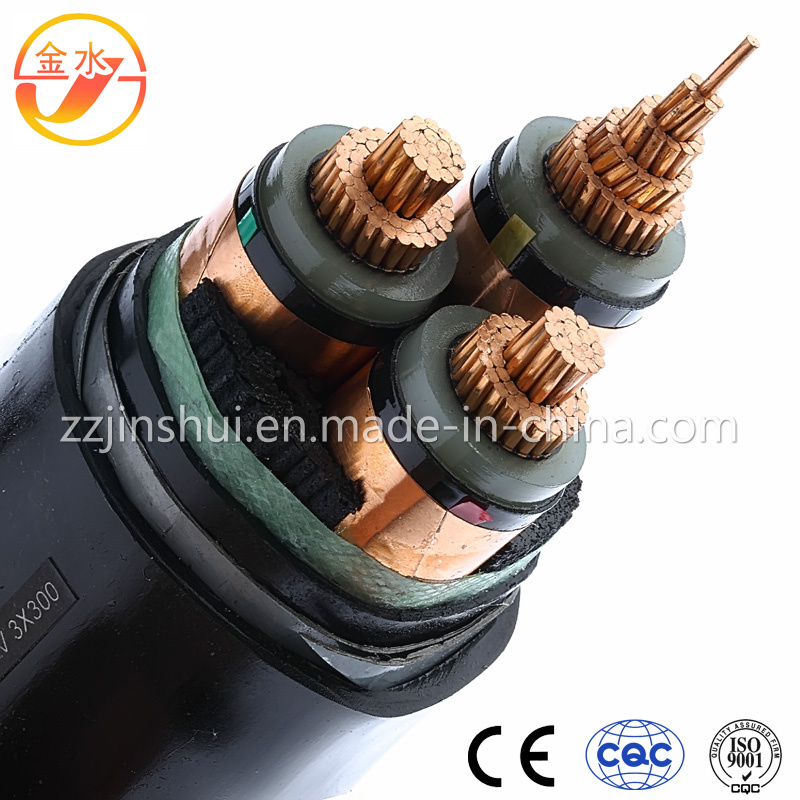

* XLPE insulated, steel tape armored, PVC or PE sheathed power cables
* XLPE insulated, steel wire armored, PVC or PE sheathed power cables
* Rated voltage: 0.6/1kV, 1.8/3kV, 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV, 18/20kV, 21/35kV, 26/35kV
* Number of cores: One, two, three, four, five* Relative manufacturing standards: IEC60502, BS5467, BS6622, ASTMPacking: Wooden drum, steel wooden drum
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
