Armour Bow-Type Fiber Optic Drop Cable

Name: Armour Bow-Type Fiber Optic Drop Cable
Brand: all-electronics-online.com
SKU: 688219092
Availability: InStock
Rating: 4.9 (73 reviews)

Price:	US $ 0.07-0.1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYDB006
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dameter:	6.8mm
Armour:	Alp
Short Tensile:	200n
Drum:	2km/Drum
Application:	Sensor
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Fiebr Optic Cable
Brand:	Neutral
Sheath Material:	PVC. LSZH

Product Description

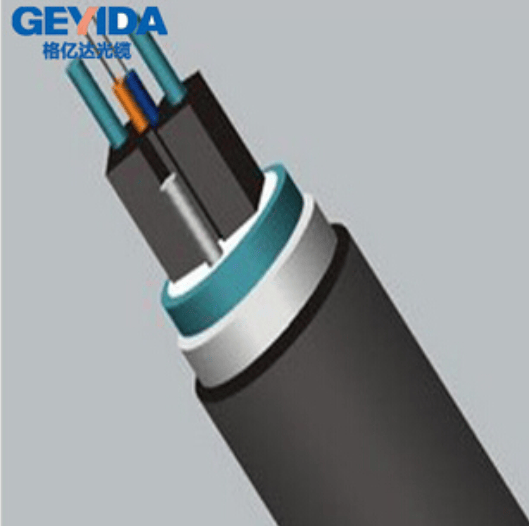

2 Cores Multi-Mode Bow-Type Fiber Optical Drop Cable

Application:
Mainly used in building aerial and duct access cabling.

Features:
Good mechanical and environmental characteristics;
Flame retardant characteristics meets the requirements of relevants standards;
The mechanical characteristics meets the requirements of relevants standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.

Options:
Fiber Type:G.652, G.655 or 6.657 single-mode fiber. A1a or A1b, OM3 or OM4 mufti-mode fiber, or other types of fiber;
Fiber Type:G.652, G.655 or 6.657 single-mode fiber. A1a or A1b, OM3 or OM4 mufti-mode fiber, or other types of fiber;environmental halogen flame retardant polyolefin(ZRPO), environmental thermasplatic polyurethane(TPU), or other contracted material;
Jacket Color:(Including color of tiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1 km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.

Fiber Count	Cable Demension(mm)	Cable Weight(kg/km)	Tensile(N)		Crush(N/100mm)		Min.Bend Radius(mm)		Range of Tem(ºC)
Fiber Count	Cable Demension(mm)	Cable Weight(kg/km)	Tensile(N)		Crush(N/100mm)		Min.Bend Radius(mm)		Range of Tem(ºC)
			Long Term	Short Term	Long Term	Short Term	Dynamic	Staic
1~2	6.8	47.0	100	200	500	1000	20D	10D	-20~+60
Note:	All the values in the table, which are for reference only, are subject to change without notice;
	The cable core use the colored coating fiber of 250
	The tensile and crush of the cable are accordance with the values in the table when the strength me
	The minumum bend radius(static) is 15mm when G.657 fiber is used
