Armoured Fiber Optic Patch Cord

Name: Armoured Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 831945695
Availability: InStock
Rating: 4.6 (143 reviews)

Price:	US $ 3-9.9/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Optic Patch cords
Application:	Communication
Certification:	ISO9001
Type:	Single-Mode or Multi-Mode
Connection Structure:	Customed
Core:	Simplex/Duplex
Sheath Material:	LSZH/Ofnr/PVC

Product Description

Descriptions

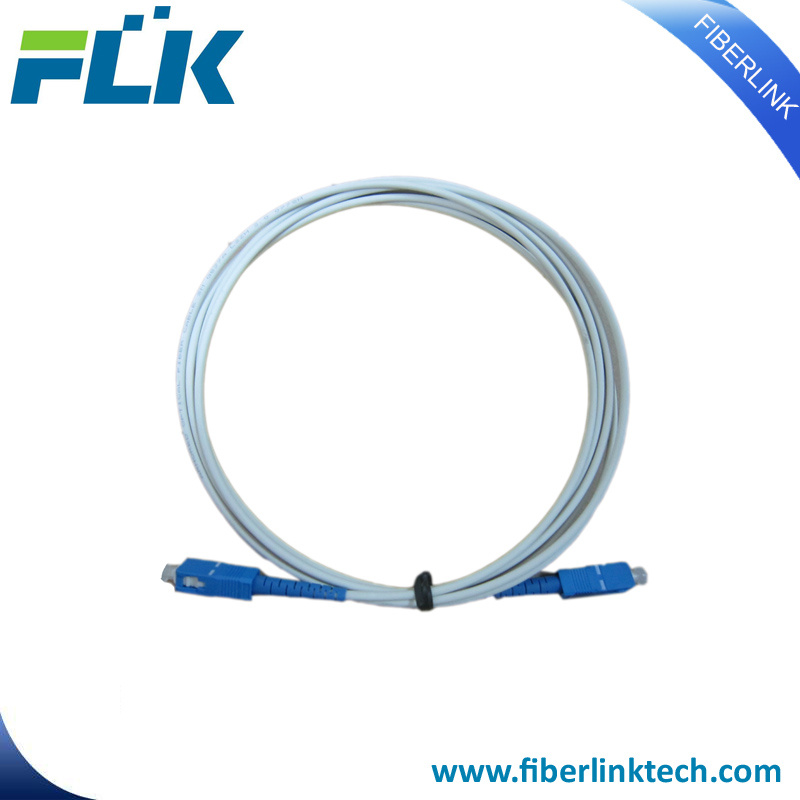

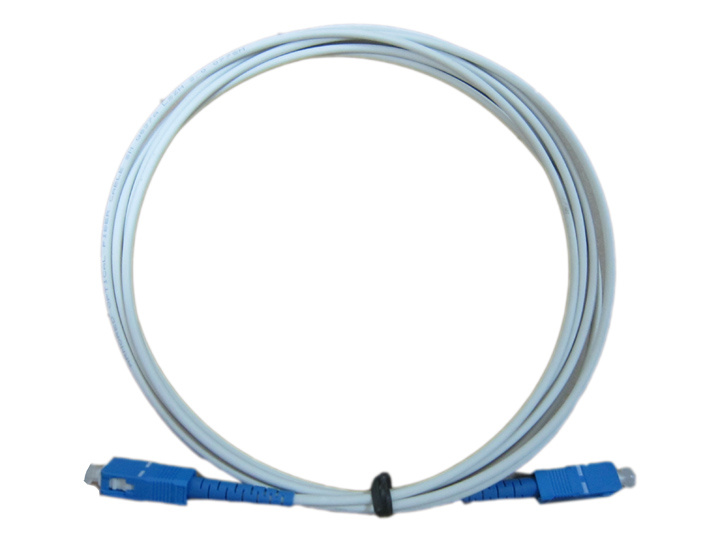

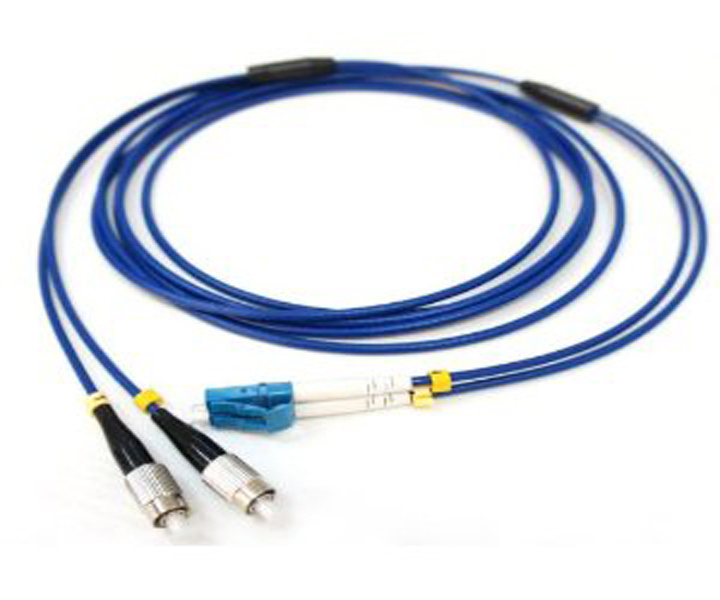

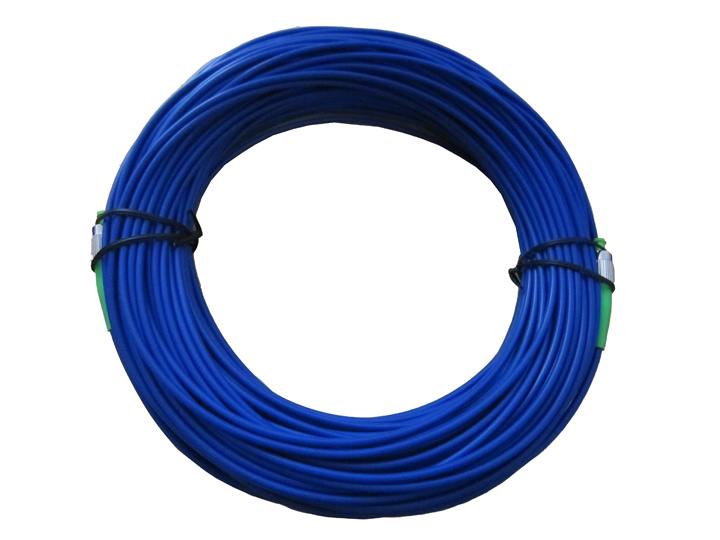

Armoured fiber patch cord is a fiber optic cable used to attach one device to another for signal routing. Armored fiber optic patch cords are with stainless steel tube inside the outer jacket to protect the central unit of the cable. They are strong and flexible, can be bend randomly without being broken. Our armoured fiber patch cords provide flexible interconnection to active equipment, passive optical devices and cross-connects.

Features
Gently and strong safeguard optical fibers for its material of stainless steel
Electric cable-like handling and easy installation
Advanced Technology
Mini armoured-protection
Prevent bite by the rodents
Torsion damage resistance
Strong and flexible, easy to use

Applications
Telecommunications
CATV, LAN, MAN, WAN Test & Measurement
Military industry
Medical

Specification of Armoured Fiber Patch cord

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Loss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag

Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.

Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.

OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
