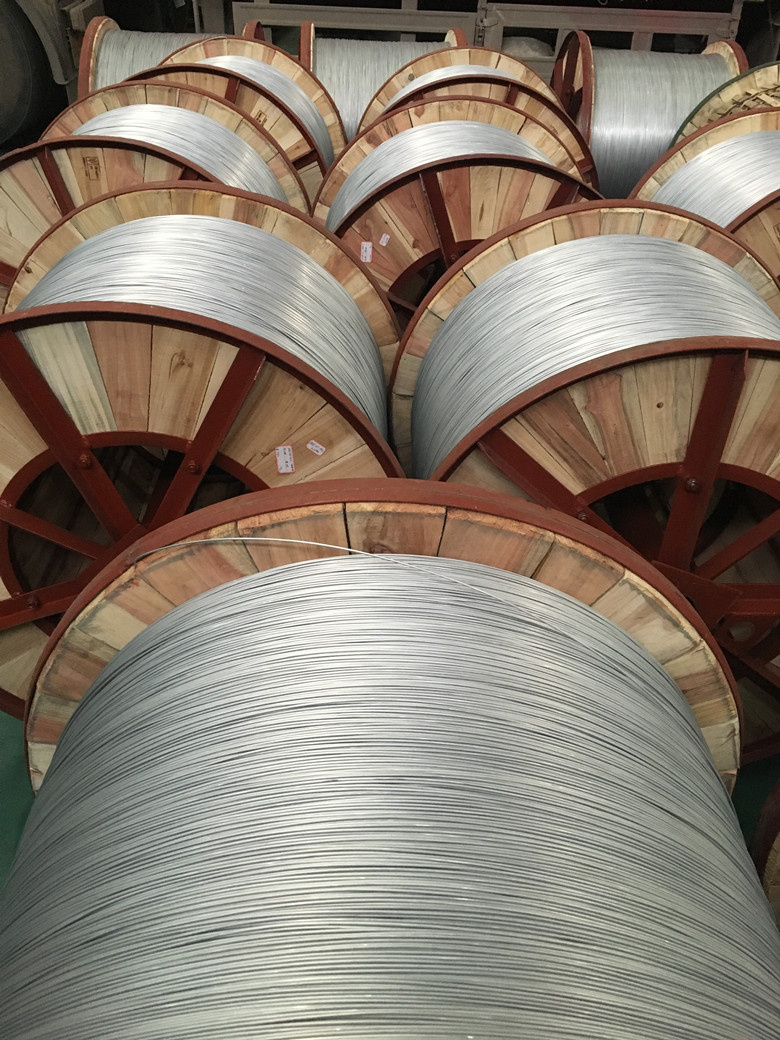

as Single Wire for Power Distribution (Lb 27)
| Price: |
US $ 1050-1300/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T |
| Prod Model: |
lb27 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Iacs: |
20.3% |
| Application: |
Telecommunication |
| Certification: |
RoHS |
| Wire Core Material: |
Aluminium Clad Steel Wire |
| Brand: |
Hubei Longsky |
Product Description

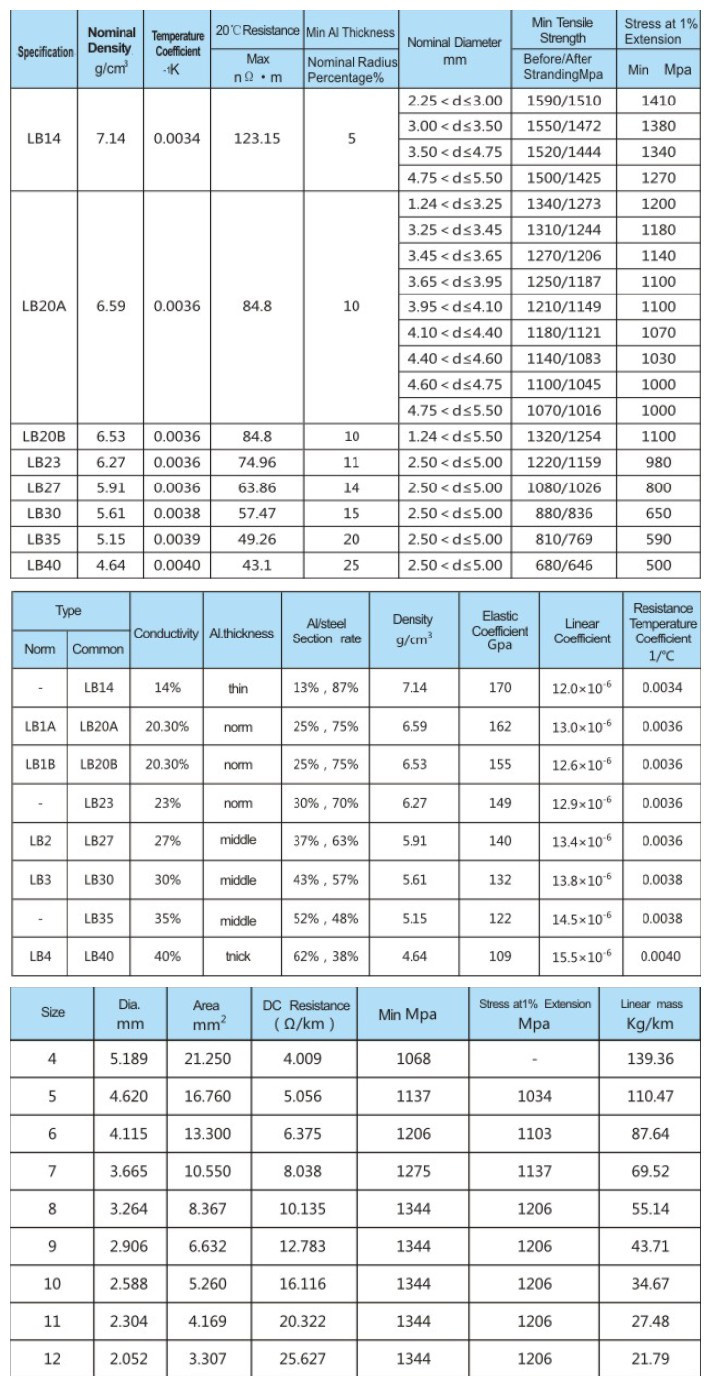

Aluminum clad steel wire is a piece of round wire made of a round steel core clad with a uniform and continuous aluminum layer. By structure ratio of steel and aluminum, aluminum clad steel wire has different grades, LB14, LB20, LB23, LB27, LB30, LB35 and LB40, with corresponding electric conductivities of 14%, 20.3%, 23%, 27%, 30%, 35% and 40% IACS (IACS stands for International Annealed Copper Standard). Featured by high strength, corrosion resistance and high conductivity, etc., aluminum clad steel wire is widely used in coastal areas, volcano areas, salt atmosphere areas and overhead power line used in areas seriously polluted by industrial materials containing SO2, NO and CO2, etc. It's the optimum material for transmission conductor with kilometric span and carrier cable for electrified railways.Application: Composition of Al Clad Strand Wires (ACS), Aluminum Conductors, Al Clad Steel Reinforced (ACSR/AW), OCGW,etc.
Standard:ASTM B 415-92, ASTM B 502-93, AS 1222, IEC61232, JCS389
Why to choose HUBEI LONGSKY :1.Competitive price & On time delivery & Short lead time
2.Strict quality control3. Thorough after-sales service
4.We are the leading manufacturer for ACS & OPGW in China
5.Full range of testing equipments to ensure products' performance
Hubei LongSky Communication Technology Co., Ltd is a High-Tech Enterprises who specializes in Aluminum Clad Steel, Optical Fiber Composite Overhead Ground Wires, Electric Optical Cable and other Composite Materials, with annual comprehensive productive capacities of 35, 000 MT in Aluminum Clad Steel and 10, 000 KM of Optical Cable- OPGW & OPPC.
Hubei LongSky Communication Technology Co., Ltd is wholly belongs to China Academy of Aerospace Electronics Technology (CAAET), located at High-Tech Park of Wuhan Economic and Technological Development Zone, and established in 2001 in which covers an area of 40000 square meters, with 293 staff among with 10% are technicians. With advanced technical production facilities introduced from Britain and Italy, etc, Hubei LongSky satisfies the production conditions for full procedures from steel wire rod quenching to ultrasonic cleaning, continuous aluminum cladding, synchronous transformation, cleaning and rewinding, back-twist and stranding. Through years of rapid development, now, Hubei LongSky is ready to manufacture all series of aluminum clad steel products with an electric conductivity ranging from 14%IACS to 40%IACS, and other types of aluminum clad steel stranded wires. It's the only enterprises which produces Small-Dimension Aluminum Clad Steel Products of High-Conductivity, including model 40%IACS and Diameter-2.0mm, within the industry. Certified by Quality Management System, Occupation Health Safety Management System and Environment Management System, products manufactured by Hubei LongSky are widely applied to Electric Transmission and Distribution Circuits and used as Carrier Cables for Electrified Railways, Power, Transportation, Communication, Telcom, Electric Equipment, Electric Power Station, etc. Our products have been exported to America, Spain, Brazil, India, Korea, Australia, Bangladesh, Iran, Cuba, Thailand, Ethiopia, Nigeria, Sudan, Iraq and Philippines etc. In recently three years, our exported values nearly reached USD15 million per year.
Owing to its superiority of geographical condition, advanced manufacturing technology and economic strength, it has playing an important role in China Electric Power Field, and has been entitled the high grade prestige enterprise and awarded quality certificate of ISO9001, ISO14001 and OHSAS18001.
In order to adapt the request of the market and the enterprise develops, Our company imported international advanced level of manufacturing equipments, such as Bi-metal wire Deforming Line from Italian Frigerio company, Con-clad Con-clad Extrusion Line from BWE in England.
Hubei LongSky Communication Technology Co., Ltd is committed to manufacturing high quality products according to various international standards and specifications, such as IEC, DIN, we would like to establish all sorts of business relationships with customers in domestic and abroad.
In short, every details of the development of Hubei Longsky unremitting pursuit for responsibility and the mission, the eager wishes from the government and the trust and support of all friends and user's. In order to realize the economic efficiency and the social efficiency of double harvest, Hubei Longsky will promise to action, through the high quality service for domestic and overseas power construction and contribution on the construction of the new system of the aerospace science and electrommunication. Hubei Longsky enjoy the extensive cooperation with various circles at home and abroad to achieve common development and create brilliance.
