| Prod Model: |
YET205B |
| Modulation: |
Ask |
| Working Temperature: |
-30-85ºC |
| Transmittion Speed (Kbps): |
2.4 |
| Sensitivity(dBm): |
-105 |
| Frequency: |
315,330,360,433MHz |
| Transmit Distance (M): |
150 |
| Warranty: |
1 Year |
| Delivery Time For Sample: |
1-2 Working Days |
| Delivery Time For Bulk Order: |
7-12 Working Days |
| Sample: |
Avaiable |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Application: |
Car Windows and Doors Controller |
| Transmission Distance: |
150m |
| Voltage: |
3.3-5V |
Product Description
433MHz RF Receiver Module for Auto Remote Door Switch YET205BYET205B,the super heterodyne wireless receiver module which using the wireless RF transceiver and receiver chip, is a good receiver module of ISM frequency . It has higher sensitivity, lower price and made the low-end wireless products get rid of the limit to use the super-regeneration module for the reason of price. And enhancing the stability and reliability of the low-end wireless products; improving the quality and image; strengthening the competitive ability. This module can input the wireless signal and output the data signal on the condition of no external circuit, and the user can develop the wireless products by only the simple decoding circuit. - Brand Name: YET
- Model Number: YET205B
- Frequency: 315MHz/330MHz/360MHz/433MHz optional
- Modulation: ASK
- Working Voltage: 3.3~5V
- Working Temp: -30~85ºC
- Transmittion Speed: 2.4Kbps
- Sensitivity: -105dBM
- Pin data: 1.ANT 2.GND 3.VDD 4.DATA 5.DATA 6.GND
- Applications:Auto remote door switch
Remote door opener
Wireless security alarm
Wireless doorbell
Wireless Controller
Wireless date communicate etc.
- MOQ: 100pcs, accept trial order with less quantity
- Warranty: 1 year
- Delivery: 5-20 working days

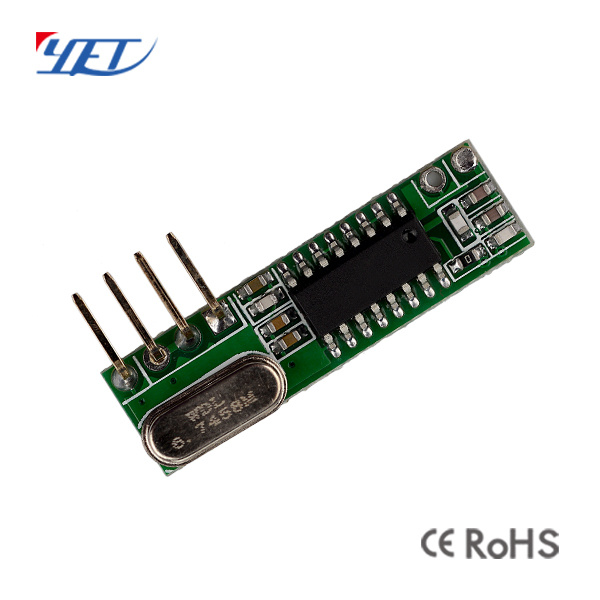

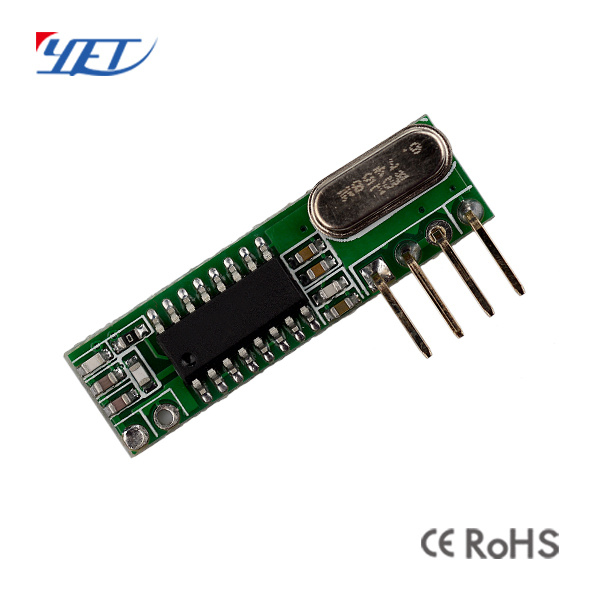

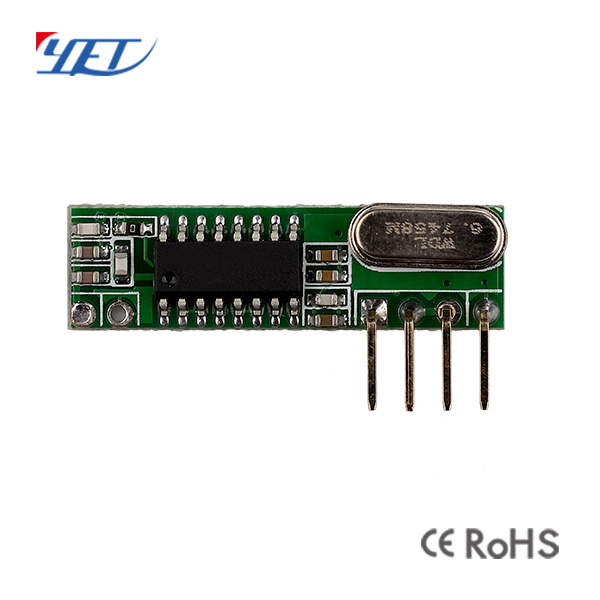

Product Photos
Related Products
Certifications CE & Rohs
Company InformationEstablished in 2005, Shenzhen Yaoertai Technology Development Co., Ltd. specializes in designing, developing, manufacturing and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories.
Our product have won CE and RoHS Certification. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our products are exported to Australia, Latin America, Southeast Asia, North America, the Middle East and Europe.
We welcome OEM and ODM orders. Professional engineer are available to assist you further. Please contact us for possible project
Packing & DeliveryPackaging Details: PC Bag, Blister Package, Paper Box, according to customer's requirements.
Delivery Time: 3-5 working days for 100-500pcs BFT Remote Control 1) Your inquiry will be replied within 12 hours
2) OEM&ODM are provided
3) Keep your ideas and all related information confidential
4) Delivery by air mail or ship according to your request
5) Item: remote control
FAQ
Q1: How can I find a suitable module?
A: Please show us the frequency (433.92MHz is the most common frequency) and chip (fixed code, learning, rolling code or duplicator). OR take a clear picture of the PCB board, and pass it to us, we will help you find it and recommend the right items.
Q2: May I have samples for testing?
A: Yes, samples are available and they will be ready in 3 working days, please check the model and code & frequency needed.
Q3: How to program it?
A: The programming is different from code to codes, we can provide you a manual or video.
Shenzhen yaoertai Technology Co., Ltd established in 2005 and specialized in home automation remote control, controller, receiver module and other security accessories.

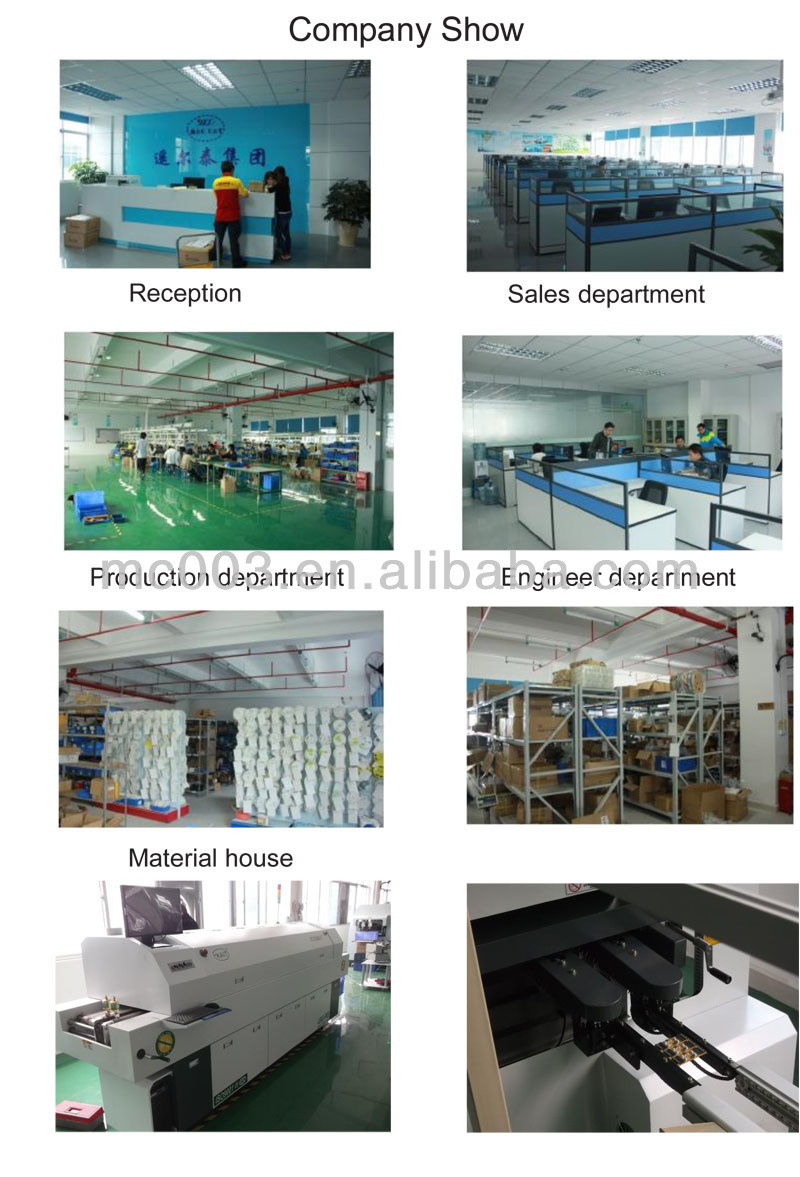

We always make great efforts to develop new products to meet different market and demands. Our factory Located in Shenzhen city so we can enjoy convenient transportation. Our company occupies an area of 1, 000 M2. There are Six production flows in our factory, which is SMD, Reflow Soldering, Parts Inserting, Post Soldering, assembly and Packing. Strictly quality control is performed in every procedure from material sourcing, processing, and testing to packing. Our annual production capacity is 4, 000, 000PCS and all our products certified with CE, RoHS.
