Name: Assembly RJ45 Connector 8p8c RJ45 Cable Connector
Brand: all-electronics-online.com
SKU: 780224395
Availability: InStock
Rating: 4.5 (95 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP-24-RJ45-S01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Specification:	0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter Range:	Od5.5-7mm
Connector Type:	RJ45 8p8c
Operating Voltage:	30V
Rated Current:	1.5A
Gender:	Female
Application:	UHF

Product Description

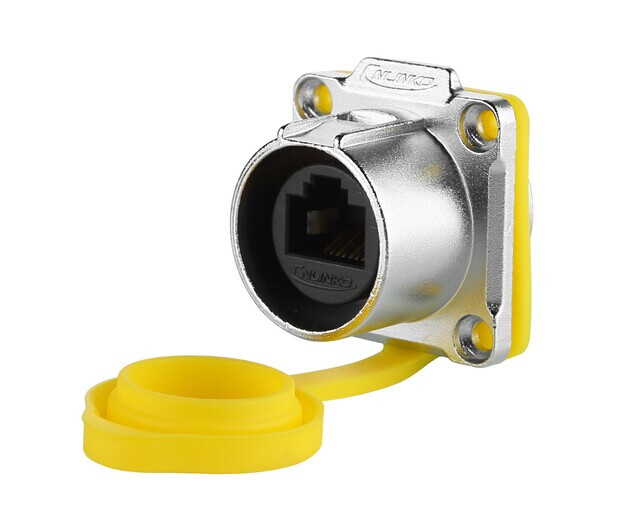

Assembly RJ45 Connector 8P8C RJ45 Cable Connector

LP-24-RJ45-S01 RJ45 Female socket
Connecting mode:	Plug/Unplug
Protection level:	IP65/IP67
Cable specification:	0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	8pin
Current rating(A):	1.5A
Operating voltage(AC.V.rms):	/
Withstand voltage(AC.V)1min:	/
Contact resistance:	30
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Temperature rise:	/
Produce type:	splice connectors
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packaging & Shipping:

Normally, our price is based on our box packing for splice connectors;
Customized packing is welcome, MOQ of printing customized box is 1,000 pcs/model for splice connectors
Delivery Detail: 3-7 working days after received deposit for splice connectors;
You may choose our shipping partner or your own partner for splice connectors;
100% T/T in advance is required after confirming the order for splice connectors.

Our Services:

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service.
We have professional quality control system and R&D department to strictly manufacture each product for splice connectors;
100,000 pcs per month for splice connectors;
National level laboratory, and have flexible production line, to make quick action to urgent customized needs for waterproof wire connectors;
We will supply the best service to you.
Eunice Tan Mob:+86-18312450225

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
