Asset Management System GP4000

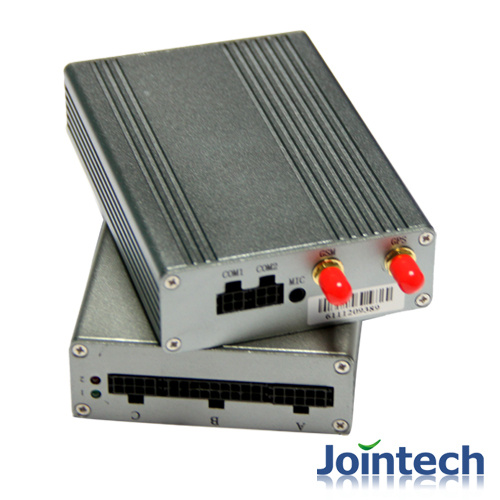

Name: Asset Management System GP4000
Brand: all-electronics-online.com
SKU: 674216172
Availability: InStock
Rating: 5 (55 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GP4000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Guangdong, China (Mainland)
Brand Name:	Jointech
Model Number:	Gp4000
Material:	Aluminium Alloy

Product Description

GPS Vehicle tracker
1. Track by SMS/GPRS
2. SOS/Geo-fence/Speeding
3. History data storage(43200PCS)
4. Domain name supporting
5. GSM tracking adapt to RFID/Camera/LCD display
6. Its an optimal cost performance for fleet management and mobile asset track

Features:
SMS, GPRS TCP/UDP communication
Fuel consumption monitor
14-channel vehicle signal alarm
Blind area data re-report, supports 360-point blind area data and 21, 600 pieces history data
Data transmitted unvarnished
Remote control fuel and power break
Remote configuration
Real-time tracking (time, distance interval or intelligent mode)
Intelligent power management
Power low/lost alarm, backup battery low alarm
Built-in voice wiretapping
16 Geo-fencing reports
Journey report wireless download
GPS mileage report/electronic mileage report
GPS antenna disconnect/cut/short circuit alarm
Up to 120, 000 data log storage
Hardware specifications:
Dimension: 121 x 82 x 29mm
Weight: 0.85kg
GPS receiver: 20-channel or above GPS receiver
Datum: WGS-84
Power source: 10 to 33V DC
Power consumption: Less than 100mA at 12V DC in operating mode
Operating temperature: -40 to +85
Communication: GSM 850/900/1, 800/1, 900MHz
Programmable input port:
Port A: Power and vehicle control
Port B: Detecting 14-channel vehicle signal
Port C: Connect to additional peripheral, such as RFID, scanner, sensor
Input: 14-channel
Output: 8-channel
Buffer memory: 128KB
Built-in memory: 2MB
Default baud rate: 9, 600BPS
Backup battery: 350mAh
Peripherals: Supports at most 2 additional peripherals at the same time

Optional items:
Mobile data terminal
RFID reader
Thermal sensor (at most 12 channels)
CCD camera (at most 8 channels)
Scanner
Applications:
Vehicle tracking
Vehicle data warehouses
Fleet management
Vehicle securities/recoveries/anti-hijacks
Mobile asset tracking
Location based services
Taxi groups

Basic Function	TCP/UDP/SMS Transmission Mode	TCP/UDP/SMS
	Date automatic upload	Time interval/
	Date flow control/Power saving mode	Factory setting
		Definition by user
		GPS module power off
		GPS and GSM module power off
	Management time of uploading	Time/Day/Week
	Mileage statistics	GPS/Electronic
	Remotely listen-in	build in
	Geo-fence	64kinds
	Alarm kinds	GPRS/SMS/Email
	Domain name supporting
	Blind area data supplementary uploading
	History data storage(43200 pcs)
	GPS antenna open/short detection
	Self-check, signal Input, Power Consumption
Function	Cut fuel supply
Control Function I/O Port	6 Switch signal input(4high level trigger, 2 low level trigger)
	1 Analog signal input(0~5V)
	1 Pulse signal input(< 3.8V, 2K Hz trigger)
	5 Switch signal output(< 500mA)
	1 Serial port
Parameter	Dimensions(LWH)	1037126MM
	Weight	750g(including Standard Accessories)
	Power Consumption	60mA~100mA
	Input Voltage	10~30V
	Backup Power	8.4V 400mAh Ni-MH battery
	GPS	SIRF Star 3
	GSM	850/900/1800Mhz
