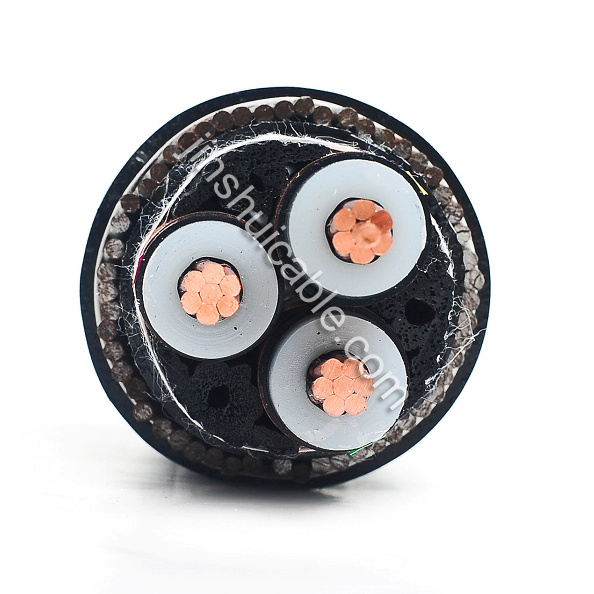

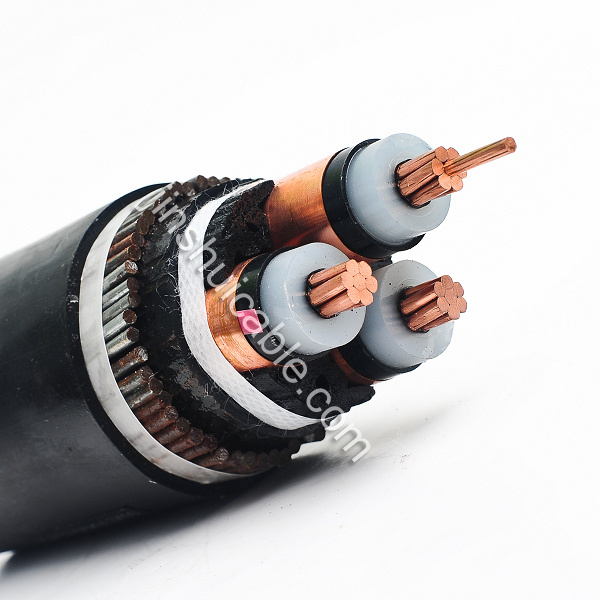

ASTM Standard XLPE Insulated Swa Power Cable

ASTM Standard XLPE Insulated Swa Power Cable
Price: NegotiableKM
Trade Terms: FOB,CFR,CIF
Min Order: 10KM
Pay Type: L/C,T/T,D/P
Prod Model: YJV, YJLV, YJV22, YJLV22, YJV32, YJLV32
Markets: South America,Southeast Asia,Africa,Mid East
Delivery Time: 20 Working Days
MOQ: 10km
Application: Power Station
Voltage: Low and Medium Voltage Cable
Current: DC Cable
Insulation Material: XLPE
Certification: CE

Product Description

Instruction for XLPE power cable
XLPE insulated power cable has a number of advantages over paper insulated and PC insulated cable.XLPE cable has high electric stength,mechanical strength,high-aging resisting,environmental stress resisting anti-chemical corrosion,and it is simple chonstruction,using convenient and high operating of long term temperature.It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide,silane and irradiation crosslinking).The flame-retardant cable covers all kinds of low-smoke low-halogen,low-smoke halogen free,and non-smoke nonhalogented  and three classes of A,B,C.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332, and IEC 60754.Some of indexes are superior to above international Standard IEC.
XLPE cable has higher long-term working temperature and greater current rating at the same environment.


TypeDesignationApplications
YJV

Copper conductor, XLPE insulated, PVC sheathed power cableFor laying indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not permissible to lay in magnetic duct.
YJLVAluminium conductor, XLPE insulated, PVC sheathed power cable
YJY

Copper conductor, XLPE insulated, PE sheathed power cable
YJLYAluminium conductor, XLPE insulated, PE sheathed power cable
YJV22Copper conductor, XLPE insulated, steel tape armoured, PVC sheathed power cableFor laying indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
YJLV22Aluminium conductor, XLPE insulated, steel tape armoured, PVC sheathed power cable
YJV23Copper conductor, XLPE insulated, steel tape armoured, PE sheathed power cable
YJLV23Aluminium conductor, XLPE insulated, steel tape armoured, PE sheathed power cable
YJV32Copper conductor, XLPE insulated, steel wire armoured, PVC sheathed power cableFor laying indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
YJLV32Aluminium conductor, XLPE insulated, steel wire armoured, PVC sheathed power cable
YJV33Copper conductor, XLPE insulated, steel wire armoured, PE sheathed power cable
YJLV33Aluminium conductor, XLPE insulated, steel wire armoured, PE sheathed power cable
