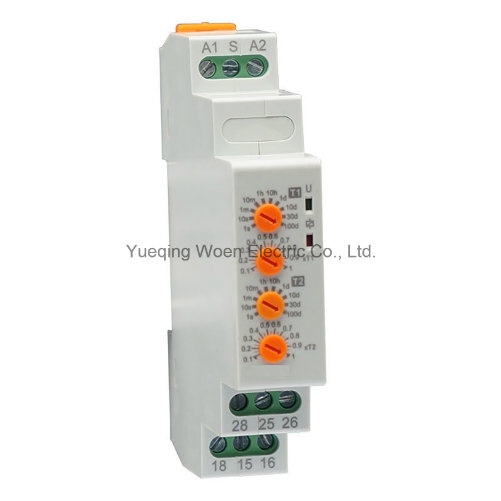

Asymmetric Cycler Time Relay

Asymmetric Cycler Time Relay
Price: US $ 8.5/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram
Prod Model: TR/AC23

Product Description



Feature
1. 1 module DIN rail housing
2.  Microprocessor technology controller
3.  Cycling pulse first/cycling pause first

4.  10 selectable time range
5.  Fine adjustment of selected time range
6. Green LED indication for supply/timing status
7. Red LED indication for relay status
8. Conforms to IEC 61812


Technical data
ModelTR/AC11TR/AC23
Supply terminalsA1,A2
Supply voltage AC220V                           AC/DC 24-240V
Rated frequency50/60Hz
Time range0.1s-100days
setting accuracy≤5%
Repetition accuracy≤0.2%
Output contacts1C/O2C/O
Current rating8A/AC1
Contacts capacityAC-15: 2A
Insulation voltage250V
Mechanical life10000000
Electrical life1000000
Protection degreeIP20
Pollution degree3
Altitude≤2000m
MountingTH-35 Rail
Founded by engineers who worked in the field of electronic, mechanical and industrial design for over 10 several years, Reletek is a professional manufacturer of electronic modular devices, which bring new possibilities for home and office controlling, monitoring and security, as well as for industrial process control.

Development and modern technology are the pillars of our work, which is highly appreciated by our customers, because all products and services can be customized according to individual requirements - you get not just a product, but a long-term solution.

Thanks to high quality production and service on customers, Reletek had partners from Spain, Australia, Russia, Ukraine, Algeria and Egypt etc.
