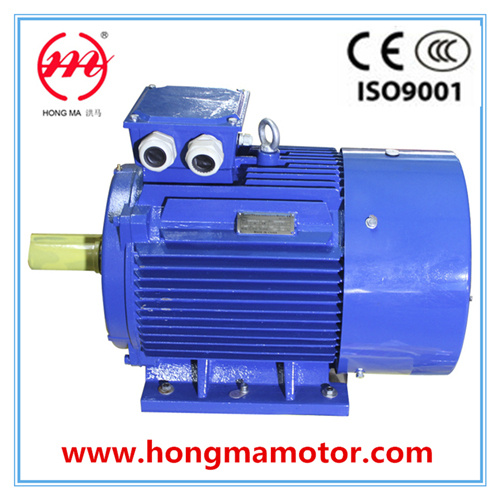

| Prod Model: |
2HMI180L-4-22KW |
| Frame Size Range: |
180 |
| Rated Voltage: |
220/380V, 380/660V, 230/400V, 400V/690V |
| Rated Freqency: |
50Hz, 60Hz |
| Rated Power Range: |
22kw |
| Protection Class: |
IP44, IP54, IP55 |
| Insulation Class: |
B/F/H |
| Mounting Type: |
B3, B5, B14, B35multi and Pad Mounting |
| Ambient Temperature: |
-20~+40 °c |
| Altitude: |
Not Exceed 1000m |
| Origial Place: |
Zhejiang, China |
| Application: |
Universal |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Brand: |
Hongma |
| Certification: |
Ce |
Product Description
Product Description
HMI-IE2 (2HMI)Cast Iron Series Premium efficiency Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor.The HMI Series Motors are enhanced performance motors built in light weight, all cast iron frames. 2HMI Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 80 to 355. 2HMI Cast Iron Series Premium efficiency Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard.
Technical Data
| Frame Size | 180 |
| Housing Material | Cast Iron |
| Output Power | 22KW |
| Pole | 4 |
| Terminal Box | Top Mounted |
| Protection Class | IP44,IP54,IP55 |
| Insuation Class | B;F;H |
| Installation Method | B5,B5,B14,B35multi and Pad Mounting |
| Cooling Method | IC411 |
| Efficiect Standard | IE2 |
| Duty | S1 |
| Type | (kW) | η(%) | Cosφ | r/min | Rated current(A) | Ts/Tn | | Is/In | Weight
(C.I) |
| 380 | 400 | 415 |
| 2HMI-IE2 | 801-2 | 0.75 | 77.4 | 0.83 | 2875 | 1.8 | 1.7 | 1.6 | 2.5 | 3 | 5.3 | 18 |
| 2HMI-IE2 | 802-2 | 1.1 | 79.6 | 0.84 | 2888 | 2.5 | 2.4 | 2.3 | 3.2 | 3.8 | 7 | 19 |
| 2HMI-IE2 | 90S-2 | 1.5 | 81.3 | 0.84 | 2887 | 3.3 | 3.2 | 3.1 | 2.7 | 3.5 | 7.1 | 25 |
| 2HMI-IE2 | 90L-2 | 2.2 | 83.2 | 0.85 | 2889 | 4.7 | 4.5 | 4.3 | 2.4 | 3 | 6.9 | 28 |
| 2HMI-IE2 | 100L-2 | 3 | 84.6 | 0.87 | 2890 | 6.2 | 5.9 | 5.7 | 3.2 | 4 | 8 | 34 |
| 2HMI-IE2 | 112M-2 | 4 | 85.8 | 0.88 | 2901 | 8.0 | 7.6 | 7.4 | 2.5 | 3 | 7.5 | 45 |
| 2HMI-IE2 | 132S1-2 | 5.5 | 87 | 0.88 | 2915 | 10.9 | 10.4 | 10.0 | 2.7 | 3.5 | 7.5 | 67 |
| 2HMI-IE2 | 132S2-2 | 7.5 | 88.1 | 0.88 | 2915 | 14.7 | 14.0 | 13.5 | 2.4 | 3.3 | 7.5 | 73 |
| 2HMI-IE2 | 160M1-2 | 11 | 89.4 | 0.89 | 2930 | 21.0 | 20.0 | 19.2 | 2.2 | 2.9 | 7.6 | 123 |
| 2HMI-IE2 | 160M2-2 | 15 | 90.3 | 0.89 | 2940 | 28.4 | 26.9 | 26.0 | 2.3 | 3 | 7.6 | 127 |
| 2HMI-IE2 | 160L-2 | 18.5 | 90.9 | 0.90 | 2940 | 34.4 | 32.6 | 31.5 | 2.3 | 3.1 | 7.4 | 158 |
| 2HMI-IE2 | 180M-2 | 22 | 91.3 | 0.90 | 2945 | 40.7 | 38.6 | 37.2 | 2.8 | 3 | 8.2 | 190 |
| 2HMI-IE2 | 200L1-2 | 30 | 92 | 0.90 | 2950 | 55.1 | 52.3 | 50.4 | 2.6 | 3 | 7.8 | 256 |
| 2HMI-IE2 | 200L2-2 | 37 | 92.5 | 0.90 | 2955 | 67.5 | 64.2 | 61.8 | 2.6 | 3 | 7.7 | 265 |
| 2HMI-IE2 | 225M-2 | 45 | 92.9 | 0.90 | 2975 | 81.8 | 77.7 | 74.9 | 2.4 | 2.6 | 7.5 | 332 |
| 2HMI-IE2 | 250M-2 | 55 | 93.2 | 0.90 | 2975 | 99.6 | 94.6 | 91.2 | 2.3 | 2.8 | 7.1 | 423 |
| 2HMI-IE2 | 280S-2 | 75 | 93.8 | 0.90 | 2985 | 135.0 | 128.2 | 123.6 | 2.5 | 2.8 | 7.4 | 592 |
| 2HMI-IE2 | 280M-2 | 90 | 94.1 | 0.91 | 2972 | 159.7 | 151.7 | 146.2 | 2.8 | 2.8 | 7.6 | 690 |
| 2HMI-IE2 | 315S-2 | 110 | 94.3 | 0.91 | 2982 | 194.8 | 185.0 | 178.3 | 2.4 | 2.9 | 6.9 | 1110 |
| 2HMI-IE2 | 315M-2 | 132 | 94.6 | 0.91 | 2982 | 233.0 | 221.3 | 213.3 | 2.6 | 2.9 | 7.1 | 1222 |
| 2HMI-IE2 | 315L1-2 | 160 | 94.8 | 0.92 | 2979 | 278.7 | 264.8 | 255.2 | 2.5 | 2.8 | 7.1 | 1230 |
| 2HMI-IE2 | 315L2-2 | 200 | 95 | 0.92 | 2979 | 347.7 | 330.3 | 318.4 | 2.5 | 2.8 | 6.9 | 1270 |
| 2HMI-IE2 | 355M-2 | 250 | 95.0 | 0.92 | 2979 | 434.6 | 412.9 | 398.0 | 2.5 | 2.8 | 7 | 1800 |
| 2HMI-IE2 | 355L-2 | 315 | 95.0 | 0.92 | 2979 | 547.6 | 520.2 | 501.4 | 2.5 | 2.9 | 6.9 | 1900 |
| 2HMI-IE2 | 802-4 | 0.75 | 79.6 | 0.76 | 1428 | 1.9 | 1.8 | 1.7 | 2.4 | 2.9 | 5 | 18 |
| 2HMI-IE2 | 90S-4 | 1.1 | 81.4 | 0.77 | 1431 | 2.7 | 2.5 | 2.4 | 3 | 3.5 | 6 | 25 |
| 2HMI-IE2 | 90L-4 | 1.5 | 82.8 | 0.79 | 1438 | 3.5 | 3.3 | 3.2 | 3.2 | 3.8 | 6.8 | 31 |
| 2HMI-IE2 | 100L1-4 | 2.2 | 84.3 | 0.81 | 1441 | 4.9 | 4.7 | 4.5 | 3 | 3.5 | 7 | 37 |
| 2HMI-IE2 | 100L2-4 | 3 | 85.5 | 0.82 | 1429 | 6.5 | 6.2 | 6.0 | 2.6 | 3.3 | 7 | 40 |
| 2HMI-IE2 | 112M-4 | 4 | 86.6 | 0.82 | 1444 | 8.6 | 8.1 | 7.8 | 3.5 | 4 | 7.5 | 46 |
| 2HMI-IE2 | 132S-4 | 5.5 | 87.7 | 0.83 | 1456 | 11.5 | 10.9 | 10.5 | 2.2 | 2.8 | 6.4 | 73 |
| 2HMI-IE2 | 132M-4 | 7.5 | 88.7 | 0.84 | 1455 | 15.3 | 14.5 | 14.0 | 2.4 | 3 | 7 | 88 |
| 2HMI-IE2 | 160M-4 | 11 | 89.8 | 0.84 | 1470 | 22.2 | 21.0 | 20.3 | 2.5 | 2.9 | 6.9 | 134 |
| 2HMI-IE2 | 160L-4 | 15 | 90.6 | 0.85 | 1470 | 29.6 | 28.1 | 27.1 | 2.5 | 3 | 7.5 | 153 |
| 2HMI-IE2 | 180M-4 | 18.5 | 91.2 | 0.86 | 1475 | 35.8 | 34.0 | 32.8 | 2.6 | 3.1 | 7.8 | 194 |
| 2HMI-IE2 | 180L-4 | 22 | 91.6 | 0.86 | 1475 | 42.4 | 40.3 | 38.9 | 2.6 | 3.1 | 7.5 | 198 |
| 2HMI-IE2 | 200L-4 | 30 | 92.3 | 0.86 | 1480 | 57.4 | 54.6 | 52.6 | 2.4 | 2.9 | 7.1 | 293 |
| 2HMI-IE2 | 225S-4 | 37 | 92.7 | 0.87 | 1485 | 69.7 | 66.2 | 63.8 | 2.5 | 2.7 | 7.5 | 298 |
| 2HMI-IE2 | 225M-4 | 45 | 93.1 | 0.87 | 1485 | 84.4 | 80.2 | 77.3 | 2.5 | 2.8 | 7.6 | 335 |
| 2HMI-IE2 | 250M-4 | 55 | 93.5 | 0.87 | 1480 | 102.7 | 97.6 | 94.1 | 2.6 | 2.7 | 7.3 | 462 |
| 2HMI-IE2 | 280S-4 | 75 | 94 | 0.87 | 1485 | 139.3 | 132.4 | 127.6 | 2.7 | 2.7 | 7.6 | 582 |
| 2HMI-IE2 | 280M-4 | 90 | 94.2 | 0.87 | 1489 | 166.9 | 158.5 | 152.8 | 2.7 | 2.7 | 7.5 | 717 |
| 2HMI-IE2 | 315S-4 | 110 | 94.5 | 0.88 | 1492 | 201.0 | 190.9 | 184.0 | 2.7 | 2.9 | 7.1 | 1128 |
| 2HMI-IE2 | 315M-4 | 132 | 94.7 | 0.88 | 1486 | 240.7 | 228.6 | 220.4 | 2.7 | 2.9 | 7.3 | 1201 |
| 2HMI-IE2 | 315L1-4 | 160 | 94.9 | 0.89 | 1486 | 287.8 | 273.4 | 263.6 | 3 | 3 | 7.4 | 1210 |
| 2HMI-IE2 | 315L2-4 | 200 | 95.1 | 0.89 | 1487 | 359.0 | 341.1 | 328.7 | 3 | 3 | 7.6 | 1368 |
| 2HMI-IE2 | 355M-4 | 250 | 95.1 | 0.90 | 1485 | 443.8 | 421.6 | 406.4 | 2.8 | 2.9 | 7.5 | 1740 |
| 2HMI-IE2 | 355L-4 | 315 | 95.1 | 0.90 | 1490 | 559.2 | 531.2 | 512.0 | 2.6 | 2.8 | 7.4 | 1800 |
| 2HMI-IE2 Series Tech Data |
| Type | (kW) | η(%) | Cosφ | r/min | Rated current(A) | Ts/Tn | | Is/In | Weight
(C.I) |
| 380 | 400 | 415 |
| 2HMI-IE2 | 90S-6 | 0.75 | 75.9 | 0.72 | 944 | 3.4 | 2.0 | 1.9 | 2.2 | 2.4 | 4.5 | 24 |
| 2HMI-IE2 | 90L-6 | 1.1 | 78.1 | 0.73 | 928 | 4.7 | 2.8 | 2.7 | 2.4 | 2.6 | 4.5 | 29 |
| 2HMI-IE2 | 100L-6 | 1.5 | 79.8 | 0.75 | 939 | 6.2 | 3.6 | 3.5 | 1.8 | 2.2 | 4.2 | 33 |
| 2HMI-IE2 | 112M-6 | 2.2 | 81.8 | 0.76 | 936 | 8.7 | 5.1 | 4.9 | 2.3 | 2.8 | 4.5 | 45 |
| 2HMI-IE2 | 132S-6 | 3 | 83.3 | 0.76 | 960 | 11.7 | 6.8 | 6.6 | 1.8 | 2.4 | 4.5 | 63 |
| 2HMI-IE2 | 132M1-6 | 4 | 84.6 | 0.76 | 957 | 15.3 | 9.0 | 8.7 | 2.3 | 2.7 | 5 | 75 |
| 2HMI-IE2 | 132M2-6 | 5.5 | 86 | 0.77 | 962 | 20.5 | 12.0 | 11.6 | 1.9 | 2.8 | 5.5 | 86 |
| 2HMI-IE2 | 160M-6 | 7.5 | 87.2 | 0.77 | 975 | 27.5 | 16.1 | 15.5 | 2 | 3 | 6.5 | 128 |
| 2HMI-IE2 | 160L-6 | 11 | 88.7 | 0.78 | 975 | 39.3 | 22.9 | 22.1 | 2.4 | 3.3 | 7.5 | 159 |
| 2HMI-IE2 | 180L-6 | 15 | 89.7 | 0.81 | 975 | 51.1 | 29.8 | 28.7 | 2 | 2.7 | 6.4 | 209 |
| 2HMI-IE2 | 200L1-6 | 18.5 | 90.4 | 0.81 | 985 | 62.7 | 36.5 | 35.1 | 2.3 | 3 | 7 | 222 |
| 2HMI-IE2 | 200L2-6 | 22 | 90.9 | 0.83 | 980 | 72.3 | 42.1 | 40.6 | 2.3 | 2.8 | 7 | 267 |
| 2HMI-IE2 | 225M-6 | 30 | 91.7 | 0.84 | 985 | 96.9 | 56.2 | 54.2 | 2.2 | 2.7 | 6.5 | 282 |
| 2HMI-IE2 | 250M-6 | 37 | 92.2 | 0.86 | 985 | 116.1 | 67.4 | 64.9 | 2.5 | 2.7 | 6.9 | 443 |
| 2HMI-IE2 | 280S-6 | 45 | 92.7 | 0.86 | 990 | 140.5 | 81.5 | 78.5 | 2.2 | 2.4 | 7 | 566 |
| 2HMI-IE2 | 280M-6 | 55 | 93.1 | 0.86 | 994 | 171.2 | 99.2 | 95.6 | 2.4 | 2.5 | 7.1 | 631 |
| 2HMI-IE2 | 315S-6 | 75 | 93.7 | 0.86 | 992 | 232.4 | 134.3 | 129.5 | 2.8 | 3 | 7.3 | 1140 |
| 2HMI-IE2 | 315M-6 | 90 | 94 | 0.86 | 991 | 278.0 | 160.7 | 154.9 | 2.7 | 2.9 | 7.1 | 1207 |
| 2HMI-IE2 | 315L1-6 | 110 | 94.3 | 0.86 | 991 | 338.0 | 195.8 | 188.7 | 2.9 | 2.9 | 7.4 | 1234 |
| 2HMI-IE2 | 315L2-6 | 132 | 94.6 | 0.87 | 990 | 400.9 | 231.5 | 223.1 | 3 | 3.1 | 7.6 | 1320 |
| 2HMI-IE2 | 355M1-6 | 160 | 94.8 | 0.88 | 990 | 480.4 | 276.8 | 266.8 | 3.1 | 3.1 | 7.6 | 1550 |
| 2HMI-IE2 | 355M3-6 | 200 | 95 | 0.88 | 991 | 600.5 | 345.3 | 332.8 | 3 | 3 | 7.8 | 1700 |
| 2HMI-IE2 | 355L2-6 | 250 | 95.0 | 0.88 | 992 | 750.7 | 431.6 | 416.0 | 3.1 | 3 | 7.7 | 1900 |
Connection:
Power under 3KW selects Star connection;Power up 3KW selects Delta connection
Package
Frame NO. 80--132 :Package by carton box and then packed by wooden box
Frame NO.160 and above:one wooden box per set.
