Ats1 Series Automatic Transfer Switch

Prod Model:	ATS1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Demision:	Customized
Specification:	Customized
Design:	Customized
Breaking Capacity:	Low
Type:	Temperature Fuse
Usaga:	Low Voltage

Product Description

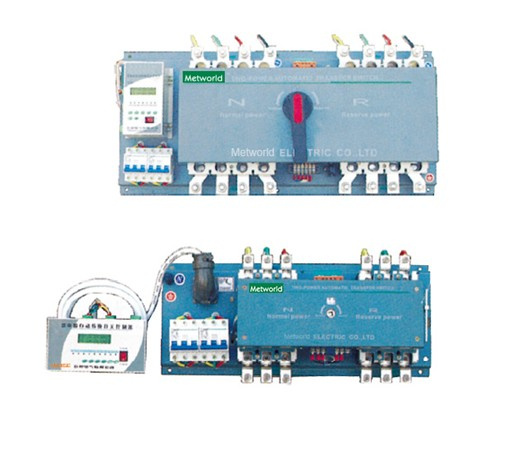

Ats1 Series Automatic Transfer Switch

ATS1 series automatic transfer switch (ATS) is suitable for the transfer between two Power sources, common source (power supply I) and standby power supply (power supply II ), whose rated voltage is below 50Hz, 400V (AC) when one power Supply malfunctions to assure the safe, and stable power supply.
The setting mainly Used for hospital, shopping center, bank, and chemical industry, metallurgy, high Building, military facilities etc important situation where power breaking can't be Allowed. Standard: IEC60947-6-1, GB14048.11-2002, etc.

Model	MCCB Applied	No  of  pole  and  short circuit  breaking  capacity	Rated  current	L	M
ATS1-63	MGM1-63	3  Pole(L, M), 4  Pole	10, 16, 20, 25, 32, 40, 50, 63	25	50
ATS1-100	MGM1-100	3  Pole  (L, M, H), 4  Pole	10, 16, 20, 25, 32, 40, 50, 63, 80, 100	35	50
ATS1-160	MGM1-160	3  Pole  (L, M, H), 4  Pole	100, 125, 140.160	35	50
ATS1-225	MGM1-225	3  Pole  (L, M, H), 4  Pole	100, 125, 140, 160, 180, 200, 225	35	50
ATS1-400	MGM1-400	3  Pole  (L, M, H), 4  Pole	225, 250, 315, 350, 400	50	65
ATS1-630	MGM1-630	3  Pole  (L, M, H), 4  Pole	400, 500, 630	50	65
ATS1-800	MGM1-800	3  Pole  (L, M, H), 4  Pole	630, 700, 800	50	65

Shipping:

1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
We provide 1 year warranty.
