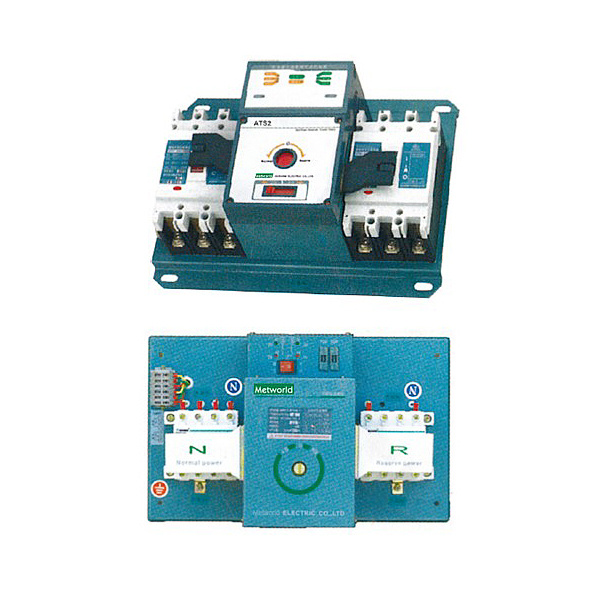

Ats2 Series Automatic Transfer Switch

Prod Model:	ATS2, etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
No. Of Pole:	3 Pole (L, M, H), 4 Pole
Color:	Customize
Design:	Customize
Standards:	IEC
Application:	MCCB
Current:	10-800A
Capacity:	L, M
Series:	ATS2-Xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Other Parameter:	Reference of Catalog
Colour:	Green
Function:	Industry, Turn Switch, Dimmer Switch, Windscreen Wiper
Structure:	Power Built-in Type
Usage:	Control Switch
Contact Type:	Type c Contact
Detection Method:	Correlation Type
Number Of Switch:	Multi Control Switch
Pole:	3, 4
Rated Continuous Current:	All

Product Description

ATS2 series automatic transfer switch (ATS) is suitable for the transfer between two Power sources, common source (power supply I) and standby power supply (power Supply II ), whose rated voltage is below 50Hz, 400V (AC) when one power supply Malfunctions to assure the safe, and stable power supply. The setting mainly used For hospital, shopping center, bank, and chemical industry, metallurgy, high building, Military facilities etc important situation where power breaking can't be allowed.
Standard: IEC60947-6-1, GB14048.11-2002, etc.

Model	MCCB Applied	No.  of  pole  and  short circuit  breaking  capacity	Rated  current	L	M
ATS2-63	MGM1-63	3  Pole(L, M), 4  Pole	10, 16, 20, 25, 32, 40, 50, 63	25	50
ATS2-100	MGM1-100	3  Pole  (L, M, H), 4  Pole	10, 16, 20, 25, 32, 40, 50, 63, 80, 100	35	50
ATS2-160	MGM1-160	3  Pole  (L, M, H), 4  Pole	100, 125, 140.160	35	50
ATS2-225	MGM1-225	3  Pole  (L, M, H), 4  Pole	100, 125, 140, 160, 180, 200, 225	35	50
ATS2-400	MGM1-400	3  Pole  (L, M, H), 4  Pole	225, 250, 315, 350, 400	50	65
ATS2-630	MGM1-630	3  Pole  (L, M, H), 4  Pole	400, 500, 630	50	65
ATS2-800	MGM1-800	3  Pole  (L, M, H), 4  Pole	630, 700, 800	50	65

Shipping:
1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
We provide 1 year warranty.

Related products:

We are a professional art production plan promotion company, our production line can be customized size according to the customer's  workshop and provide worker training in assembly process, detection technology and so on , also provides products customized development and all of the parts of MCB.
RCBO,MCCB,production line,testing line.
