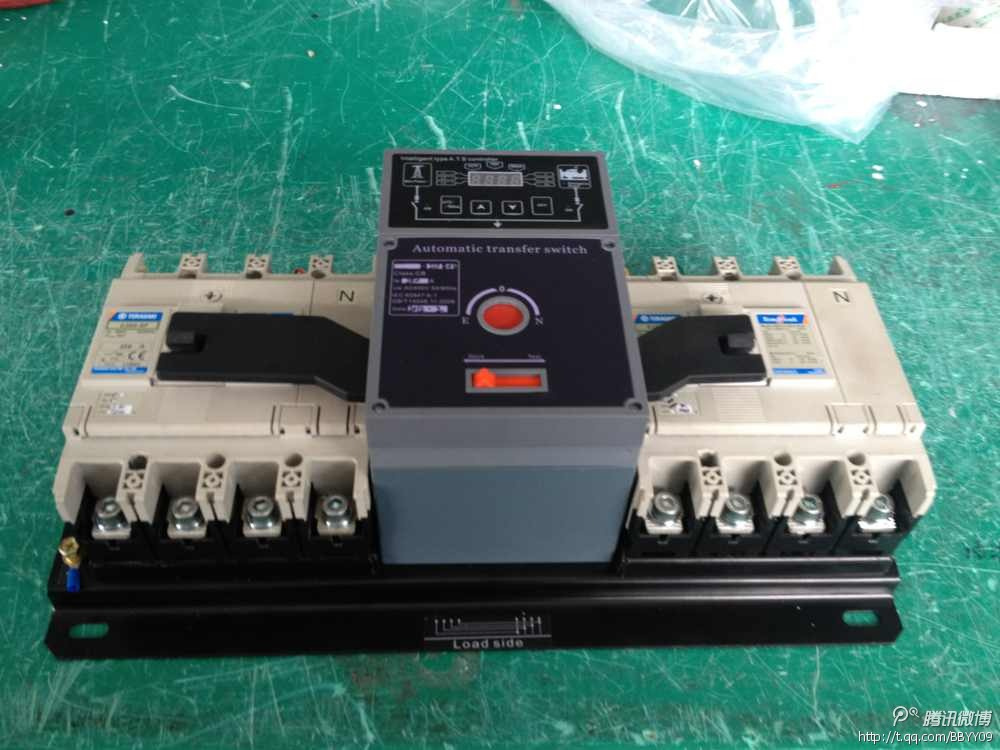

ATS2 Series Electric Automatic Transfer Switch

Prod Model:	ATS2-63,ATS2-100,ATS2-160,ATS2-225,ATS2-400,etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
: IEC60947-6-1:	50Hz, 400V (AC)
Operation:	Manual Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker
Arc-Extinguishing Medium:	Air
Function:	Circuit-Breaker Failure Protection
Approval:	CE
No. Of Pole:	3,4
Application:	MCCB
Output Type:	Multiple
Warranty:	1 Year
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	CSA
Output Power:	All Range
Power Supplying System:	Choose
Energy Transmission:	All Range

Product Description

ATS2 series automatic transfer switch (ATS) is suitable for the transfer between two Power sources, common source (power supply I) and standby power supply (power Supply II ), whose rated voltage is below 50Hz, 400V (AC) when one power supply Malfunctions to assure the safe, and stable power supply. The setting mainly used For hospital, shopping center, bank, and chemical industry, metallurgy, high building, Military facilities etc important situation where power breaking can't be allowed.
Standard: IEC60947-6-1, GB14048.11-2002, etc.

Model	MCCB Applied	No  of  pole  and  short circuit  breaking  capacity	Rated  current	L	M
ATS2-63	MGM1-63	3  Pole(L, M), 4  Pole	10, 16, 20, 25, 32, 40, 50, 63	25	50
ATS2-100	MGM1-100	3  Pole  (L, M, H), 4  Pole	10, 16, 20, 25, 32, 40, 50, 63, 80, 100	35	50
ATS2-160	MGM1-160	3  Pole  (L, M, H), 4  Pole	100, 125, 140.160	35	50
ATS2-225	MGM1-225	3  Pole  (L, M, H), 4  Pole	100, 125, 140, 160, 180, 200, 225	35	50
ATS2-400	MGM1-400	3  Pole  (L, M, H), 4  Pole	225, 250, 315, 350, 400	50	65
ATS2-630	MGM1-630	3  Pole  (L, M, H), 4  Pole	400, 500, 630	50	65
ATS2-800	MGM1-800	3  Pole  (L, M, H), 4  Pole	630, 700, 800	50	65
