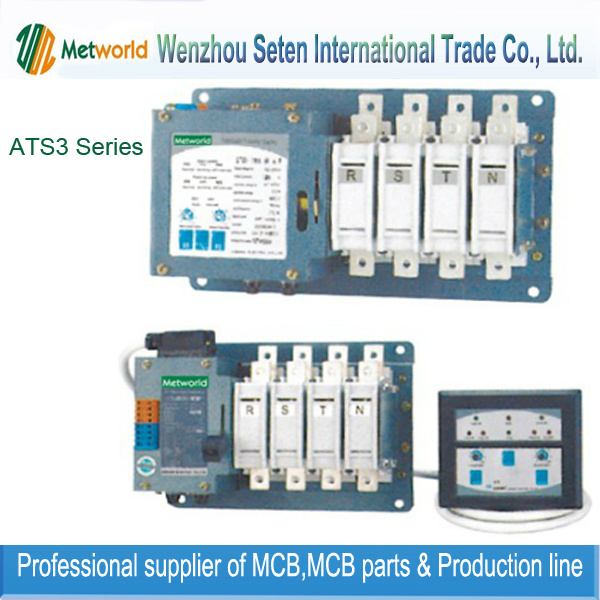

ATS3 Series Switchgear Automatic Transfer Switch

Prod Model:	ATS3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Current:	3.5
Rated Limit Short Circuit Current:	35
Operation Cycle(S/T):	15
Type:	Current Fuse
Breaking Capacity:	Low
Usaga:	High Voltage
Standard:	GB/T14048.6

Product Description

ATS3 series automatic transfer switch is applicable for distribution net work of AC50Hz,
Rated voltage of 400V, it has 3P and 4P.

ATS3 series automatic transfer switch is used in hospitals, hotels, market, post and
Communication, fire high building, industrial assembly line by widely.
Standard: GB/T14048.6.

Type		ATS3-125
		monolithic  type						split  type
Rated  current		16,   25,   32			40,   63, 125			16,   25,   32			40,   63, 125
Operating  current		3.5
Rated  limit  short circuit  current		35
Life  time	Mechanism	8000
	Eletric	3000
Pole		2P	3P	4P	2P	3P	4P	2P	3P	4P	2P	3P	4P
Weight		4.2	4.7	5.2	5	5.5	6.5	3.2	3.7	4.2	4	4.5	5.5
operation  cycle(s/t)		15



Type		ATS3-400
Rated  current(A)		160		200		250		315		400
Operating  current(A)		7
Rated  limit  short  circuit current(A)		35
Life  time	Mechamism	6000
	Electric	2000
Pole		3P	4P	3P	4P	3P	4P	3P	4P	3P	4P
Weight		16	18	17	19	18	20	18.5	20.5	19	21
Operation  cycle(s/t)		10
