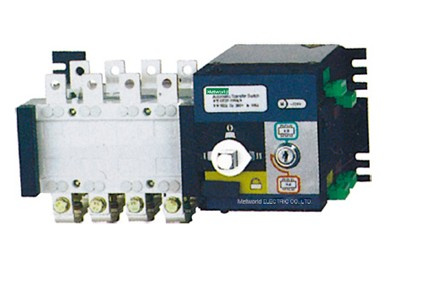

Ats4 Series Automatic Transfer Switch

Name: Ats4 Series Automatic Transfer Switch
Brand: all-electronics-online.com
SKU: 707362405
Availability: InStock
Rating: 5 (76 reviews)

Price:	US $ 1.1/Piece
Trade Terms:	FOB,CIF
Min Order:	240/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ats4 Series Automatic Transfer Switch
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Working Voltage:	AC 400V
According To Standard:	: IEC60947-6-1 GB14
Rated Working Voltage(Ue):	: AC400V
Rated Connecting Capacity (a RMS):	:10le
Rated Breaking Capacity (a RMS):	:8le
Promissory Heat Current(a):	32-3200
Rated Insulation Voltage:	750-1000V
The Strength Of Insulation Power:	3kv-5kv
Rated Impulsion Endurance Voltage:	8kv-12kv
Rated Short Time Endurance Current:	7kv-26kv
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Product Description

Main Technical Parameter
According to standard: IEC60947-6-1 GB14048.11
Rated working voltage(Ue): AC400V
Rated connecting capacity (A RMS): 10le
Rated breaking capacity (A RMS): 8le

Promissory heat current(A)		32	40	63	80	100	125	160	250	400	630	1000	1250	1600	2000		2500		3200
Rated insulation voltage		750V								1000V
The strength of insulation power		3KV								5KV
Rated impulsion endurance voltage		8KV								12KV
Rated working current(A)	AC-31	32	40	63	80	100	125	160	250	400	630	1000	1250	1600	2000	2500		3200
	AC-35	32	40	63	80	100	125	160	250	400	630	1000	1000	1600	2000	200		2500
	AC-33	32	40	63	80	100	125	160	250	400	630	800	800	1000	1250	1250		1600
Rated short time endurance current		7KV					9KV			13KV		26KV
Rated limited short circuit current		70KV								100KV		120KV
Operating torque(N. m)		12					19		26	39		50			80
Motor comsumpsion	Starting	300					235			355		440			600
	Normal	55					62			74		98			120
Transfer time(s)		0.45								0.6		1.2			1.5
Mechnical life (times)		10000								5500		4000			3000
Weight(Kg)	3poles	7.2					8		8.2	14	15	30	34	42	85	76		120
	4poles	7.5 8.5					8.5		9	16	17	36	40	49	95	98		135
