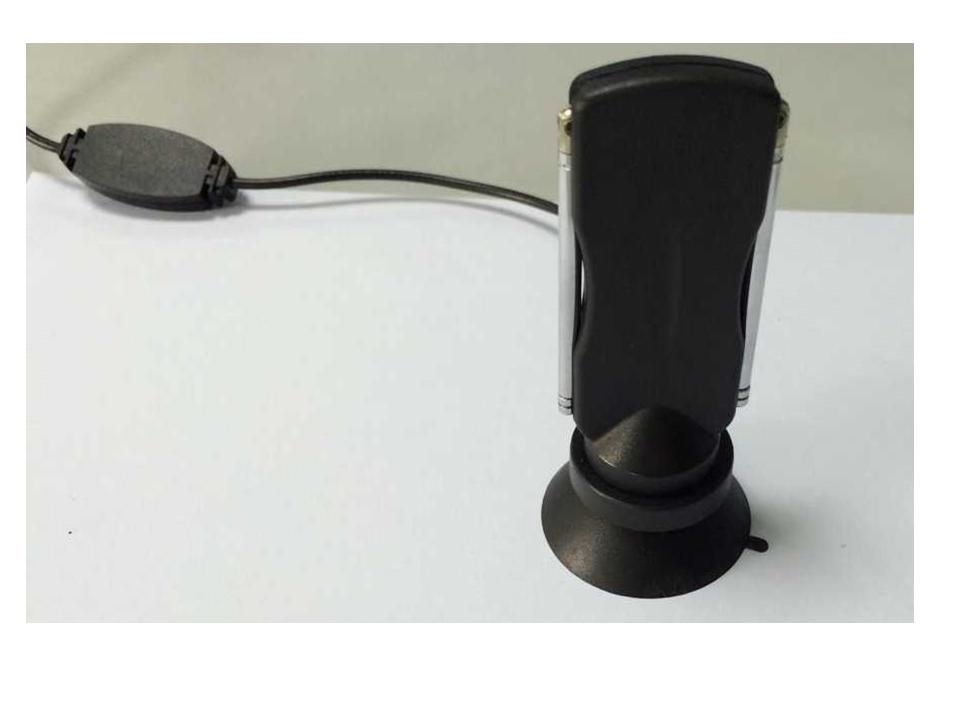

ATSC Digital Antenna for Indoor

Name: ATSC Digital Antenna for Indoor
Brand: all-electronics-online.com
SKU: 765414615
Availability: InStock
Rating: 4.7 (120 reviews)

Price:	US $ 2.35-2.60/Piece
Trade Terms:	FOB
Min Order:	3000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ATC-V008-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe
Acitve Antenna:	19dB
Mast Section:	Two
Function:	for HDTV
Usage:	TV Antenna
Directionality:	Omnidirectional Antenna
VSWR:	1.5~2
Usage Occasion:	Indoor TV Digital Antenna
Operating Wavelength:	174-230MHz ,470-860MHz
Material:	Cu Tube ,ABS757
Base Antenna:	Digital Antenna
Sturcture Form:	Rod Antenna
Dimensionality:	Indoor TV Antenna

Product Description

1.      Type:Active TV Antenna
2.      Model:ATC-V008B-1
3.      Material Spec., & Origin

Name	Finished	Material & Spec.,
Antenna Mast	White Cr	C2700T
Antenna base	Black	ABS757
Antenna Bottom base	Black	ABS757
Antenna Amplifier cover	Black	ABS757
Antenna Power pcb cover	Black	ABS757
Cable	Black	1.5C2V ,75 ohms
IEC Plug	Ni	C2700T
USB Plug	Ni	SPCC

4. Frequency: 40-870MHZ
5. Antenna Amplifier Gain :   19.50±2dB ,at 174MHz ,
                           19.10±2dB ,at 230MHz ,
                           17.30±2dB ,at 460MHz
                           15.80±2dB ,at 588MHz
                           12.50±2dB ,at 870MHz
6. V.S.W.R: 3:1
7.Antenna mast extension length   118.7±5.0mm ,shrink length :55.70±2mm
8.Base diameter:29.60mm with ferrites magnet
9.Cable length :4500mm
10. The basic parameters of the coaxial cable
1)At the state DC500V, insulation resistance measured between the core wire and shielded wire is more than 100 M ohms(only test cable )
2) Pull force from cable with plug is more than 50N
3)Coaxial cable type: 1.5C2V
4) Cable impedance : 75 ohms

Antenna Technology is a high-tech company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products; We always keep an eye on your demands and the developing trend of this industry, and have established a complete products system which is giving first to Car Antenna.

Provide the highest quality products and best service to create more value for customers. As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectations and needs, a large group of skilled technician work hard in order to increase the benefit for customers.

Product: Car AM/FM Antenna \GPS Antenna\GSM Antenna\TV Antenna\Shark fin Antenna\CB Antenna\T-DMB Antenna\DVB-T Antenna\Multi-Function Antenna\Antenna Cable and Accessories.

R&D: It has owned a R&D group of rich professional knowledge and practical experience, more designers have over 10 years R&D experience in SGM, Changan Suzuki, DongNan Mishubishi, Shanghai Automotive, VW, HaiMa Automotive, JMC, CHERY etc, They all have solid technical foundation and rich experience in production and guarantee the product quality, and the manager of company has operation skill in APQP, PPAP, DFMEA, PFMEA, CONTROL PLAN. And it has owned the design software for PRO/e, UG19.0, Catia V5r13, autocad 2006 and ADS2004, Protell99SE.

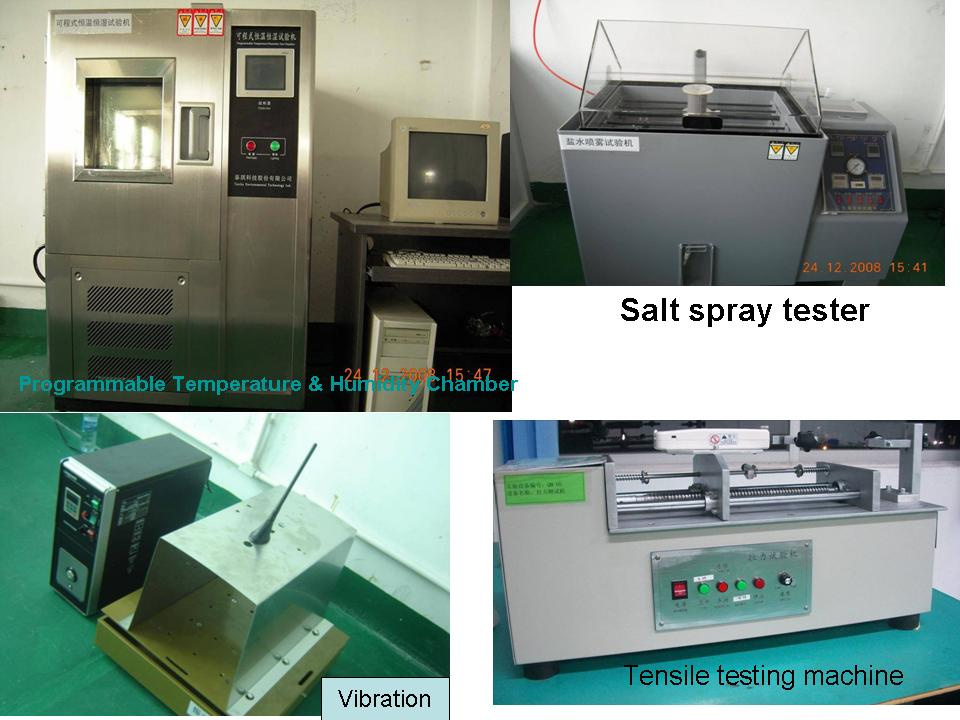

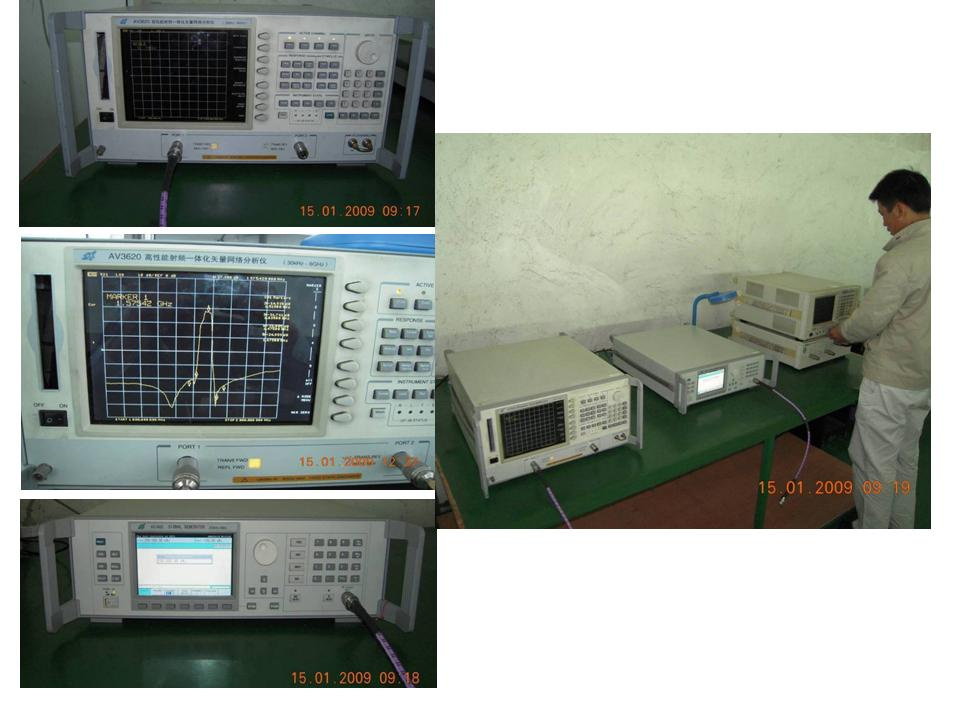

Our company owns advanced Network Analyzer, Signal Analyzer, Noise Figure Analyzer test equipments and 50 meters opened testing field. Environment Lab can process nature simulation testing of salt spray, aging, libration, pulling and High-low temperature.
