Audio Make Before Break Shorting 23 Position Selector Rotary Switch
| Price: |
US $ 3.5-12.3/Piece |
| Min Order: |
300/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
RS26 |
| Mechanical Life: |
50000 Cycles |
| Rotation Angle: |
15 |
| No.of Poles: |
1 |
| No.of Switch Position: |
24 |
| Max. Voltage: |
250VDC |
| Max. Current: |
0.5A |
| Svhc: |
No Svhc |
| Shaft: |
Flowers Shaft ,D Shaft,Round Shaft |
| Function: |
Mbb or Bbm |
| Rotary Number: |
Single Button |
| Usage: |
Digital Products |
| Standard: |
Standard |
| Structure: |
Self-Reset |
| Operation: |
Knob |
| Certification: |
RoHS |
| Condition: |
New |
Product Description
We specialized manufacturing variety of rotary switch.
If you need order more the rotary switch,Pls contact us!tks!our product have variety of functions.

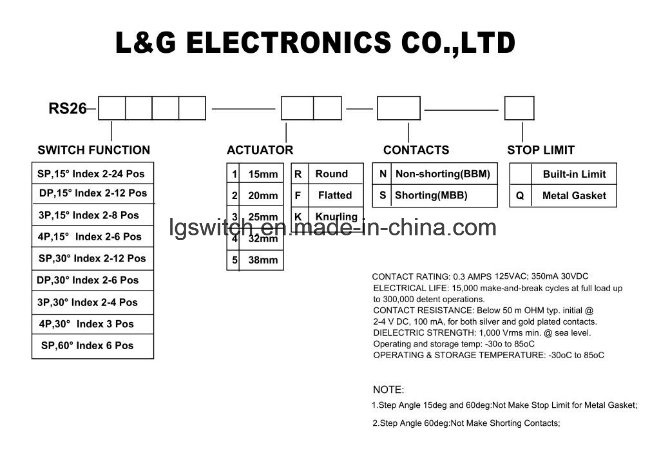

For example:SP12T,SP15T,SP16T,SP24T,DP6T,DP8T,DP12T,3P8T,4P3T,2P9T,4P6T.... etc variety of Angle rotary switch.

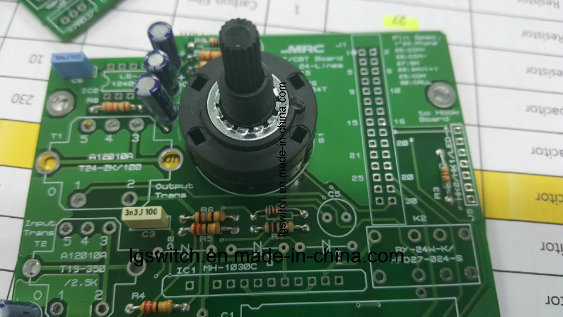

1-POLE / 24 POSITION, By spacer clips can be selected in the 24 POSITION,GET EXACTLY AS PICTURE SHOW
Position this switch can be adjusted, you can set most needed Position (picture just for show, does not mean you actually buy Position items)
Usage:
1.Remove the screw and washer, you can see the band switch labeled Position numbers next to the square hole
2.gaskets, you can see there is a raised portion
3.would be raised on the part of the gasket into the square hole you need the number next to the Position and tighten the screws.

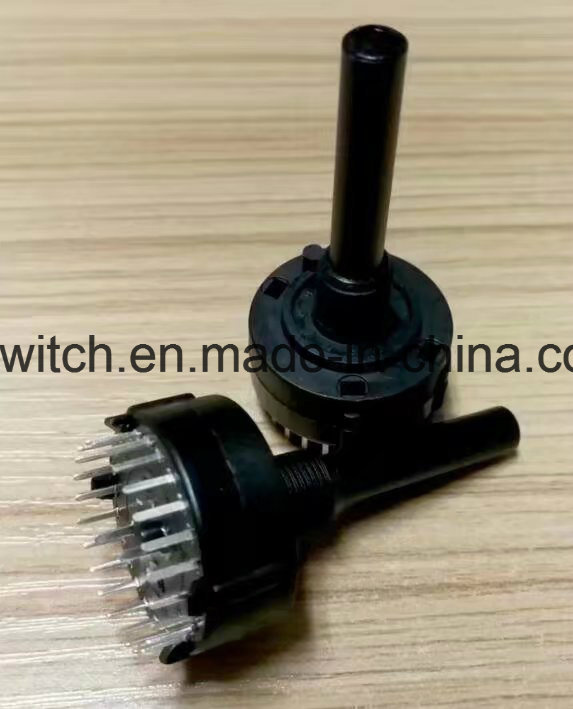

Product Name: Rotary Switch
Model No. : SR26-1-24-20K
Type : 1 Pole 24 Positions
Rated Power:300mA, 125V AC.350mA, 30V DC
Max. Operating Voltage : 250V AC/DC
Max. Operating Current : 5A, non-switching
Durability :>=10000 times
Withstand Voltage:1500V Max
Insulation Resistance:100MΩ min.
Temperature Range: -30°C-85°C

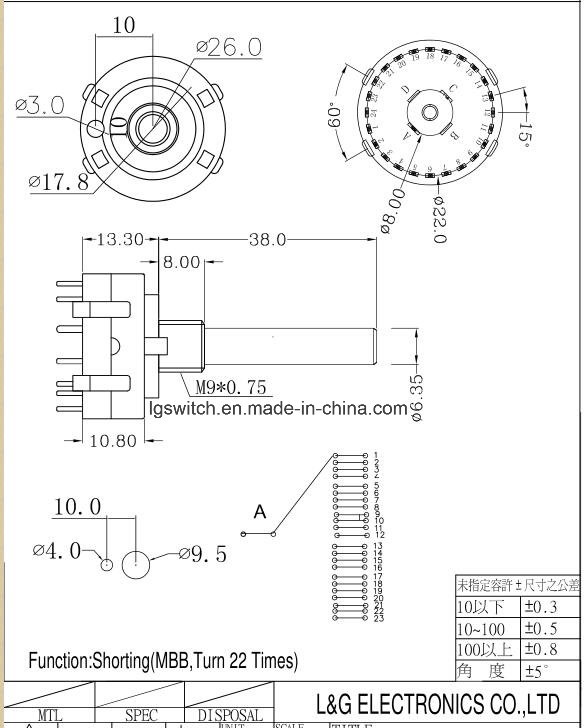

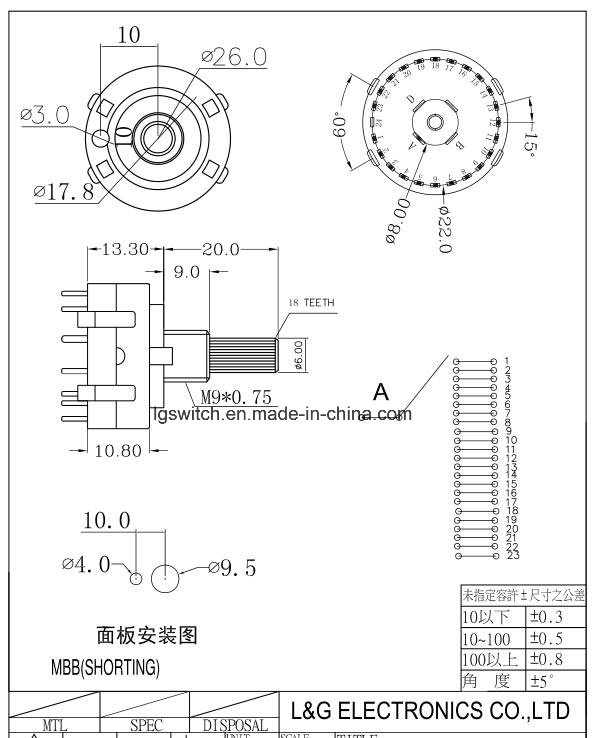

Shaft Size: 6 x 11mm / 0.236" x 0.43"(Diameter*L)
Sample:
1. Free charge sample: Could provide(less than 10 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 50~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
|
Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.
Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.
The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.
After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.
" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
