Zhejiang Huaxi Electronics Co., Ltd. >> Australia Surface Socket Outlet with 10 AMP 250 Volt

Australia Surface Socket Outlet with 10 AMP 250 Volt

Australia Surface Socket Outlet with 10 AMP 250 Volt
Price: US $ 0.71-0.82/Piece
Min Order: 1000/Piece
Pay Type: T/T,Western Union
Prod Model: 413QC
Hole-Digit: 3 Digits
Installation: Table
IP Rating: IP65
Color: White
Certification: ISO: 9001
Customized: Customized
Condition: New
Housing Material: Plastic

Product Description

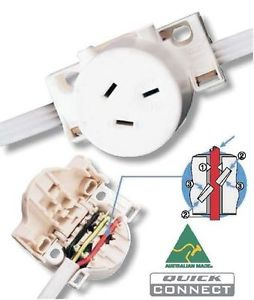

Quick Connect Surface Socket
Model No.: 413QC
1) Rating:10A 250VAC.
2) Conductor:1.0mm² to 2.5mm² solid/stranded to AS/NZS5000.                          :                 1.0mm² 2.5 mm² /AS/NZS5000
3) Mounting: 50mm mounting centres to suit 413NPQC naillates or direct fixing.Clamping of insulation and sheathing fulfils the requirement of AS/NZS 3000.2000.
50mm, 413NPQC. AS/NZS 3000.2000.
Installation Instructions :
1) Remove outer sheathing ONLY to required length of 46mm (mid connection) using stripping template on lid. For end connection remove approximately 70mm,46mm,70mm.
2)  Lay cable into terminal paths. Ensure correct polarity by following colour coding. When connecting at cable end, place tails into individual cavities.
3)  Close lid and squeeze with pliers until both clips latch.
4)  To reopen insert screwdriver and twist to release clips on both ends.

Zhejiang Huaxi Electronics Co., Ltd is located at the foot of national key place of interest Yandang Mountain and abuts on "China Electric Capital"Liushi, Wenzhou. It was founded in 1997 with a floor area of 4, 003 sq. M, and building area of 5, 600 sq. M. At present, it owns more than 100 staff including 16 engineers.

The Company mainly produces(WENHAN, HX brand) kinds of temperature controller, overheat temperature protectors, temperature displays and gas temperature control valves, which are wideyl applied in electric water heater, electric oven, washing machine, plastic machinery, west cabinet equipment, fuel gas oven, gas air-condition, Turkey cooker, boiler pump, central air-condition heating, ventilation system and such support control products.

The companys is development, production of metallized film capacitors. It is equipped with advanced production equipment and detection instruments. The products are of stable and reliable quality and widely used in fields such as communication, household appliances, power supply, green lighting, commputer, industrial control, electric tool, auto-eletctonics, etc.

Since the foundation of the company, we have always insisted on the principle of paying equal attention to talents and products; Absorbing experienced engineers and professional managing personnel. Basing on strict management, high techonlogy, advanced mechanical facilities, perfect test technique, it can provide the user whit high quality products and good fater-sales service. The main products have been certified to CSA, VED, CQC and CE. The quality control system has been wholly carried out in conformity with ISO. The products mand by our company are used with those of famous domestic manufacturers. The company has become the cooperation partner of foreign famous brand OEM. The products are well sold all over China and also exported abroad, selling well around China and exported oversas.
