Auto Blower /Inverter Braking Resistor

Name: Auto Blower /Inverter Braking Resistor
Brand: all-electronics-online.com
SKU: 696341125
Availability: InStock
Rating: 4.9 (142 reviews)

Price:	US $ 0.1-50/Piece
Trade Terms:	FOB,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RX26
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Other Certification:	RoHS
Product:	Auto Blower /Inverter Braking Resistor
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Throught Hole
Type:	Humidity Sensitive Resistor
Brand:	Liwang

Product Description

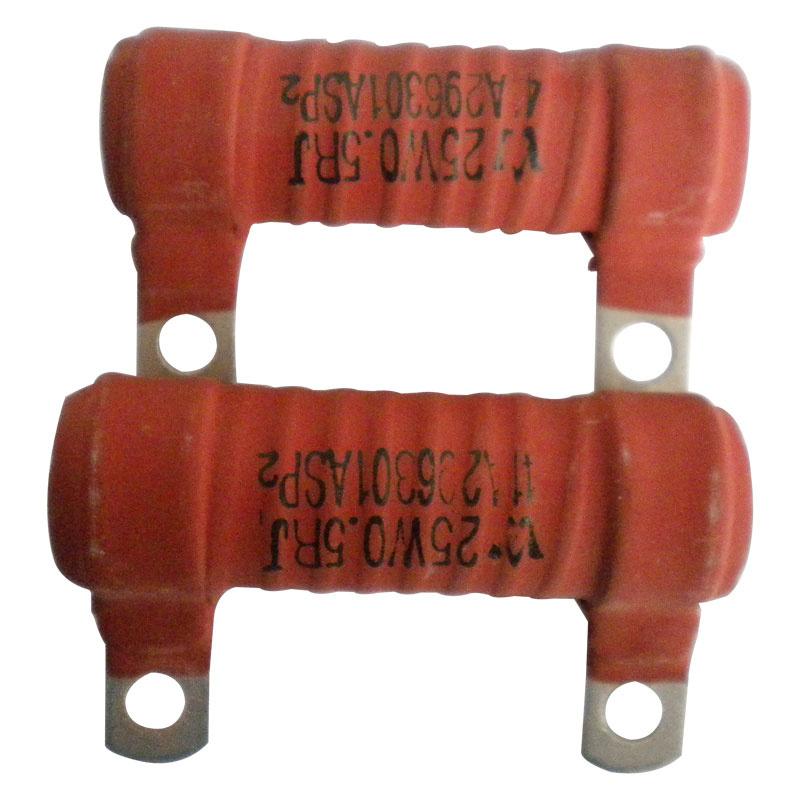

Auto Blower /Inverter Braking Resistor
1. Resistance range: 0.1-12K;
2, Rated power: 30W-1000W;
3, RoHS certification
High Power Wirewound Resistor
1. Professional resistor manufacturer.
2. Good overload resistor.
3. RoHS & ISO9001&ISO14000
4. OEM.

Type	Rated Power(W)	Resistance range(Ω)	Dimensions(mm)
Type	Rated Power(W)	Resistance range(Ω)	L	D	h	b	d	d1	t
RX26-30	30	0.1-1k	80±1.5	17±2	36±2.5	35±0.8	8±0.5	2	5.4
RX26-80	80	0.1-1.5k	91±2.4	29±3	46±3	4.5±1	20±1.1	2.5	8
RX26-100	100	0.5-2k	140±3.2	29±3	46±3	4.5±1	20±1.1	2.5	8
RX26-120	120	0.5-2.2k	160±3.5	29±3	46±3	4.5±1	20±1.1	2.5	8
RX26-150	150	0.5-4.3k	195±3.5	29±3	46±3	4.5±1	18±1.1	2.5	8
RX26-200	200	1-4.7k	215±6	29±3	46±3	4.5±1	18±1.1	2.5	8
RX26-250	250	1-5.1k	303±6	29±3	46±3	4.5±1	18±1.1	2.5	8
RX26-300	300	1.5-6.3k	254±6	45±4	63±4	6±1	24±1.2	4.5	8
RX26-400	400	1.5-6.8k	330±6	45±4	63±4	6±1	24±1.2	4.5	8
RX26-500	500	1.5-8.2k	303±6	55±4	73±4	6±1	35±3	4.5	10
RX26-600	600	1.5-9k	300±6	60±4	73±4	6±1	35±3	4.5	10
RX26-750	750	2-10k	390±6	60±4	73±4	7±1	35±3	4.5	12
RX26-1000	1000	5-12k	500±6	70±4	80±4	7±1	40±5	5	12

Item	Tested	Requirements
Resistance series tolerance		E24 ± 5%± 10%
Solder ability	265± 5%, 2S+0.5S 1.5~2mm	R≤ ± (1%R+0.05Ω ) > 95% Covered with new solder by 95% at least No damage
Terminal strength	10N 30± 1.5s	R≤ ± (1%R+0.05Ω ) No damage
Short time overload	10xRated power 5s	R≤ ± (1%R+0.05Ω )
Resistance soldering heat	350± 10 3~3.5mm	R≤ ± (1%R+0.05Ω ) No damage
Vibration	10~500Hz, 0.75mm, or 98m/s 2	R≤ ± (1%R+0.05Ω ) No damage
Load life	1.5h on 0.5h off 1000h	R≤ ± (5%R+0.1Ω )
Moisture Resistance	40RH 90~95% 96h	R≤ ± (5%R+0.1Ω )

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
