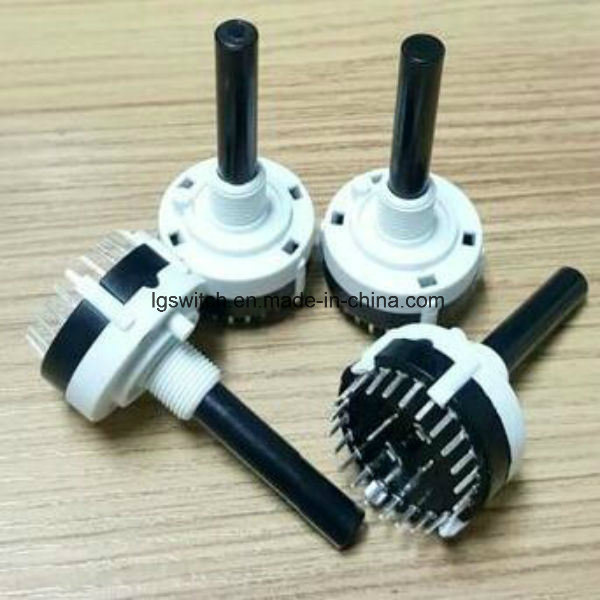

Auto Changeover Lgswitch Sp24t/Dp12t 1-4 Pole 24 Position Dimmer Micro Selector Rotary Switch
| Price: |
US $ 0.2-0.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
RS26 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mechanical Life: |
50000 Cycles |
| Rotation Angle: |
15 |
| No.of Poles: |
1 |
| No.of Switch Position: |
24 |
| Max. Voltage: |
250VDC |
| Max. Current: |
0.5A |
| Svhc: |
No Svhc |
| Shaft: |
Flowers Shaft ,D Shaft,Round Shaft |
| Function: |
Mbb or Bbm |
| Rotary Number: |
Single Button |
| Usage: |
Digital Products |
| Standard: |
Standard |
| Structure: |
Self-Reset |
| Operation: |
Knob |
| Certification: |
RoHS |
| Condition: |
New |
Product Description
We specialized manufacturing variety of rotary switch.
If you need order more the rotary switch,Pls contact us!tks!our product have variety of functions.
For example:SP12T,SP15T,SP16T,SP24T,DP6T,DP8T,DP12T,3P8T,4P3T,2P9T,4P6T.... etc variety of Angle rotary switch.
1-POLE / 24 POSITION, By spacer clips can be selected in the 24 POSITION,GET EXACTLY AS PICTURE SHOW
Position this switch can be adjusted, you can set most needed Position (picture just for show, does not mean you actually buy Position items)
Usage:
1.Remove the screw and washer, you can see the band switch labeled Position numbers next to the square hole
2.gaskets, you can see there is a raised portion
3.would be raised on the part of the gasket into the square hole you need the number next to the Position and tighten the screws.
Product Name: Rotary Switch
Model No. : SR26-1-24-20K
Type : 1 Pole 24 Positions
Rated Power:300mA, 125V AC.350mA, 30V DC
Max. Operating Voltage : 250V AC/DC
Max. Operating Current : 5A, non-switching
Durability :>=10000 times
Withstand Voltage:1500V Max
Insulation Resistance:100MΩ min.
Temperature Range: -30°C-85°C
Shaft Size: 6 x 11mm / 0.236" x 0.43"(Diameter*L)
Sample:
1. Free charge sample: Could provide(less than 10 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 50~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
| Guanjun (L&G) Electronics specialize in this field more than 20 years,with good quality and pretty competitive price |
| . Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs |
| . Original manufacturer with direct factory price, Competitive & Fashionable |
| . High management Standard for quality control |
| . Small order acceptable: 500pcs are welcome |
| . Safe payment terms: T/T, Western Union, are available |
| . Prompt Delivery & Lowest shipping cost : We can ship out within 30 days for general order |
| . OEM available, Customers' designs are warmly welcome |
1.Once we get your inquire for our switches, we will reply you within 30 min
2.Checking the drawing and all details of our switches with you, if you think it is ok, then we need your signature on our drawing for final confirmation.
3.Quotation will be sent to you accordingly.
4.After getting your signed quotation, samples will be sent to you immediately.
5.If our switches passed your testing, you may release to us.
6.Receiving your official order, we will let you know our shipping date soon.
7.Paying 50% for us, we will start to proceed your order to keep the goods finished on-time.
8.Balance 50% payment before shipment.
9.Getting all payment from you, goods will be shipped to you per your requested shipping way
Samples & Packaging & Shipping:
1)Samples:
A.Free for you, Quantity less than 6 pcs, freight collected.
B.Lead time for samples: 3~7 days for preparing samples.
2) Shipping
A.Couriers:Fedex, DHL, UPS, TNT
B.Other: Air or by Sea
As we have a long time cooperation with Courier agent, we can get a priority price for you. We can quote you the transportation charges at first for your comparasion.
FAQ
Q1--What is your MOQ?
In general ,our MOQ is 500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 1~10 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, CQC, Nemko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.
Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.
Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.
The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.
After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.
" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
