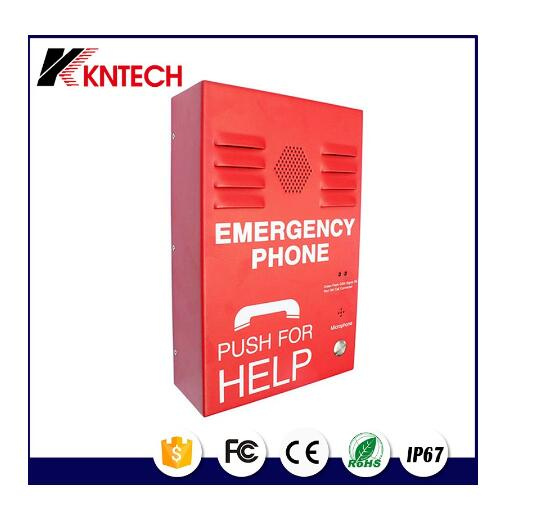

Auto Dail Emergency Intercom Vandal Resistant Weatherproof Help Point Telephone

Prod Model:	KNZD-38
Brand:	Koon
Material:	Stainless Steel
Loudspeaker:	Yes
Handset Free:	Yes
Tamper-Resistant:	Yes
Power:	Poe/DC/AC
Product Name:	Auto Dail Emergency Intercom Telephone
Network Interface:	2g or 3G GSM
Time Out:	Selectable 0-20 Minutes
Built-in Battery Standby:	21days
Support Network:	GSM
Information Content:	Voice
Certification:	RoHS
Condition:	New
Type:	IP Door Phone

Product Description

Analogue/ IP SIP POE/ GSM Telephone phone KNZD-38 Help point telephone:

Main features:
1. Analogue/ IP SIP POE/ GSM Telephone
2. Metal body stainless steel 304 or 316 or CRS Cold-Roll Steel.
3. Identifying the push button can be customized in English or other language.
4. The phone affixed to the mount using 4 stainless steel tamper proof screws.
5. Push to talk, One button with memory for speed-dial call. Easy programmable.
(we can also make the keypad built-in phone case for hidden).
6. LED indicators for incoming call optional
7. Wearable, waterproof, moisture proof, Vandal resistant and tamper-resistant hardware
8. Lightening protection to ITU-T K.21
9. Automatically release the line when the other far end hang up first.
10. Selectable 7 minute time out
11. Patch cable is industry standard CAT 3 telephone cable patch cable equipped with RJ11 connector.
12. Dry contact ready if customer need this for CCTV optional
13. Self healthy checking and trouble reporting automatically
14. Auto answer and auto stop
15. Induction loop ready for optional need 12V AC feeding.


Main technical indexes:
1. Network Interface: 2G or 3G, GSM Frequency :850/900/1800/1900MHZ
2. Ringing: Through internal Speaker/ringer
3. Power Supply: Re-chargeable Battery powered: 9V/14Ah,  Solar back-up: 12V/30W
                 AC ADAPTOR: Input: 240V/110V   output:  9V/14Ah
4. Time out: selectable 0-20 minutes
5. Temperature: -20ºC~ +60ºCemp
6. Relative Humidity: up to 90%
7. Built-in battery Standby: 21days
8. Built-in battery talking time: 21 hours

Applications:
As Public telephone for indoor or outdoor, elevator phone, Taxi or bus stands or station, Highway call box. Railway, metro, ATM machines side, Tunnel, Port, Dock, Mines, Generation facilities….
A good ideal telephone for use in wet or corrosive atmospheres

Emergency intercom system phone KNZD-38:

Voltage:		Applicable for various types of SPC exchange and dispatching exchange system with feeding voltage of 33-60V.
Ambient temperature:		-30 ~ +60 degreeRelative humidity: 10%~95%Atmospheric pressure: 86~106Kpa Circumstance noise: less than 60dB(A)
Relative humidity:		10%~95% Atmospheric pressure: 86~106Kpa
Sound level of ringing:		over 70dB(A).
Standard frequency:		low frequency group: 697. 770. 852. 941Hz,high frequency group: 1209, 1336, 1477Hz, frequency deviation: -1.5%~+1.5%
Call transmission index		(5KM)SLR<12, RLR<-1, STMR>10, output impedance is 600 Ohm.
Super strong function is available for dialing 12 groups of numbers stored in the memory (maximum length of each number is16 digits)

Why choose us
HongKong Koon Technology Ltd is the most professional manufacturer in Asia, The exclusive supplier for all Metro project in China.
We are the leading professional manufacture of most complete production line of IP66/IP67 emergency telephone, SOS phone, Weatherproof telephone, elevator telephone, tunnel trackside telephone, highway emergency phone.They are IP or PSTN/analogue telephone and wireless GSM 2G 3G. phone line powered, solar powered, or AC powered.
More than 100 models, different colors, different type of mounting, CE, FCC, IP66, ITU-T, ISO9001, EN50121 approvaled. ATEX DNV certificate under process.
Emergency telephone application:
indoor: Airprot, transtation, bank,koisk, elevator, university, hotel, hospital, plant, oil and gas.
outdoor: tunnel, highway, marine, outdoor station, construction, bridge, steel, mine, army, scenic region,
Successful project in recent:HK MTRC contract XRL851, LRT Project in Malaysia, Bangalore Metro, HONGKONG KAIDA tunnel,HK MTR,Italian Metro,BKK Red Line Thaliand,
IKITELLI metro project, Mumbai metro in Indea, NSR project in Saudi,BHP Billiton australia, CSN Brazil, Chalco China, story bridge Austrialia,HSBC bank, China bank, ICBC, HK airport, Frankfurt France, BeiJin airport, Beijin University, HK university, etc.
About Emergency Telephone Koontech KNSP-01Waterproof telephone IP67 Intercom System market:
Our Emergency telephone waterproof telephone intercom system are widely accepted in countries in North America such as USA, Canada, in European countries such as UK, Germany, France, Netherlands, Greece, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain etc. and Russia.
