Auto-Feeding Leather Fabric Textile CO2 Laser Cutting Machine

Name: Auto-Feeding Leather Fabric Textile CO2 Laser Cutting Machine
Brand: all-electronics-online.com
SKU: 717061802
Availability: InStock
Rating: 4.9 (46 reviews)

Price:	US $ 5300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DW1610
Name:	Auto Feeding Laser Cutting Machine
Certification:	Ce, ISO, FDA
Laser Power:	80W, 100W, 150W, 260W
Cutting Thickness:	0-35mm
Cutting Area:	16001000mm/14001000mm or Customized
Resetting Positioning Accuracy:	0.01mm
Motor:	Servo or Stepper as Your Option
Resolution Ratio:	< 0.01mm
Optional Parts:	up-Down Worktable, Red Light
Machine Warranty:	2 Years

Product Description

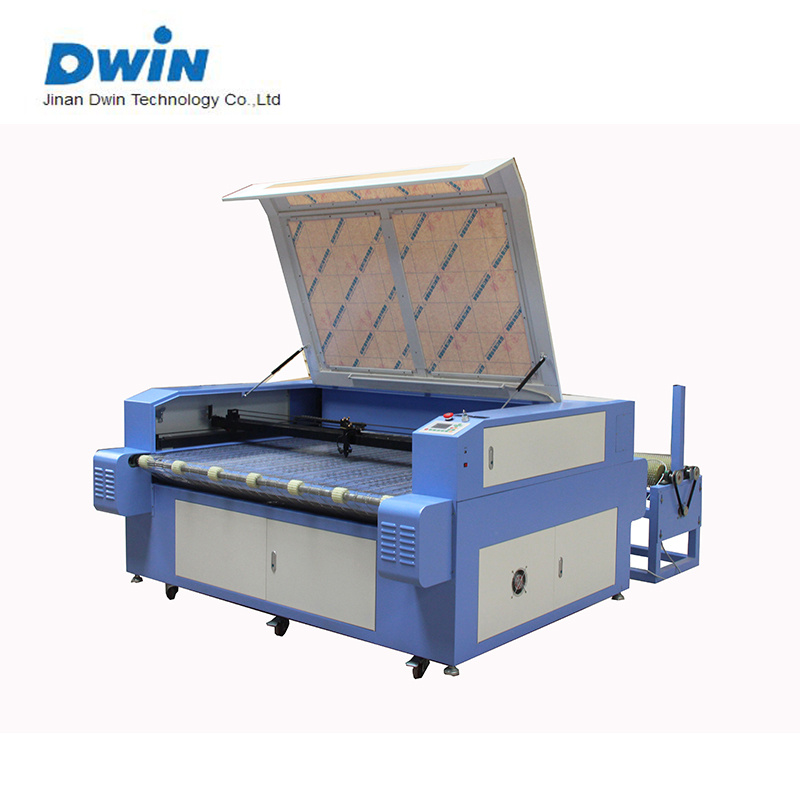

Auto Feeding Leather Fabric Textile Co2 Laser Cutting Machine

Laser cutting machine introduction
This kind of auto-feeding laser cutting machine is designed for cutting fabric, leather,cloth,paper,garment and other soft materials in rolls, which largely enhances the working efficiency and saves time.

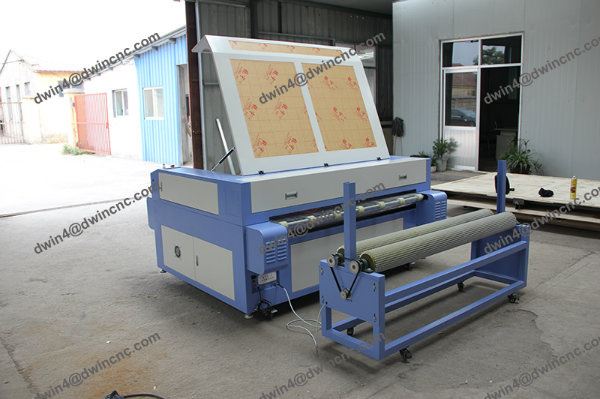

This auto feeding laser cutting machine can be equipped with one, two or four cutting heads and auto feeding system, two or four cutting heads working at the same time. The feeding system can load materials by itself which can save the labor force and cut the cost.

This machine is especially suitable for the mass processing of textile and garment. The machine can cut any curve fast and consecutively. DSP control system makes users can complete the mass production without the connection to the computer.

Machine Parameter

No.	Description	Machine parameter
1.	Machine model	DW-L1610A
2.	Laser medium	Co2 gas
3.	Working area	1600*1000mm
4.	Working table	B type mesh belt
5.	Laser power	80W/100W/130W(optional)
6.	Power Supply	220V/50Hz/60Hz
7.	Min line width	≤0.15mm
8.	Positon accuracy	±0.05mm
9.	Repetition accuracy	0.02mm
10.	Cutting speed	700mm/s
11.	Guide rail	Hiwin from Taiwan
12.	Transmission method	Belt Transmisson
13.	Drive system	Leadshine driving system and stepper motor
14.	Cooling system	Water-cooling
15.	Control system	DSP
16.	Control software	Coreldraw, Photoshop, AutoCAD, etc
17.	Graphic format support	PLT, DXF, BMP, JPG ,AI ,ect
18.	Working environment	0-45ºC
19.	Operating Humidity	5-95%
20.	Machine warranty	2 years

Applicable materials
Genuine leather, artificial leather, soft leather, decorative leather, packaging leather.Etc all kinds of leather, leather materials, pure cotton, real silk, all kinds of chemical fiber, cowboy, and so on.All kinds of textile materials or non woven material.
Typical case:Clothing.Footwear, toy, luggage, wild camp, car seat cut, such as the car chair affixed cloth embroidery, special shaped trademarks, airbags, such as laser cutting, garment leather carve patterns or designs woodwork hollow cut.
