| Prod Model: |
23A |
| Color: |
Gold |
| Weight: |
7.1g |
| Nominal Capacity: |
56mAh |
| Working Temperature: |
-20ºC to 60ºC |
| Storage Temperature: |
10ºC to 25ºC |
| Test Passed: |
Pony, SGS, TUV |
| Validity: |
5 Years |
| Jacket: |
Foil\Iron\PVC |
| Cross Reference: |
L1028\A23\Mn21\Lr23A |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
RoHS |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Voltage: |
12V |
| Material: |
Metal |
| Battery Type: |
Button Battery |
Product Description

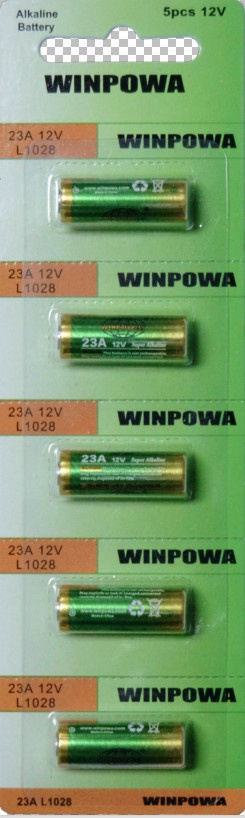

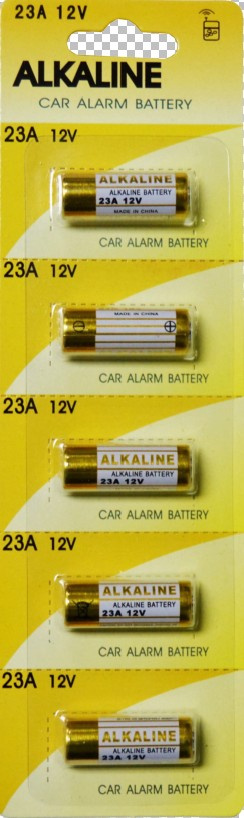

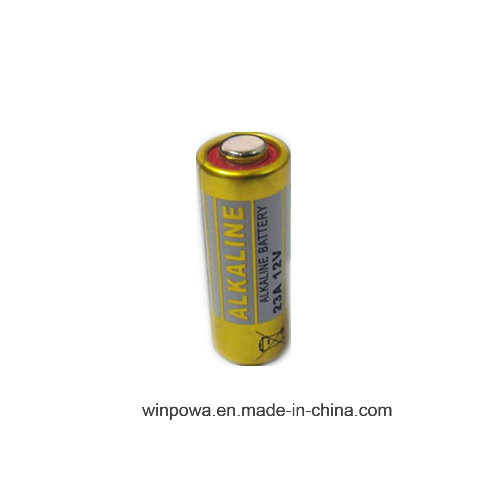

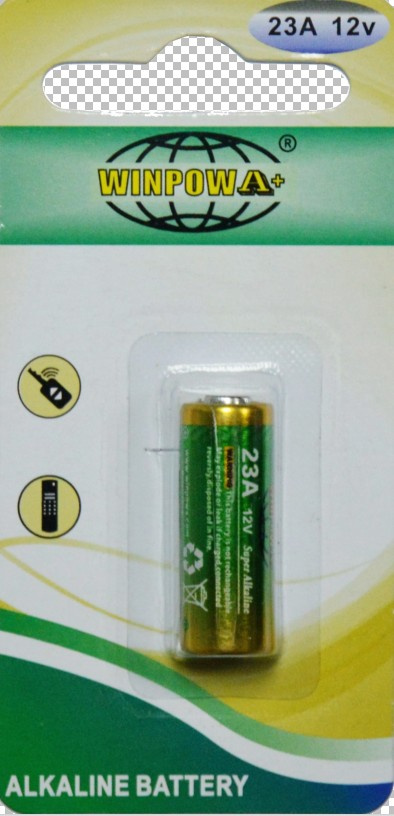

auto gate motor remote control 23A batteryProduct overview
Type : Alkaline High Voltage Battery
Chemical System : Zinc/Manganese Dioxide
Nominal Voltage : 12.3V
Nominal Dimension : Φ10.3×28.5 mm
Terminal : Nickel plated flat contacts-protruded red (+); recessed black (-)
Internal connection : Pressure
Average Weight : 7.68g
Shelf Life : 5 years
Current Drain : Under 5mA pulse, 0.5mAcontinuous
Close circuit Voltage : 6.5V(min)(load resistor 100Ω at 20ºC For 0.3 seconds)
Nominal Capacity : 56mAh(at 20KΩ load, to 6V at 20ºC)
Average Service Life : 100hrs (at 20KΩ load, to 6V at 20ºC)
| | Discharge Condition | Average Minimum Discharge Time |
| | Discharge
Load | Daily
Discharge time | End Point
Voltage(V) | New battery | After 12mth.at
room temp. |
| Standard | 20kΩ | 24h | 6.0 | 110h | 104h |
| Reference | 1KΩ | 24h | 6.0 | 210min. | 168min. |
| Reference | 1KΩ | 1S/4S,24h | 6.0 | 20000times | 19000times |
Typical discharge time:
Quality control:
We takes 50pcs button cell from every batch, and put them into the high temperature chamber, turn the temperature to 57ºC, humidity to 95%, hold on 18h/d and duration few days (in this case, cells like have been storaged in normal temperature for 2 years), then draw them out and use Phenolphthalein test paper to touch cells' body, to view if have leakage and rusty happen.
We will juage the batch whether good enough to offer to customers by this test.
Application:
FAQ:
Q:Can you help us for freight?
A:Yes,we also have trustable forwarders for you option, if you need.
Q:Can we have our own packaging design?
A:Of cause, customized packaging is available, but it has MOQ required.
Q:How long is your warranty?
A:We offer 1 years warranty after order delivery.
Company info:

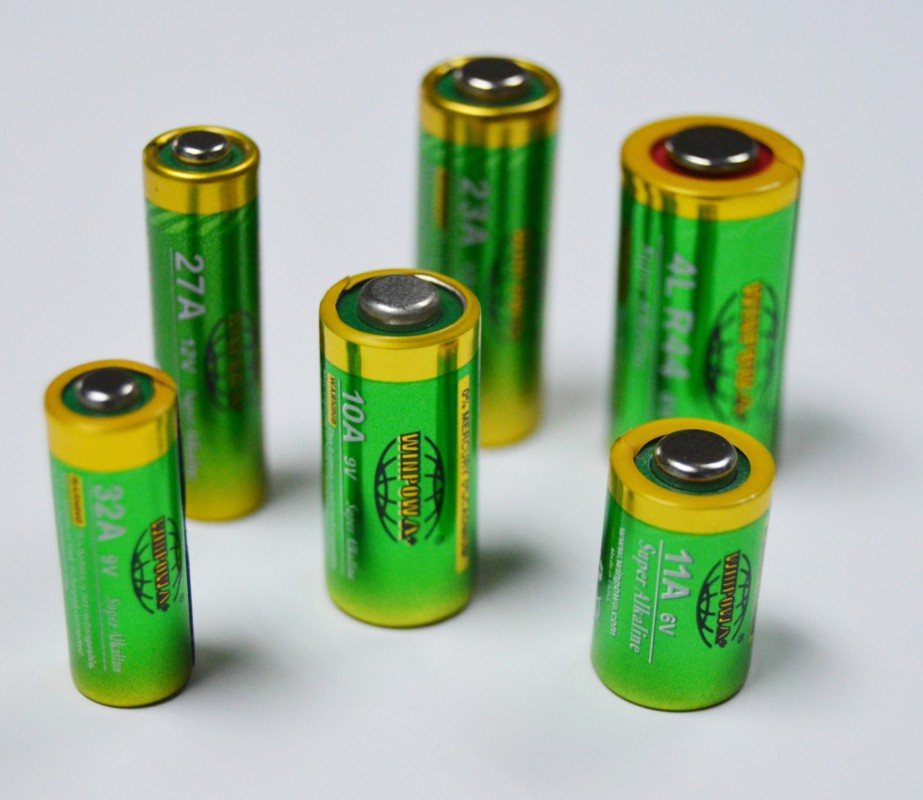

Huizhou Winpow Electronic Co.,Ltd is the professional R & D and production of battery enterprises,. Products covered
