| Prod Model: |
GT08-EZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
+6.0 ~+45VDC/2.0A |
| Antenna: |
Internal GPS and GSM |
| GSM Frequency: |
850/900/1800/1900/2100 MHz |
| Backup Battery: |
Rechargeable 3.7V 500mAh Li-ion Battery |
| GPS Chipset: |
U-Blox7 Chipset |
| GPS Receiving Channel: |
56 Channels |
| Multilanguage: |
Chinese, Arabic, Portuguese, Spainish |
| Positioning Mode: |
Auto 2D/3D |
| Signal Transmission: |
Wireless Alarm |
| Working Principle: |
Electromagnetic |
| Use: |
Automotive |
| Port Number: |
Multichannel |
| Screen Size: |
Vehicle GPS Tracker |
| Type: |
Vehicle GPS Tracker |
| Operating Principle: |
Vehicle GPS Tracker |
| Carrier Frequency: |
850/900/1800/1900/2100MHz |
| Model: |
Vehicle GPS Tracker |
| Brand: |
Vehicle GPS Tracker |
| Chip: |
U-Blox7 Chipset |
| Certification: |
Ce, FCC |
Product Description

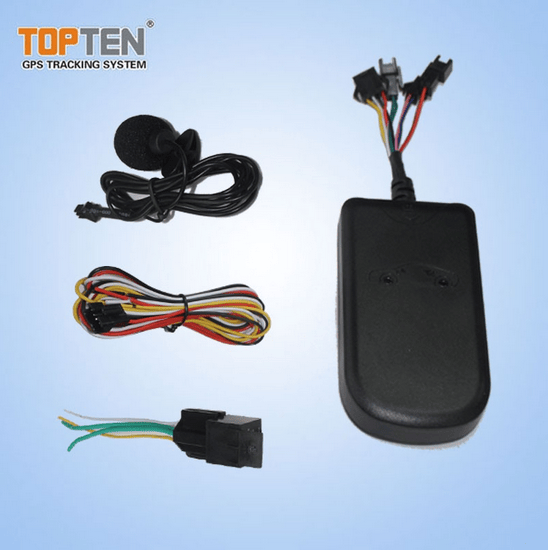

Auto GPS Tracker With Online Trace Mobile APP GT08GPS Car Alarm
Applications:
Car rental solution
Taxi management solution
Vehicle tracking solution
Employee commuting solution
Police and public safety solution

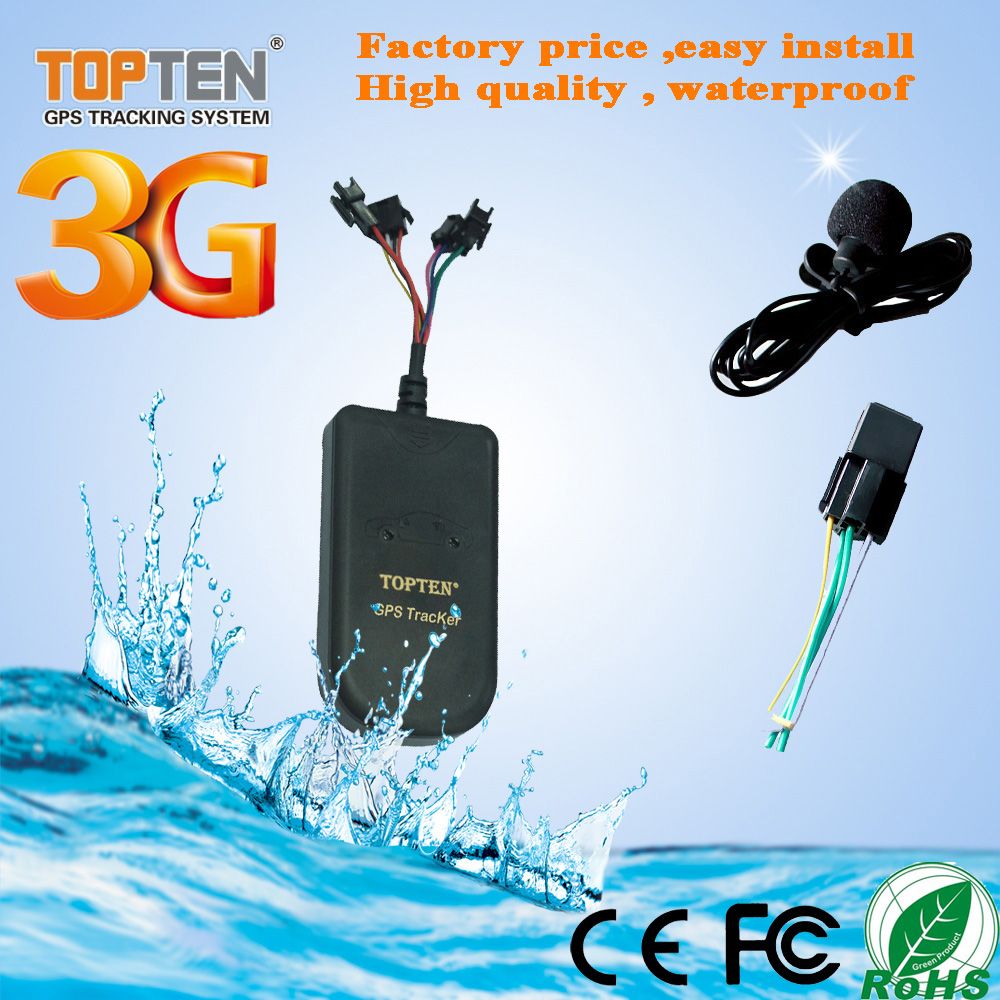

GT08 3G GPS Vehicle tracker is the most advanced & cost-effective solution for vehicle security, real-time tracking & fleet management.
It has the following unique functions:
Support 2.4G RFID function or regular Mifare1 IC card reading;
Support wireless immobilizer;
Fuel leaking alarm, speed limiter & fatigue driving alarm;
It is integration with GPS tracker +Car alarm with keyless tag(optional);
It is not only a tracker, but also a car alarm systems To be a tracker ( track by mobile sms and online gprs )

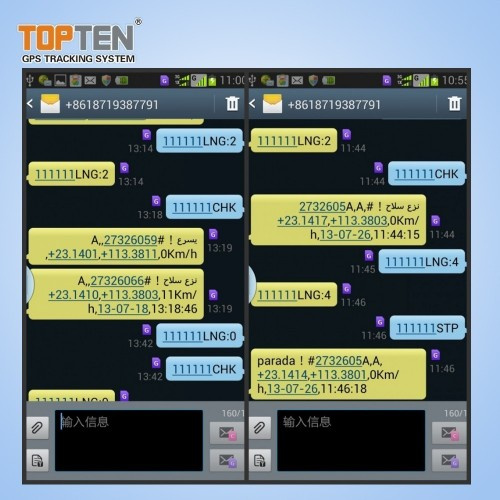

1) 111111CHK-----get latitude and longitude, input https://maps.google.com/ to get real address
2) 111111MAP-----get Google map's URL, use smart phone to open the URL link, get real address directly on mobile. 3)111111ADD-----get real address ( street name, city name )
4) Online website tracking by GPRS data network
To be alarm:
1) Movement alarm
2) Geo-fence alarm
3) Over-speed alarm
4) Power failure alarm and low power alarm
GT08 has Rechargeable 3.7V 500mAh Li-ion battery, If the car battery is cut off or low enough, the tracker will send alarm sms to warn you
5) Engine on alarm
In arming status, if the cars engine is ON, it will send out alarm SMS and call the preset phone.
6) Vibration Alarm
GT08 has built in motion sensor, In arming status, if the car is vibrated, it will send out alarm SMS. other functions for GT08 Vehicle GPS Tracker:
1) Friendly SMS operation commands & SMS contents in different languages (English, Chinese, Arabic, Portuguese, Spanish)
2) 3 types of power saving mode with minimum power consumption 6mA
3) 8Mb offline data logger, it can store 8192 waypoints
4) upgrade normal car alarm to GPS Alarm
5) Arm/disarm system by phone call besides by SMS; other tracker must send sms to Arm/disarm, which is not convenient
6) Stop the car by phone gradually for safety
7) Monitor the voice inside car to listen what's happening
8) Fuel monitoring ( optional, needs to connect optional fuel sensor )GPS Car Tracker
Define sms in different languages:

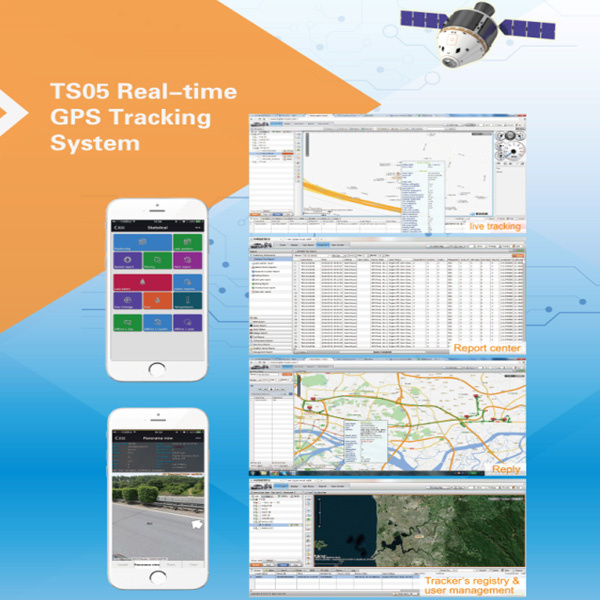

We offer free online tracking service for GPS Car Alarm

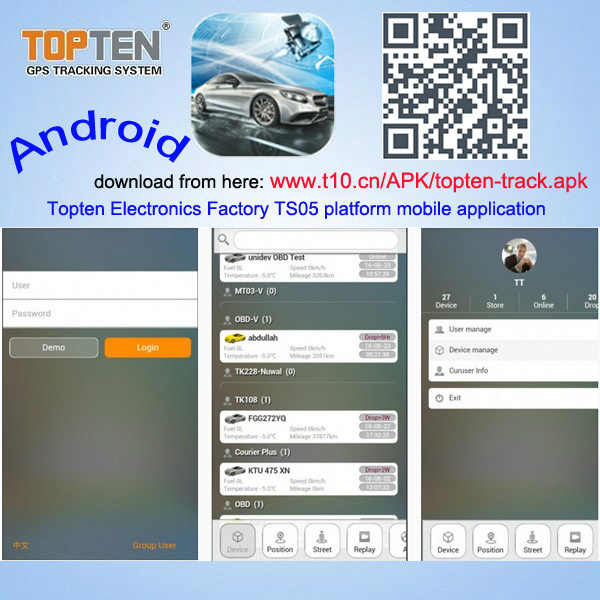

: Customers can enjoy a private account to log in to manage cars online: like track location, stop car, check history report, check fuel level consumption, Demo: www.topten-track.com username: 12345 password: 12345
| Working voltage | +6.0 ~+45VDC/2.0A |
| Working current | 50mA |
| Peak current | 800mA |
| Inside backup battery | Rechargable 3.7V 500mAh Li-ion battery |
| Size of the main unit | 99*50*17 mm |
| Weight of main unit | 70g |
| Working temprature | -20~85 celsius |
| Humidity | 0~95% |
| GSM frequency | GSM 850/900/1800/1900/2100 MHz |
| GPS chip | U-blox 7 chipset |
| Channel | 56 channels |
| Working frequencies | 1575.42Mhz C/A(GPS) |
| Receiving sensitivity | -160dBm |
| Positioning Accuracy | < =10m ( wide open area ) |
| Speed accuracy | ≤ 0.2M/S (wide-open area) |
| Positioning mode | Auto 2D/3D |
| hot start | 1 sec., average |
| warm start | 2 sec., average |
