| Prod Model: |
17AMI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Range: |
65-165c |
| Cut Off Current: |
3~30A |
| Time Delay: |
4~30s |
| Reset Temperature: |
10-45c |
| Life: |
100,000cycles |
| Special Feature: |
Temperature and Current Sensitive |
| Delivery Detail: |
7 to 20 Days |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
Electronic |
| Standard: |
TUV cUL UL RoHS |
Product Description

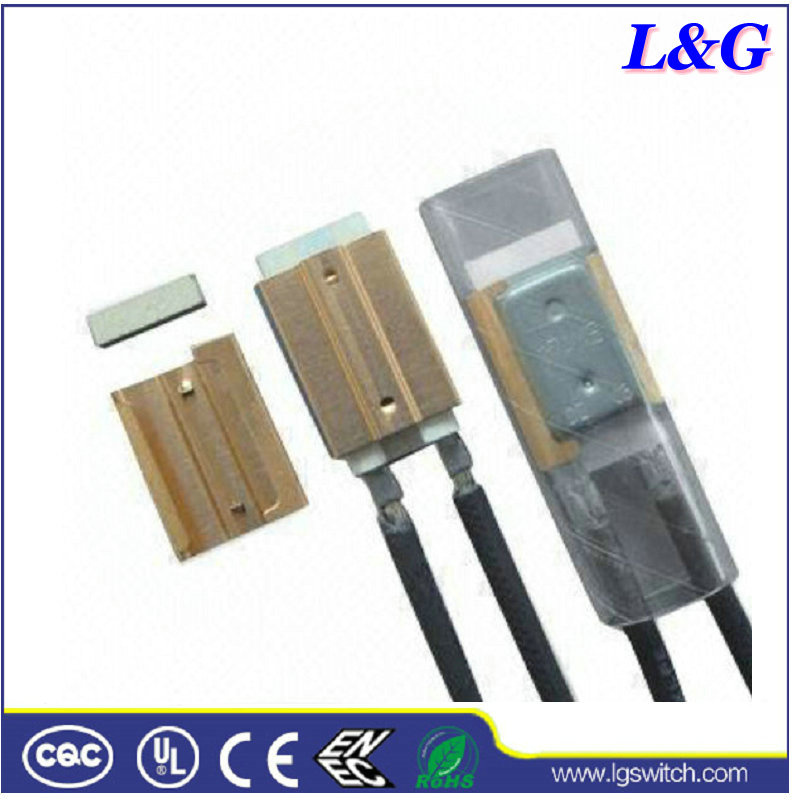

TS 16949 certified motor thermal protector manufacturer for automotive, window lift, wiper, juicer and blender
Motor overload and over-current bimetal Protector
Specifications
bimetal protector
1.temp:50~180C
2.current:15~30A
3.voltage:250/150VAC
4.tolerance: +/-5
Motor overload and over-current bimetal Protector
Specification:
1)High current:30A
2)Temp range:50-180C
3)High cycle life and reliability
4)Best price
Special Features:
1. Small Size
2. Temperature is 100% calibrated
3. Snap Action
4. Both temperature and current sensitive
5. Type and length of wires are optional
6. Terminals can be same or opposite end
7. 100% comply with RoHS.
Special Features of thermal protectors:
1. Terminals are optional and customizing
2. Wires are optional and customizing
3. Small size, long life and high reliability
4. Both temperature and current sensitive.
5. High quality level bimetal ensures that it can withstand the current of normal circuit.
6. The combination of bimetal and heater can action snappily.
7. Accurate trip off time can prevent motor from overheating or loading;
* Electrical Ratings of 6APE thermal protector:
Item | Votage | Current |
| 1 | 15VDC | 30A |
| 2 | 30VDC | 15A |
| Life cycles | 30,000 | 30,000 |
* Technical Parameters of thermal protectors:
Action temperature: | 50-180°C |
| Tolerance | ±5°C |
| Trip Off current: | 1.2-42 Amp |
| Trip Off time |
4~10S or customizing |
* Applications of thermal protectors:
1. Window lift motor, skylight motor, aerial motor, and wiper motor
2. Various engines, dc motors, juicer motors
3. Various washing machines, vacuum cleaners and gardening equipments
* Type Classification of thermal protector:
1. Type 2B: Automatic Control, micro-disconnection on operation, and, manufacturing deviation and drift of its operating value, operating time or operating sequence have been declared and tested.
2. Type 3C: for thermal motor protector only
* Crucial tests and relevant methods of thermal protector:
1. Electric strength: Test voltage 1250VAC 50HZ applied between insulation sleeve and live parts, and 500VAC applied between two opened contacts, for 1 minute, no flashover or breakdown.
2. Endurance test: Number of automatic cycles declared as 10,000 cycles, the test shall be carried out under 1.15 VR for 200 cycles, the balance 9800 cycles should be carried out under rated voltage
3. Moisture resistance test:
Humidity Treatment: Relative humidity(%): 91-95%; Temperature: (20-30+/-1) C degree
Keep samples under this environment for 48 hours. No damage so as to impair compliance with this standard.
4. Manufacturing deviation:
The appropriate operating value or operating sequence shall be recorded for each sample. No two samples shall differ from each other by an amount exceeding the declared manufacturing deviation.
Tolerance of trip-off temperature: +/-5K
The temperature of oven may be rapidly increased to 10K below the expected operating temperature. Rate of temperature change reduced to max 0.5K/min or as declared.
5. Synchorous test:
minutes continuous operation test, no flicking occurs.
Sample:
1. Free charge sample: Could provide(less than 10 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 50~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
|
