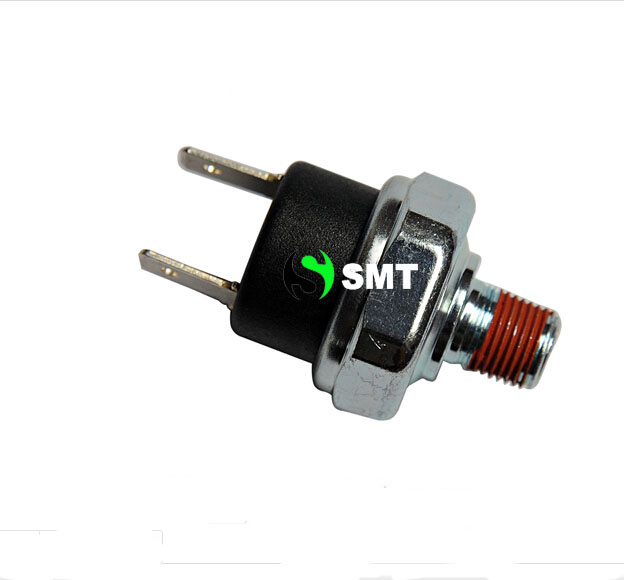

Auto Spare Parts Bus Electronic Air Pressure Sensor

Prod Model:	Auto Spare Parts Electronic Air Pressure Sensor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Automobile Sensor
Supply Voltage:	5+/-0.25VDC
Working Current:	Less Than 10mA
Output Voltage:	0.5-4.5VDC
Over Pressure Protection:	16VDC

Product Description

1. Technical features/Parameters
Electric characteristics:
Power supply voltage: 5 ± 0.25VDC
Working Current: ≤ 10mA
Output voltage: 0.5 ~ 4.5VDC,
Response time of pressure signal: ≤ 2.0ms
Overvoltage protection: 16VDC

2. Specification:
Power supply voltage: 4.75-5.25VCD
Supply Current: 10mA MAX
Working pressure: 0.1-3.2Mpa
Working temperature: -30-120 degree celsius
Output load: 51KΩ ,
Safe pressure: 5.88Mpa
Breaking pressure: 9.8Mpa
Output range: 10-90%Vcc
Tolerance: +/-3%Vcc

3. Special Point of LEILI:

Create your own brand logo
Strict quality control
On time delivery schedule

4. Our Service:

Reply your inquiry in 24 working hours
Customized design is available. OEM&ODM are welcome
Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff
Special disount are provided to our distributor.



Company frofile
Our company is specialized in manufactuing all kinds of valves,hydro-pneumatic components,alumium parts and plastic parts.Our main products are including pneumatic cylinder,solenoid valve,air filter,air regulator,air lubricator,pneumatic fitting,hydraulic fitting,tubes etc.as below;

           *ISO Standard Cylinder:DNC/SI(ISO6431&6432)
           *Standard Cylinder:SC/SU,
           *Mini Cylinder:MAL,MA,,MI,CJ2B,CDM2B
           *Compact Cylinder:SDA,CQ2
           *Cylinder:CU,TN,STM,MGP
           *Solenoid Valve:3v1,3v,4v,4M,3A,4A ,drain valve etc
           *Air Source Treatment Unit:A,HA,HNA,T,A/B,etc
           *pneumatic accessories:fitting,hand valve,muffler,tube,pressure switch
          *Pneumatic Vibrator: GT series,K seies,R series,SK series,FP series,NTP series etc.

NINGBO SMART PNEUMATICS' sprit:

we will give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System."
