| Prod Model: |
CNB-203E |
| Protection: |
Dust-Proof |
| Size: |
Small-Sized |
| Environment: |
≧250℃﹤400℃ |
| Pressing Type: |
Wireless Sensor Switch |
| Application: |
Automatic Door |
| Brand: |
Hf |
Product Description

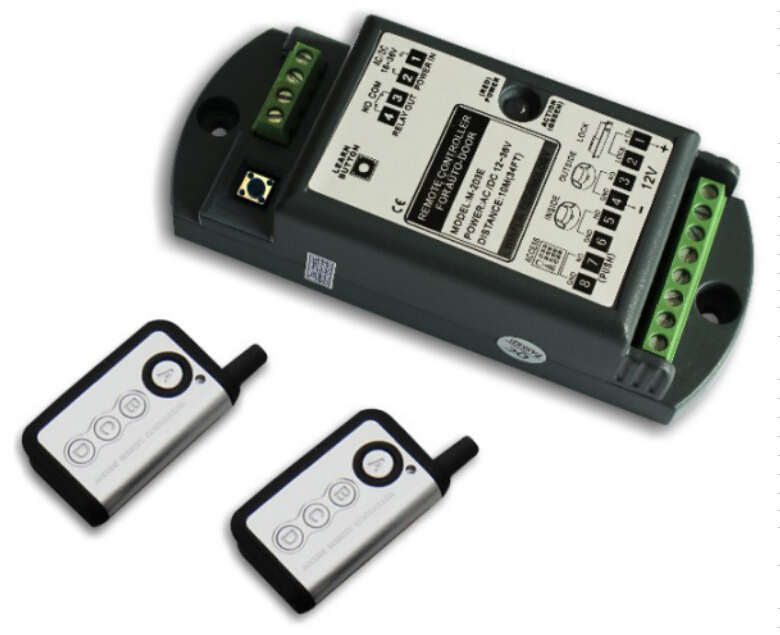

Autodoor remote controller (CNB-203E)Main Characteristic
High-current electric lock output module.
DC/AC 12V ~ 36V DC power input and convenient to take power from sliding door units .
Delicate shell design, easy-to-fixed, compact and small size.
Built-in surge absorber to prevent the return spark of electric lock.
Remote trnsmitter with 4 keys to carry out the 4 operations of autodoor.

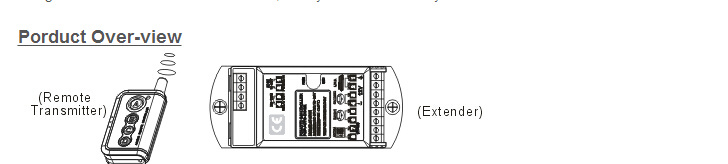

All induction gated signal unified into the Extender which outputs the signal to autodoor and electric locks. With time difference setting to ensure the autodoor runs automatically.
Using remote controller to switch function,validity action confirms by voice indicator.
This product is with the function of coding self-learn.Make sure the code of remote transmitter has been learned into the receiver before using (16 kinds of codes can be learned)
Operation way: Press the learned button,indicator turns green.Press any key of the remote transmitter. The transimitter has been learned by the receiver successfully with two flashes of green light appears.
Delete method: Press the learn button for 5S,green light flashing, all the codes has been deleted successfully( Can not delete one by one)
Press the remote control A key(Full lock): All probe and access controller are lose effectiveness. electric lock locked automatically. People inside and outside can not enter in.Be used for preventing thieves at night or on holidays periods.
Press the remote control B key(Unidirectional): External probe is lose effectiveness and electric lock locked automatically while external access controller and internal probe are available.Only insider can get in by swiping card. Internal probe is
effective,people can get out.Be used for clearing up a gathering place .
Press the remote control C key(Full open): All probe and access controller are lose effectiveness. Door keeps fully open. For emergency using.
Press the remote control D key(Bi-directional): Internal and external probes are effective . Working hours with normal business.
Technical Parameters
Power supply:AC/DC 12~36V
Current of electric lock:3A(12V)
Static Power:35mA
Action current:85mA(Non-current electric lock)
The interval time to open lock and auto-door:0.5s
Professional appliance: Built-in surge absorber
Transmitting and receiving method: Microwave level with a roller code
Remote control battery using life :≥18000 times
Working environment temperature:-42ºC~45ºC
Working environment humidity:10~90%RH
Appearance dimension:123(L)x50(W)x32(H)mm
The total weight:280g
| Description |
| Remote transmitter with 4 keys to carry out the 4 functions of the autodoor, including: unidirectional/full open/full lock/automatic function. |
| Power supply:AC/DC 12-36V unlock and door open time:0.8s |
| Installation:Surge absorber Maximun current for eletric lock:3A(12V) Weight:280g |
| Action current:85mA Dimension:123(L)*50(W)*32(H)mm |
| Featured with exquisite cover , compact size and easy to be fixed.With high-current of electric lock signal output . |
|
|
|
