| Prod Model: |
MBW |
| Characteristics: |
Continous Linear Voltage Adjustment |
| Characterized Voltage: |
Customizable |
| Input Voltage: |
380V/220V |
| Output Voltage: |
380V/220V |
| Dimension: |
360*175*300 |
| Weight(Kg): |
15.3 |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
JIW |
| Frequency: |
High Frequency |
| Size: |
Small/Large |
| Application Range: |
Hotel/School |
| Brand: |
Meze |
Product Description

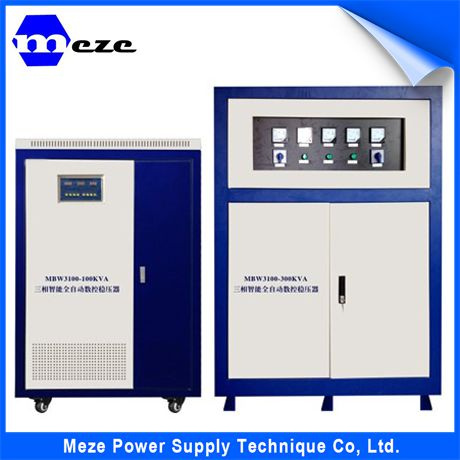

Automatic ac stabilizer avr voltage protector air regulator
| BW seriesTechnicaI parameters |
| ModeI | MBW3020 | MBW3030 | MBW3050 | MBW3100 | MBW3180 | MBW3225 | MBW3320 | MBW3400 | MBW3500 | MBW3600 | MBW3800 | MBW31000 |
| capacity | 20KVA | 30KVA | 50KVA | 100KVA | 180KVA | 225KVA | 320KVA | 400KVA | 500KVA | 600KVA | 800KVA | 1000KVA |
| impot voItage | phase voItage 220V±20%,Iine voItage380V±20% |
| phase | three phase+N+G |
| frequency | 50/60Hz |
| outpot voItage | 220V(phase voItage),380V(Iine voItage) |
| VoItage toI | 2--5% |
| Waveform distortion | non-Iack fideIity waveform |
| response time | ≤1.5s |
| efficiency | ≥95% |
| noise | ≤50db |
| protection | With over voItage,over current protection and mechanicaI faiIure protection |
| temperature | -10ºC-45ºC |
| humidity | 20% 80% |
| insuIation | ≥2MΩ |
| dieIectric strength | Power frequency sine voItage 1500 v for 1 minute without breakdown and fIashover phenomenon |
| overIoad capacity | 120% of the rated current to maintain time is more than 10 s |
| working | continuous working |
| Dimensen | 485x730x1130 | 570x810x1450 | 650x900x1680 | 745x1000x1800 | 900x1100x2150 | 900x900x1850 | 1000x1350x1850 |
| Weight(kg) | 115 | 125 | 165 | 270 | 400 | 520 | 700 | 950 | 1100 | 1300 | 1700 | 2300 |
Larger Capacity automatic Compensating AC Voltage-Stabilizing Power Supply:
Characteristics And Application Fields:
MBW series of products to overcome the traditional voltage regulator capacity
small, loss, waveform distortion such as faults, both traditional electronic ac type,
induction and magnetic saturation regulator, large capacity, high efficiency, no
waveform distortion, stable voltage regulation, easy in operation and maintenance,
highly reliable operation.
widely used in industrial and mining enterprises, oil fields, railways, construction
sites, schools, hospitals, post and telecommunicatio ns, hotel, scientific research, radio
and television, banking, securities and other departments of electronic, computer,
precision machine tools, computer tomography ( CT ) of photography, precision
instruments, test equipment, elevators, lighting, imported equipment and production
lines, such as need the power supply voltage stability, also adapted to the power supply
voltage is too low or too high, low volatility big distribution network at the end of the
user and the load change of power equipment, especially suitable for all places of high
voltage electricity to power grid waveform requirement.
Main Characteristics:
Load adaptability is strong, can work in all kinds of complicated conditions
Stable With overvoltage, undervoltage, over current, lack of phase protection function,
safe and reliable work
With functions of automatic detection diagnosis, when a hardware failure occurs, the
computer can automatically diagnose and emit light alarm signal
Output waveform is stable without distortion, additional distortion is less than 1%
With functions of automatic temperature control, when the isolation transformer coil
temperature more than + 70 ° C, the temperature controller will automatically start the
exhaust heat dissipation function
Running balance, load regulation and power regulation can be lower than 2%
With optional surge resistance: the line input configuration high-energy impact surge
suppressor, effectively solve the lightning induction, etc in 10 (including the s - 100
(including s pulse pea k voltage between fatal impact on the equipments
MZVC Series Product Characteristics And Application Fields
MZVC series high precision automatic ac regulated power supply using selected energy
saving ring transformer and first-class quality of integrated circuits and components for
production, with small volume, light weight, high efficiency and energy saving, no additional
output waveform distortion, stable and reliable performance, etc.
This series of products is mainly composed of contact type self coupling voltage regulator,
servo motor, automatic control circuit, etc.When grid voltage instability or load change,
automatic control circuit according to the change of output voltage to drive the servo motor,
adjust the contact from the carbon brush on the coupling voltage regulator, adjusted to make
the output voltage rating, reach steady state.
Areas of application: industrial and mining enterprises, hospitals, health, radio station,
hotel, scientific research institutes, computer network computer room and so on.
Load performance is good, suitable for impedance, capacitive and inductive load
Small volume, light weight, compact structure
Main characteristics:
Ring transformer structure, less leakage, low noise
USES the multi-layer structure of carbon brush, long service life, less maintenance workload
In phase with the input and output voltage, manual and automatic switching
Stepless voltage regulation, stable voltage output, does not produce waveform distortion
Can withstand the instantaneous overload shock, can work continuously for a long time
MZDC Series DC Voltage-stabilizing Power Supply:
Characteristics And Application Fields:
We also produce other series of regulated power supply.Such as,MZDC SERIES is Dc regulated power supply circuit for linear series adjustment type structure, with the advantages of high stability, low ripple voltage. Using voltage suspension type technology, Output voltage can be transferred to the rating from zero
volts, Output current can range from zero amps preset to the rating.
Adopt SCR or relay preliminary stability change on both ends of the voltage rectifier
bridge
Dual power supply, with functions of master-slave track series and parallel. when
cascade used, , The output voltage is equal to the double power source voltage, Increase
the load voltage, When using parallel output current is the sum of two lines of output
current Increase the load current
Main Characteristics:
Small volume, light weight, convenient adjustment, high precision, low ripple voltage,
output voltage and current are starting from zero, with functions of master-slave track.
1.The input voltage: 220V±15% 50±1Hz
2.The output voltage: Can be adjusted according to the demand o f 0 ~ maximum rating
3.Output current: Can be adjusted according to the demand of 0 ~ maximum rating
4.Effect of the power: 5x10 +10mv
5.Current effect: 5x10 +15mv
6.Ripple voltage: Vp-p 10mv
No-contact Voltage regulator power supply:
Characteristics And Application Fields:
MGW series product voltage using the induction voltage regulating principle, combined
with our company independent research and development of process technology and
structure design, using imported enameled wire and insulation material combination of a
new generation of pure linear non-contact voltage regulator, products with high efficiency,
strong ability to resist impact load, lossless device, long life and other advantages.
Areas of application: widely used in government agencies, research centres, embroidery,
textile, rail transportation, photoelectric display, printing and packaging, radio and television,
process control, military instrument control, financial securities, medical equipment, metal
processing, agricultural machinery, electric power department, office, computer network,
telecommunications, computer numerical control equipment, etc.
Main Characteristics:
1.LED display panel, the LCD panel can dynamically display system working condition
2.Domestic unique patented technology, one-piece precision transmission structure
3.Multi-layer circuit control architecture
4.Power cuts, soft start function calling back
5.Abnormal voltage stabilizing system self test
6.Continuous linear voltage adjustment, suitable for all kinds of bad environment
7.Full digital control technology
8.Main characteristics:
9.Product overview and application field
