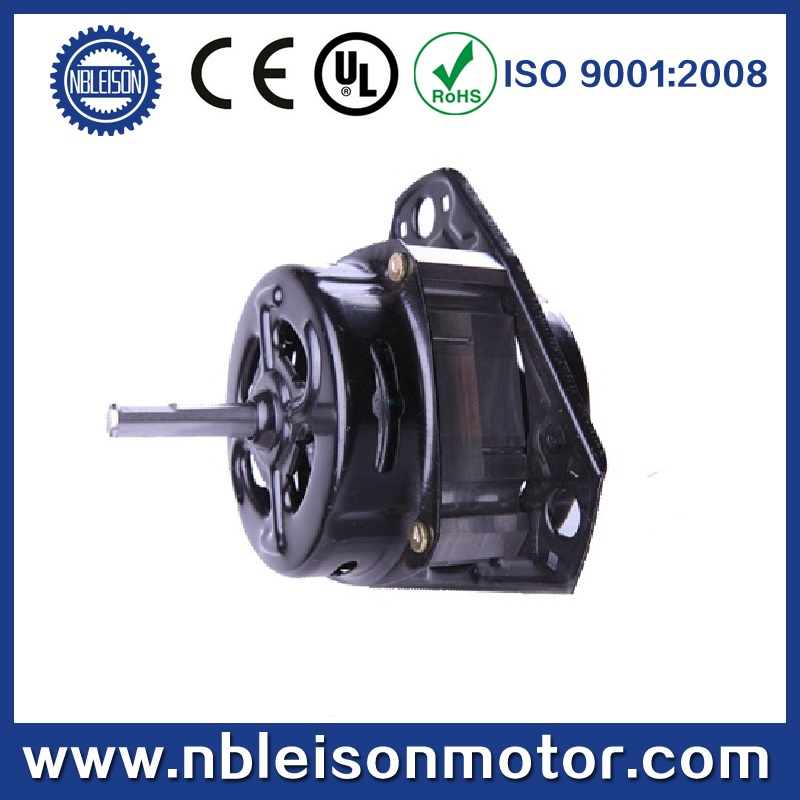

Automatic AC Washing Machine Motor (XD)

Name: Automatic AC Washing Machine Motor (XD)
Brand: all-electronics-online.com
SKU: 708778735
Availability: InStock
Rating: 4.3 (131 reviews)

Price:	US $ 6.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	110V, 220-240V
Power:	60-180W
Colour:	Yellow or Slivery
Certificate:	CE, CCC, Voc
Opition:	Voltage, Power, Shaft Can Be Customized
Function:	Driving
Number Of Stator:	Single-Phase

Product Description

Washing Machine Motor:

1) power: 60-180W
2) aluminum or copper wire
3) shaft 10mm or 12mm
4) delivery time from 20-30 days

Noted:

1. Motor can with aluminum wire or copper wire
2. The motors can be customized according to the different voltages, freqency speed, and shaft.

3. The price are only for reference, Please contact with me for more details.

Model	Voltage (V)	Power (W)	Start Torque (N.m)	Maximum Torque ( N.m)	Full Load Speed (r/min)	Start Current (A)	Capacitor ( μF )
XD-60	127V/60Hz	60	0.5	0.75	1600	2.5	25
XD-90	127V/60Hz	90	0.6	1.0	1600	3.0	25
XD-120	127V/60Hz	120	0.8	1.25	1600	4.5	30
XD-180	127V/60Hz	180	0.9	1.35	1600	6.5	40
XD-60	220V/60Hz	60	0.5	0.75	1600	1.5	12
XD-90	220V/60Hz	90	0.6	1.0	1600	1.6	12
XD-120	220V/60Hz	120	0.8	1.25	1600	2.5	12
XD-180	220V/60Hz	180	0.9	1.35	1600	3.5	18

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
