Automatic Door 24V DC Motor, BLDC Motor

Name: Automatic Door 24V DC Motor, BLDC Motor
Brand: all-electronics-online.com
SKU: 745900145
Availability: InStock
Rating: 4.4 (63 reviews)

Price:	US $ 37/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSDMJ-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Basic Specification:	DC24V, 60W, 2500rpm S1, B Class, IP20, IP40
Rated Torque Of Bare Motor:	318mn. M, 229mnm
No-Load Noise Of Whole Motor:	<50db, L=50cm
Ve:	AC66V, 1s, 5mA
Life:	2500h, 4000h
Gear Ratio:	8.5, 12.5, 13
Structure And Working Principle:	Brushless
Operating Speed:	High Speed
Application:	Power Tools
Brand:	GS
Certification:	CE UL UL RoHS

Product Description

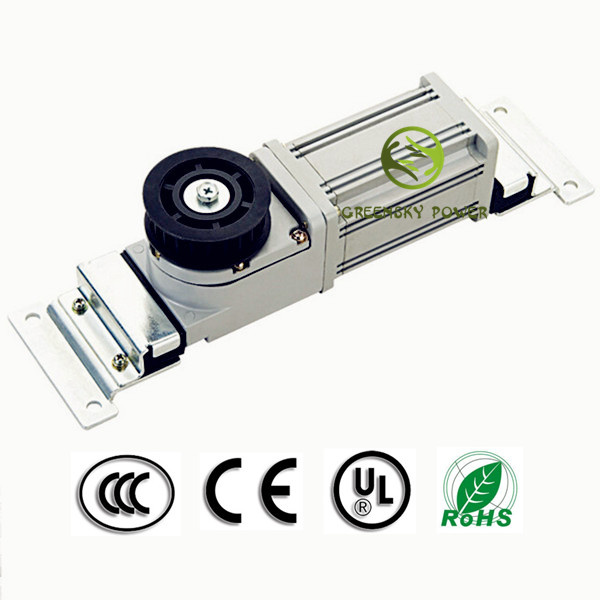

Brushless Electric Garage Open Door Motor

Introduction

This product adopted PMDC brush motor as the main part of rotor. It can be matched with computer system of control. It can realise self-supervise through matching with computer, and you can set the best working model.
Such asspeed, impetus, resistant power and so on. It has characters of low noise, small volume, light, long lift and wide use. Meanwhile, it can meet the customers'request of update.

Specifications

1. Basic specification: DC24V, 60W, 2500RPM S1, B CLASS, IP20, IP40
2. Rated torque of bare motor: 318mN. M, 229mNm
3. No-load noise of whole motor: <50dB, L=50cm
4. VE: AC66V, 1S, 5mA
5. Insulation resistance: >20MΩ 500V, >20MΩ 500V
6. Life: 2500H, 4000H
7. Ambient request: RoHS
8. Gear Ratio: 8.5, 12.5, 13

Greensky's advantage

On the site you can find a range of renewable products including ac/dc motor, ac induction motor, reversible motor, blake motor, speed motor, ac angel motor, gear motor, planetary gear box, worm gear box and their relevant components.

If you have any other questions, please feel free to contact us.

Mode	Voltage	Power	No-load Parameters		Load Parameters			Allowable Torque Gear Motor		Motor Weight
Mode	V	W	Speed r/min	Current A	Speed r/min	Torque mN. m	Current A	GK8.5 mN. m	GK13 mN. m	Kg
GSDMJ-1	24	60	2300	0.4Max	1800	318	4.0	1840	2650	1.2
GSDMJ-2	90	60	2300	0.3Max	1800	318	1.1	1840	2650	1.0
GSDMJ-3	24	60	3000	0.6Max	2500	229	4.0	1320	2000	1.2
GSDMJ-4	24	60	3000	0.6Max	2500	229	4.0	GX12.5/1950		1.0
