Product Description

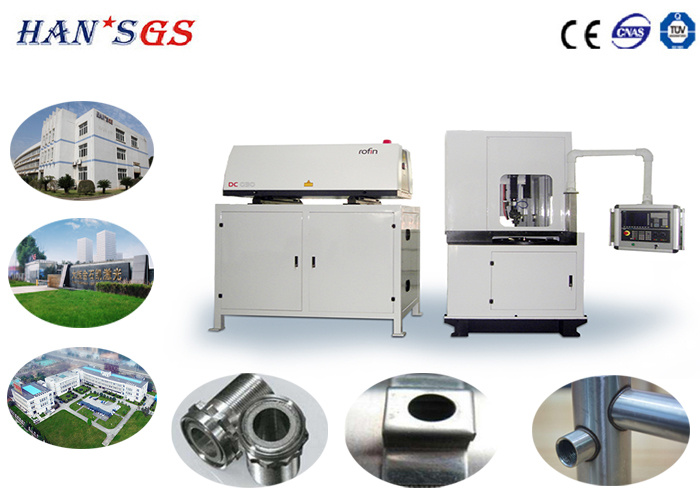

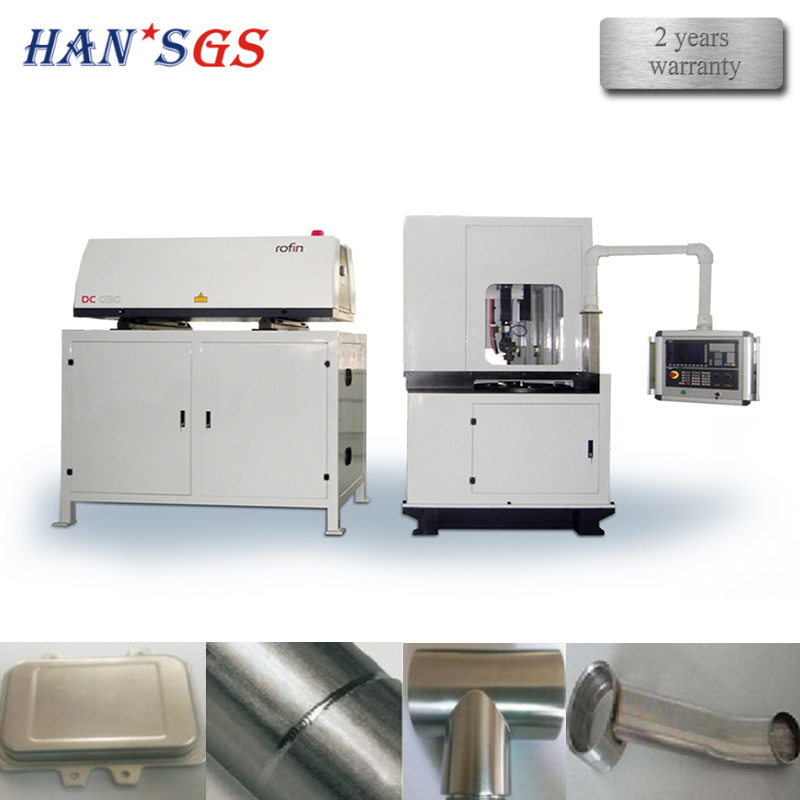

Automatic Laser Machines Stainless Steel Welding Machine
Description:
The application of laser welding in automobile manufacturing begins in the transmission gear welding, in the design and manufacture of auto transmission gear, in order to reduce the gear's weight, volume and machining difficulty, and to save raw materials, developed countries have processed gears or gear shafts in split-type instead of wholistic machining then weld the two parts together to be an integrated part.

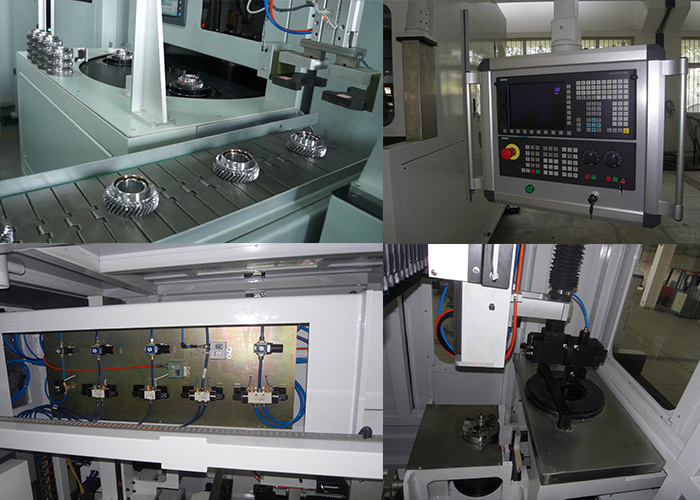

Porducts:
Specification :
Model | GS-HC03 |
Laser source | Rofin-DC030 (fiber/CO2) |
Output wave length | 10.6 um |
Output power range | 300 - 3000W |
Power stability | ±2% (long term) |
Diameter of laser beam | 20 - 25 mm |
Laser beam stability | ≤ 0.15 mrad |
Water chiller | LSJR-500BX chilling system |
rated refrigerating | 50kW |
CNC machine tool (X, Y, Z -axis) |
Location accuracy | ≥±0.02 mm |
Relocation accuracy | ≥±0.01 mm |
4-station and auto loading turn plate | 0.9 s/station |
Processing parameters |
Max. Welding depth | 5 mm |
Min. Welding width | 1 mm |
Welding speed | 1.5 - 3.0 m/min |
Processing size |
External diameter | Φ40 - Φ130 mm |
Internal diameter | Φ35 - Φ70 mm |
Thickness | 20 - 60 mm |
Max. Length of gear shaft | 350 mm |
Max. Diameter of gear shaft location | Φ35 mm |
Control system | SIEMENS 828D+auxiliary PLC |
Technical parameter of fiber laser welding
welding depth(mm) | 0.5 | 0.8 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 5 |
welding power(k w) | 0.5 | 0.5 | 1 | 1.5 | 2 | 2 | 2.5 | 3 | 2 | 2.5 | 3 | 2.5 | 3 | 3 |
welding speed(m/min) | 0.8 | 0.5 | 1.3 | 2.5 | 4.5 | 2 | 3 | 3.2 | 1.6 | 2 | 2.4 | 2 | 2.4 | 1 |
Note: After welding of stainless steel material ,welding seam the mechanics indexes are reaching or higher than the parent material properties, and the weld forming looks good, no macroscopic defects porosity, cracks appear |
Laser sourceHANSGS-DC030 laser welding & cutting equipment adopt Germany ROFIN DC030 laser, it is diffusion cooling slat type CO2 laser source and leading technology has reached the international most advanced level.
Laser welding applicationLaser welding is mainly used in automobile, tools, home appliance, steel industry and others, for example nest gear of transmission,flying wheel,airbag,rock arm,muffler, silicon oil shock absorber, hydraulic torque converter, wood saw blade, diamond saw blade, radiator of water.

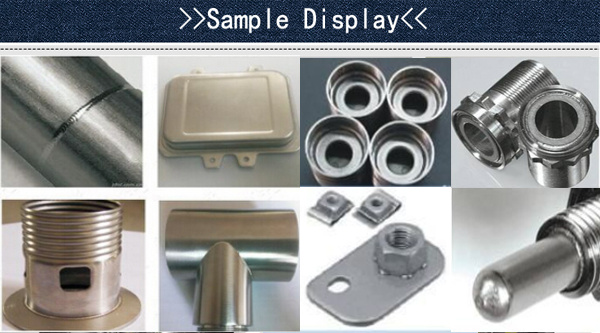

Cutting Sample
