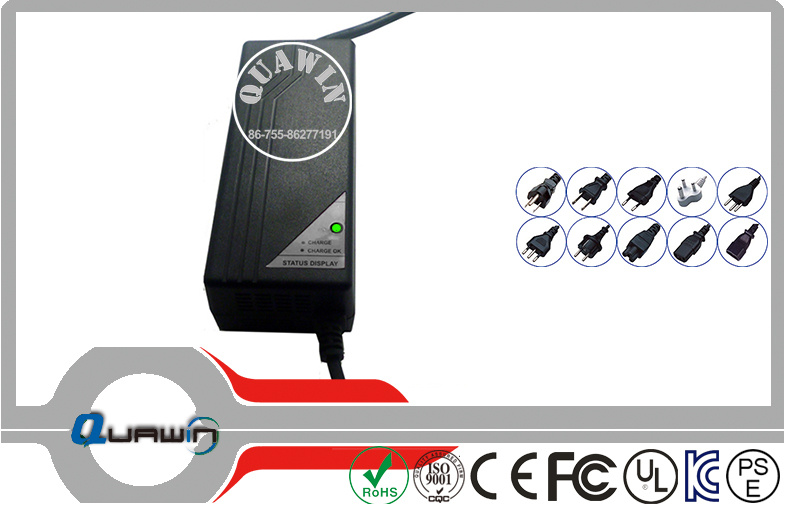

Automatic Lead Acid 12V Car Battery Charger

Name: Automatic Lead Acid 12V Car Battery Charger
Brand: all-electronics-online.com
SKU: 749372825
Availability: InStock
Rating: 4.4 (25 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW120-060-S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	500g
Dimension:	150X60X45mm
Desktop Type:	Yes
Delivery Date:	15days
Warranty:	One Year
Type:	Lead-Acid Battery Charger
Charging Type:	Electric Charger

Product Description

Automatic lead acid 12v car battery charger

Lead Acid Battery Charger 12V 6A DataSheet

No.	Volts	Constant Voltage			Constant Current	Float Current (Lead Acid Only)	Cut-Off Current		Dimenson (mm)
No.	Volts	Lead Acid	Lithium Ion	Lifepo4	Max(A)	Float Current (Lead Acid Only)	Lead Acid	Li	Dimenson (mm)
1	12V	14.7V	16.8V	14.6V	6A	13.8V	1.2A	0.3A	135x90x50
2	24V	29.4V	29.4V	29.2V	3A	27.6V	0.6A	0.15A
3	36V	44.1V	42V	43.8V	2.5A	41.4V	0.5A	0.12A
4	48V	58.8V	54.6V	58.4V	2A	55.2V	0.4A	0.1A
Features	1	Full automatic transition of CC, CV and Float/cut-off
	2	Precise limit of voltage & current, guarantee fully charged and avoid over charge
	3	Protections: over current, over voltage, short circuit and reverse polarity
	4	Reliability:mean time between failures 30,000 power-on-hours or greater
	5	Two LED indicators, Aluminium, elegant and reliable
	6	CE & ROHS Certified, Safety and High Quality
Note: Voltages and Currents can be customized by Customers' requirement.

Features:

    1.short-circuit protection,charger o/p current automatically when short-circuit.
  2.overload protection:charger o/p current limited automatically when overload.
  3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.
  4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.
  5.Reliable, elegant,Small size, light,
  6.charging state:two LED display.
  7.all kinds of production has passed the CE certification.
  8.Efficiency: ≥85 %( full capacity)

Operate Condition:

    1.Temperature: -10~45 Degree
  2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)
3.Life Expectancy: 50,000H at 25 Degree

Apply to:

    1. Electrical bicycle
2. Electrical scooter

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
