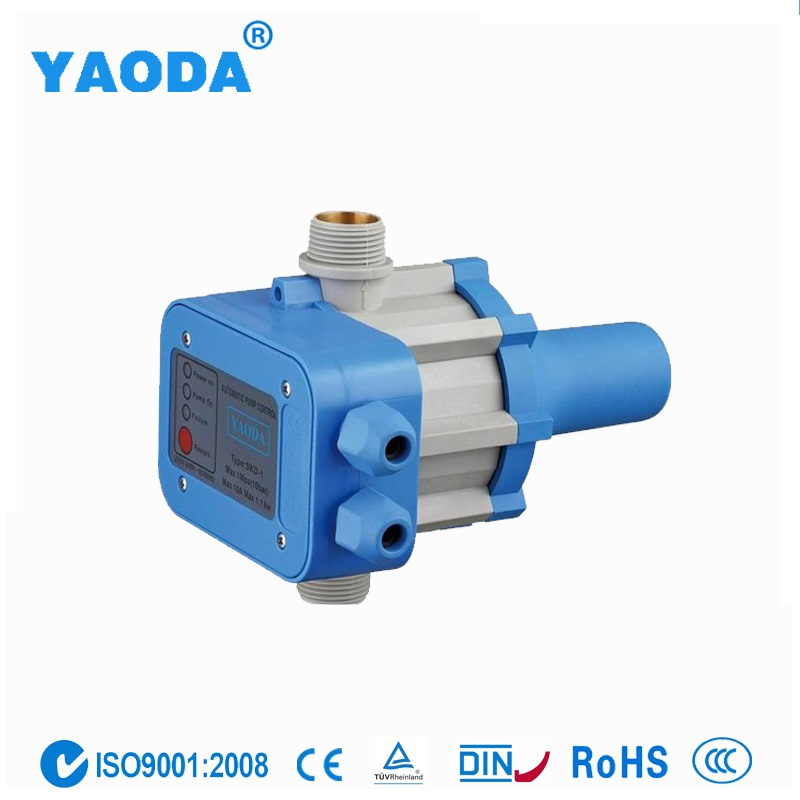

Automatic Pressure Control for Water Pump (SKD-1)
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SKD-1 |
| Rated Voltage: |
110-115V; 220-240V |
| Current: |
16(8)a |
| Frequency: |
50/60Hz |
| Connector: |
G1" |
| Max Pressure: |
10bar |
| Starting Pressure: |
1.5bar or 2.2bar for Choice |
| Type: |
Electronic |
| Application: |
Industrial |
| Explosion-proof Type: |
Flameproof |
| Contact: |
Normally Open |
| Brand: |
Yaoda |
Product Description
Pressure control
Descriptions:
1.Rated Voltage:110V/230V
2.Max. Current: 16(8)A
3.Frequency: 60HZ/50HZ
4.Max. Power: 1.1KW
5.Joint Screw:G1"
6.Starting Pressure to choose:1.5bar/2.2bar
7.Max Working Pressure: 10bar
8.Protection Grade: IP65
9.Max Operating Temperature: 60
10.Application:Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump
Function:
1. Used for drinking water or non-potable water piping systems.
2. It starts the pump automatically when pressure decrease(taps opening)and stops it when there is no flow(taps closing).
3. Replaced by traditional system with five ways connector, pressure switch, pressure tank and Valves etc.
Stop the pump automatically when water shortage.
OPTIONALS:
1. Color of product appearance
2. Power cable or motor cable can be equipped according to customers' requirement.
3. R1''Plastic Quick Connector

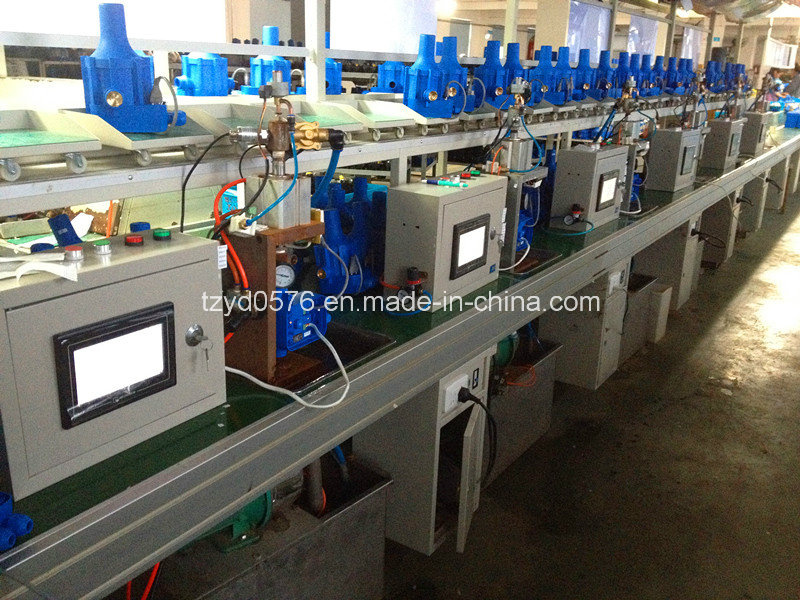

Production and test:
| Descriptions: |
|
| Rated Voltage | 110V/230V |
| Max. Current | 10(6)A |
| Frequency | 60HZ/50HZ |
| Max. Power | 1.1KW/2.2KW |
| Joint Screw | G1" |
| Starting Pressure | 1.5bar/2.2bar |
| Max Working Pressure | 10bar |
| Protection Grade | IP65 |
| Max Operating Temperature | 60 degree |
| Application | Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump |
|
| Function: |
| 1. Start and stop the pump automatically |
| 2. Protect the pump from damage caused by dry-running |
FAQ of Automatic pressure control: 1.Are you a manufacturer or a trading company?
A: We are a professional automatic pressure control manufacturer with over 20 years' experience.
2.What's your payment terms?
A: T/T, L/C is also acceptable.
3.What's your MOQ?
A: Trial order is OK.
4.What's your delivery time?
A: Finish the production within 30 days once we receive the advance.
5.What's your warranty for automatic pressure controller?
A:1 year warranty for pressure controller
6.Can we make the products with OEM?
A: Yes, of course. We can do oem for you.
7. Do you have any other pump accessories?
A: Yes, we are the manufacturer of pressure tank for water pump. Its capacity range is 1L-300L.
ZHEJIANG YAODA INTELLIGENT SCI-TECH Co., Ltd is a national high-tech enterprise engaged in R&D, design, manufacturer, sales and service of all series pump controller, tanks and progressive die areas. YAODA is the first listed company in Chinese pressure controller industry.
We have more than 200 staffs, 50 of them are the core technical staffs. It has advanced production equipments, high-quality management personnel, professional production teams. We created Zhejiang provincial R&D center, with various professional test equipments. The comprehensive development capacity reaches the highest level in the same field. We have passed the certificates: ISO9001: 2008, TUV, CE, PED, RoHS, EU and CCC.
We sell the products to over 100 countries and regions, such as Europe, Southeast Asia, Middle-East, Australia, South America and Africa countries, etc. Our main products are automatic pressure controller, frequency inverter, pressure switch, float switch, pressure tank, expansion tank for heating system, progressive die, which play a crucial role in water pump system, air compressor system, heating system, mould industry, etc. We supply the products to LEO pumps, SHIMGE pumps, SANYU pumps, JUNHE pumps, LX pumps, TAIFU pumps, etc.
With the several subsidiary companies- TAIZHOU MEITAI IMPORT & EXPORT Co., Ltd, TAIZHOU TASLEEN PRECISE DIE Co., Ltd, YAODA possesses a solid foundation to be a world-class pump auto-controller specialist and system solution provider.
With more than 20 years' professional experience and enterprise spirit "Quality, Technology, Profession, Service", we will provide personalize service to make the best water control system for your efficient life.
