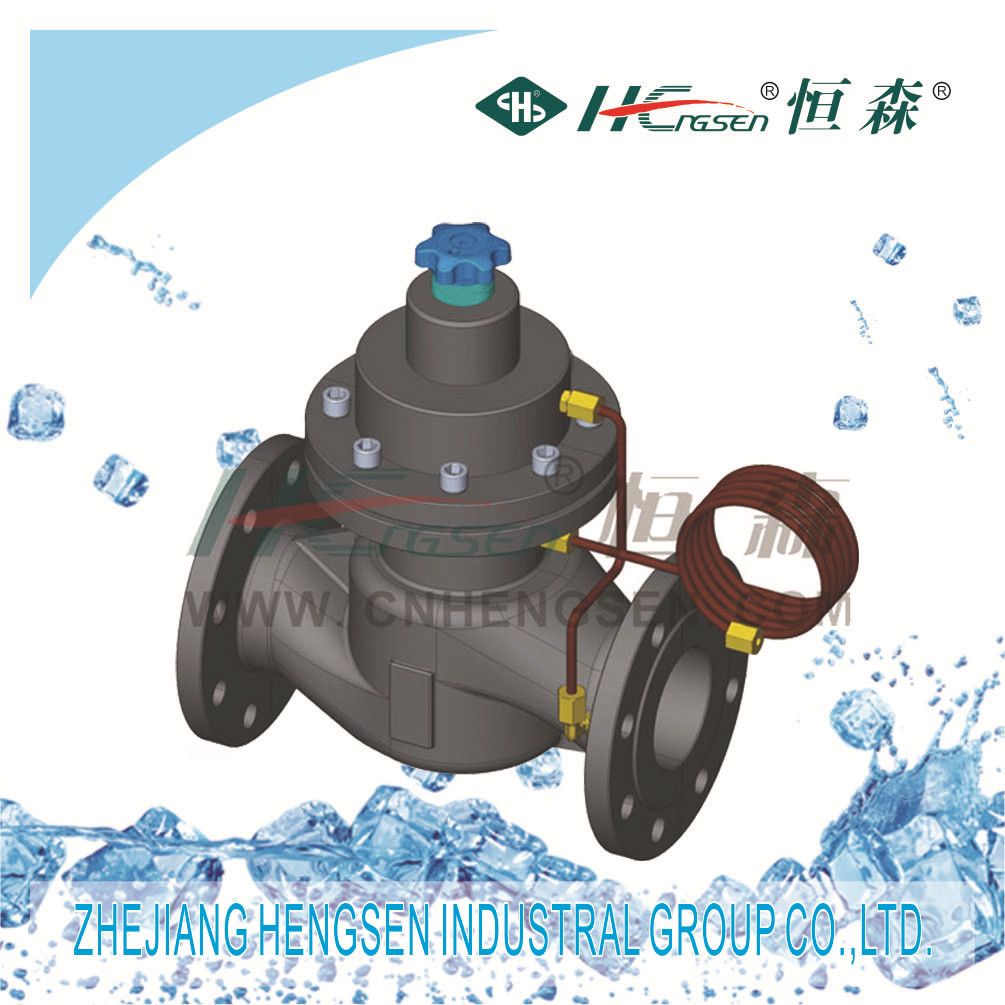

Automatic Pressure Difference Controller

Name: Automatic Pressure Difference Controller
Brand: all-electronics-online.com
SKU: 703470782
Availability: InStock
Rating: 4.7 (90 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZYF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Water
Working Temperature:	0~150
Type:	Electronic
Application:	Vehicles

Product Description

Product introduction
ZYF series automatic pressure difference controller is available for district heating and air-conditioning water system's control valve. It is suitable for variable flow system. This controller can control the two ends pressure difference of supply and return water pipe or regulating valve. Pressure range is 0.02-0.09MPa, rated pressure is PN 16. It should be installed on the return water pipe.

Feature
Double oriented regulating valve, and percentage adjustment.
Automatic pressure difference control.
Less noise.
No need of maintenance for annular seal rings.
Pressure range is 0.02-0.09MPa. (Spring A: 0.02-0.05MPa. Spring B: 0.06-0.09MPa. )
Double sleeve structure of optimized flux.
PN16 cast steel valve.

Technical data
Medium: Water
PH: 4-9.5
Working temperature: Max. 130º C
Working pressure: Max. 1.6MPa

Material
Valve body: Cast steel
Sleeve, automatic valve clack, guiding cover: Brass.
Valve stem: Steel parts.
Diaphragm: EPDM
Annular seal rings, soft seal: EPDM
Spring: Stainless steel

Type	Caliber	Size (mm)					Weight (Kg)	Connection way
Type	Caliber	H	L	ΦD	ΦK	N×Φd	Weight (Kg)	Connection way
ZYF-40	DN40	280	210	150	110	4×18	10	Flange
ZYF-50	DN50	370	230	165	125	4×18	13	Flange
ZYF-65	DN65	424	290	185	145	4×18	21	Flange
ZYF-80	DN80	420	310	200	160	8×18	28	Flange
ZYF-100	DN100	450	350	220	180	8×18	43	Flange
ZYF-125	DN125	480	400	250	210	8×18	83	Flange
ZYF-150	DN150	510	480	285	240	8×22	95	Flange
